陶瓷电容的基本电气特性

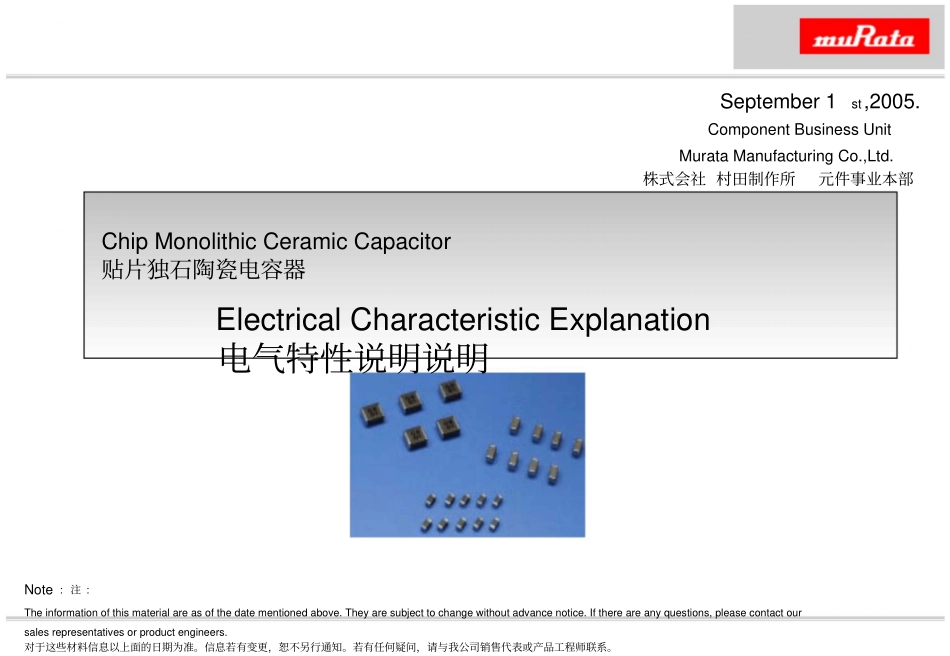

陶瓷电容的基本电气特性_第1页
1/27

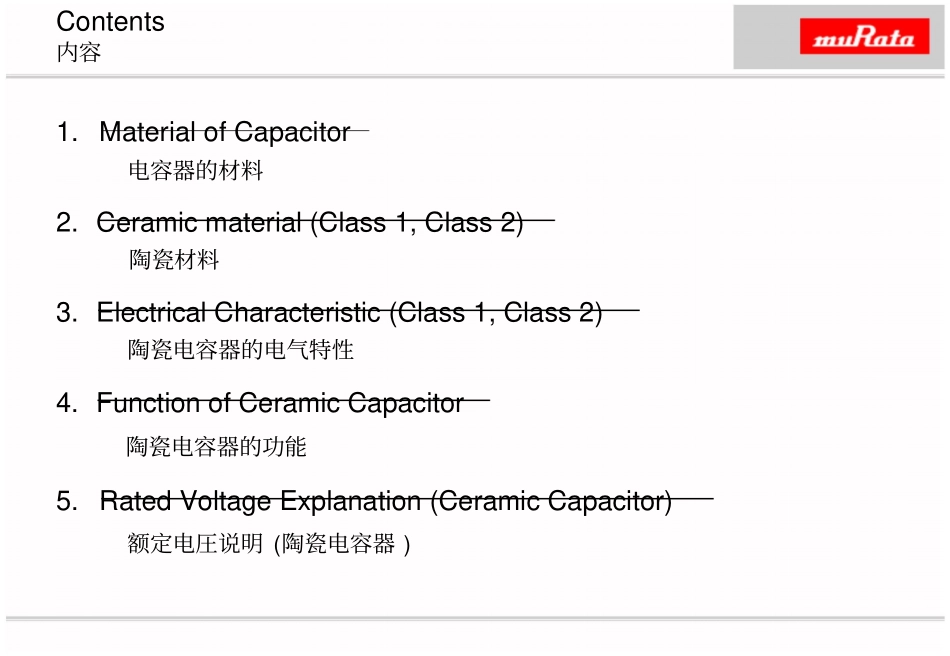

陶瓷电容的基本电气特性_第2页
2/27
陶瓷电容的基本电气特性_第3页
3/27
September 1st,2005. Component Business Unit Murata Manufacturing Co.,Ltd. 株式会社 村田制作所元件事业本部Chip Monolithic Ceramic Capacitor 贴片独石陶瓷电容器Electrical Characteristic Explanation 电气特性说明说明Note : 注 : The information of this material are as of the date mentioned above. They are subject to change without advance notice. If there are any questions, please contact our sales representatives or product engineers. 对于这些材料信息以上面的日期为准。信息若有变更,恕不另行通知。若有任何疑问,请与我公司销售代表或产品工程师联系。Contents 内容1. Material of Capacitor 电容器的材料2. Ceramic material (Class 1, Class 2) 陶瓷材料3. Electrical Characteristic (Class 1, Class 2) 陶瓷电容器的电气特性4. Function of Ceramic Capacitor 陶瓷电容器的功能5. Rated Voltage Explanation (Ceramic Capacitor) 额定电圧说明 (陶瓷电容器 )Material of Capacitor电容器的材料Film 薄膜Using plastic film as the dielectric , thin metal film metal as inner electrodes , stacked and rolled up together. Non polarized organic film capacitor. Fixed Ceramic 陶瓷Using Ceramic as the dielectric , metal baked with ceramic as inner electrodes , non-polarized and non-organic capacitors. Capacitor Aluminum 铝Using high purity conductive material as positive electrodes , oxidized layers on the electrodes , either liquid or solid electrolyte contacting oxidized layers as the negative electrodes. 固定电容器Glass 玻璃Using glass film or glass powder as the dielectric , metallic foil or metallic paste as electrodes. Mica 云母Using natural Mica as the dielectric , metallic foil as inner electrodes. Electrolytic Double Layer Impregnated collecting electrode with liquid electrolyte , divided into positive / negative / by a porous separator as polarized capacitors. 双倍电解层Capacitance Range ...
