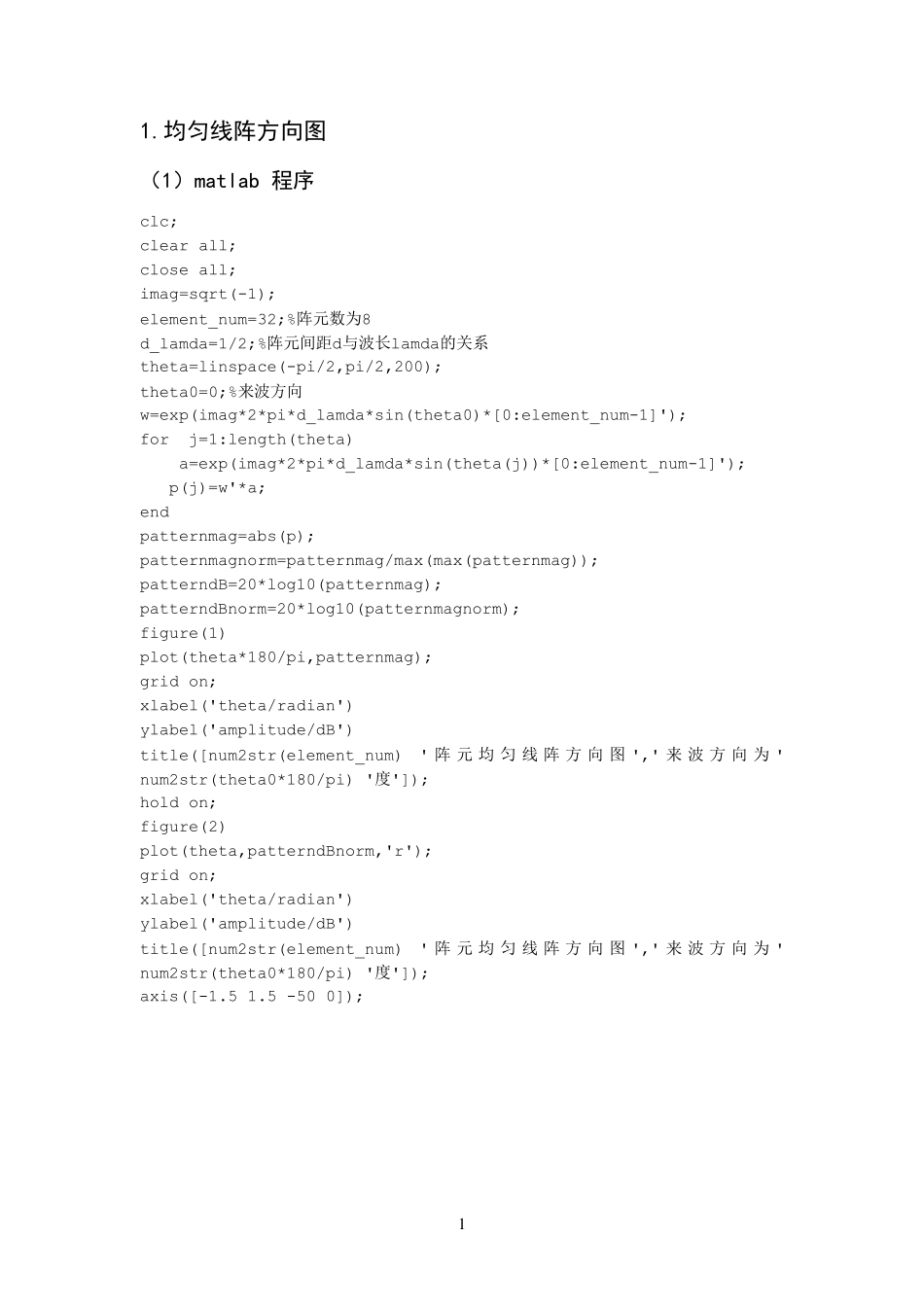

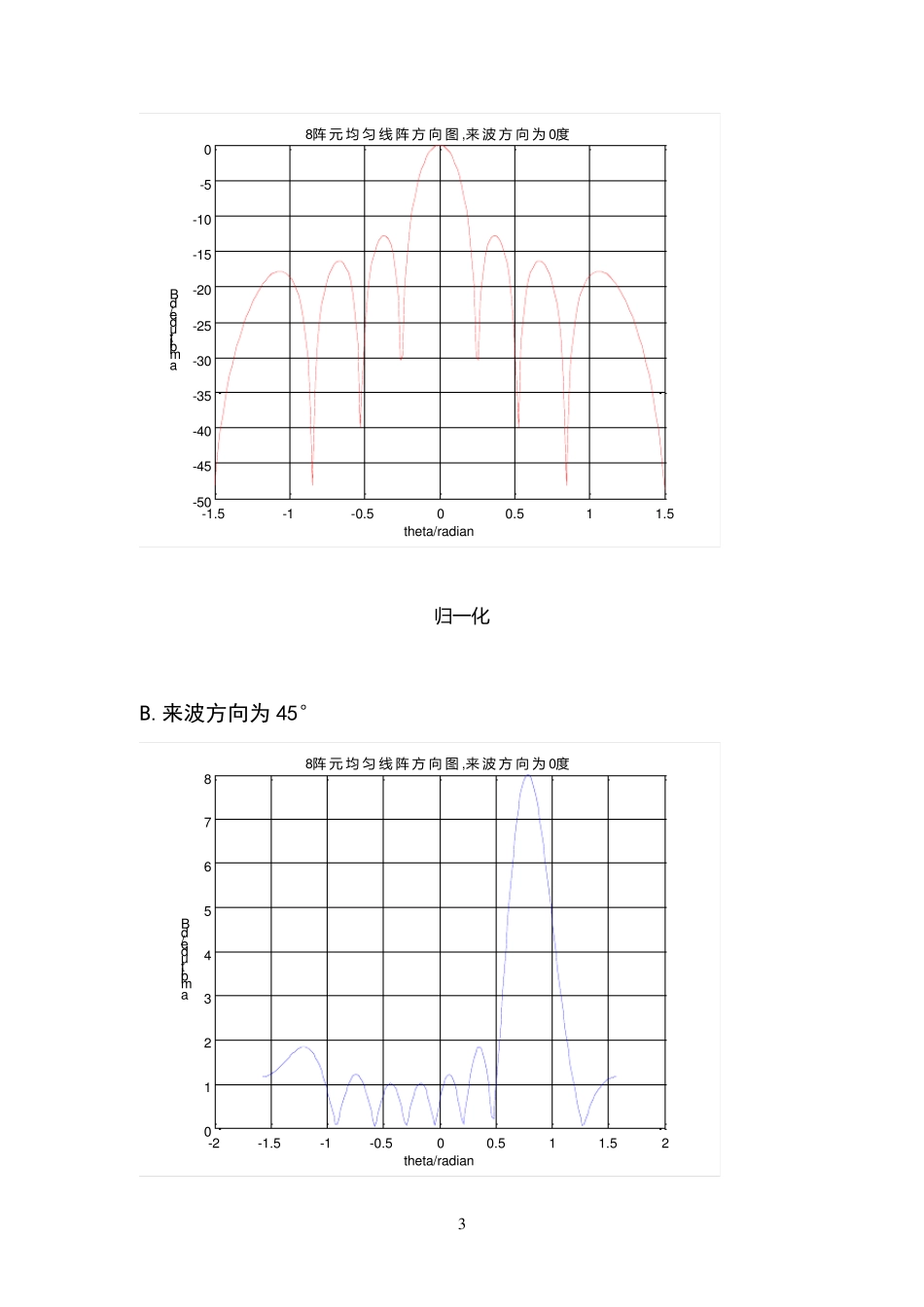

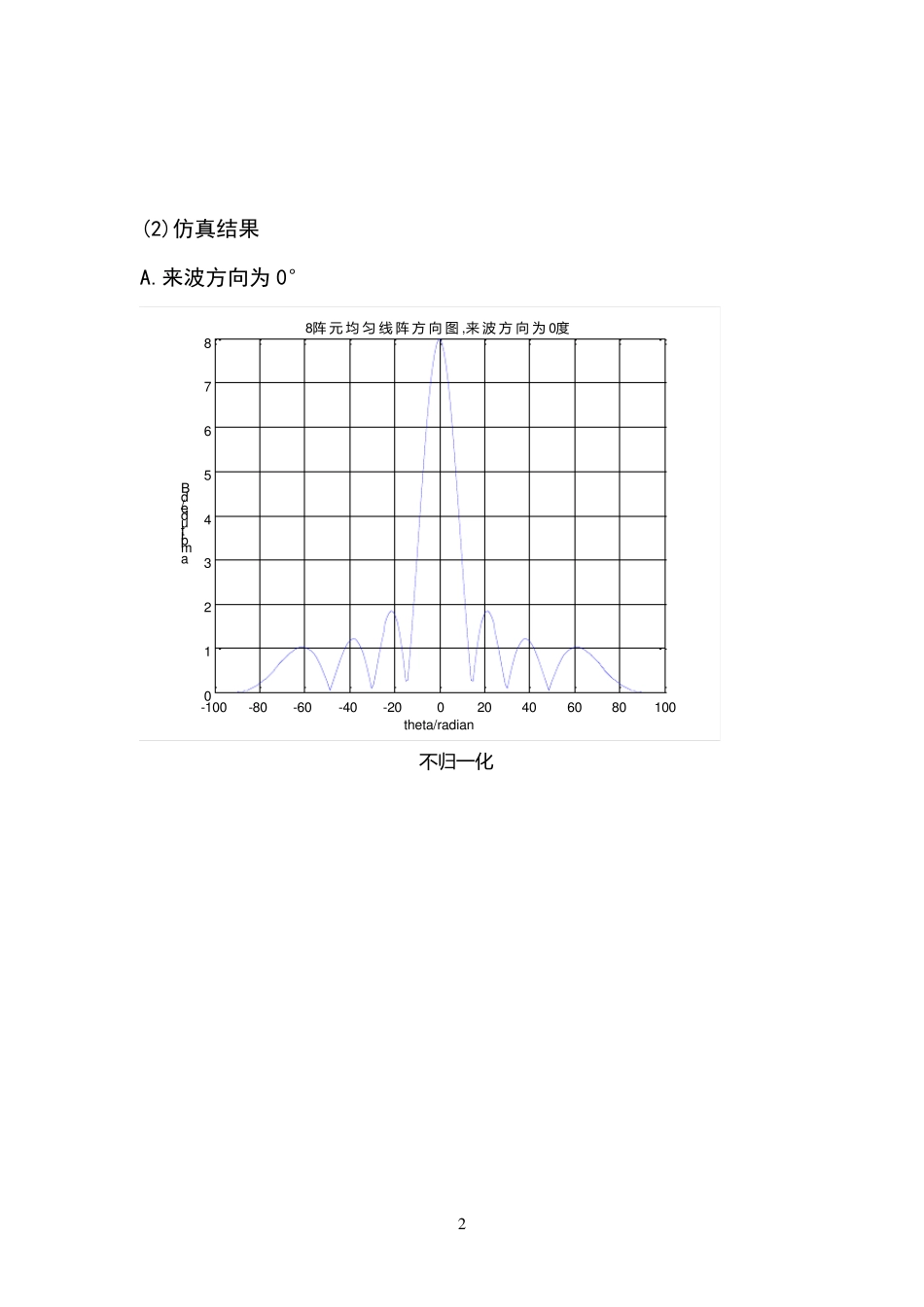

1 1.均匀线阵方向图 (1)matlab 程序 clc; clear all; close all; imag=sqrt(-1); element_num=32;%阵元数为8 d_lamda=1/2;%阵元间距d与波长lamda的关系 theta=linspace(-pi/2,pi/2,200); theta0=0;%来波方向 w=exp(imag*2*pi*d_lamda*sin(theta0)*[0:element_num-1]'); for j=1:length(theta) a=exp(imag*2*pi*d_lamda*sin(theta(j))*[0:element_num-1]'); p(j)=w'*a; end patternmag=abs(p); patternmagnorm=patternmag/max(max(patternmag)); patterndB=20*log10(patternmag); patterndBnorm=20*log10(patternmagnorm); figure(1) plot(theta*180/pi,patternmag); grid on; xlabel('theta/radian') ylabel('amplitude/dB') title([num2str(element_num) ' 阵元均 匀 线 阵方 向 图 ',' 来 波 方 向 为' num2str(theta0*180/pi) '度']); hold on; figure(2) plot(theta,patterndBnorm,'r'); grid on; xlabel('theta/radian') ylabel('amplitude/dB') title([num2str(element_num) ' 阵元均 匀 线 阵方 向 图 ',' 来 波 方 向 为' num2str(theta0*180/pi) '度']); axis([-1.5 1.5 -50 0]); 2 (2)仿真结果 A.来波方向为0° -100-80-60-40-20020406080100012345678theta/radianamplitude/dB8阵 元 均 匀 线 阵 方 向 图 ,来 波 方 向 为 0度 不 归 一化 3 -1.5-1-0.500.511.5-50-45-40-35-30-25-20-15-10-50theta/radianamplitude/dB8阵 元 均 匀 线 阵 方 向 图 ,来 波 方 向 为 0度 归 一化 B.来波方向为45° -2-1.5-1-0.500.511.52012345678theta/radianamplitude/dB8阵 元 均 匀 线 阵 方 向 图 ,来 波 方 向 为 0度 4 不 归 一化 -1.5-1-0.500.511.5-50-45-40-35-30-25-20-15-10-50theta/radianamplitude/dB8阵 元 均 匀 线 阵 方 向 图 ,来 波 方 向 为 0度 归 一化 C.随着阵元数的增加,波束宽度变窄,分辨力提高,仿真图如下: 5 -100-80-60-40-2002040608010005101520253035theta/radianamplitude/dB32阵 元 均 匀 线 阵 方 向 图 来 波 方 向 为 0度 非 归 一化 -1.5-1-0.500.511.5-50-45-40-35-30-25-20-15-10-50theta/radianamplitude/dB32阵 元 均 匀 线 阵 方 向 图 来 波 方 向 为 0度 归 一化 6 -100-80-60-40-20020406080100051...
