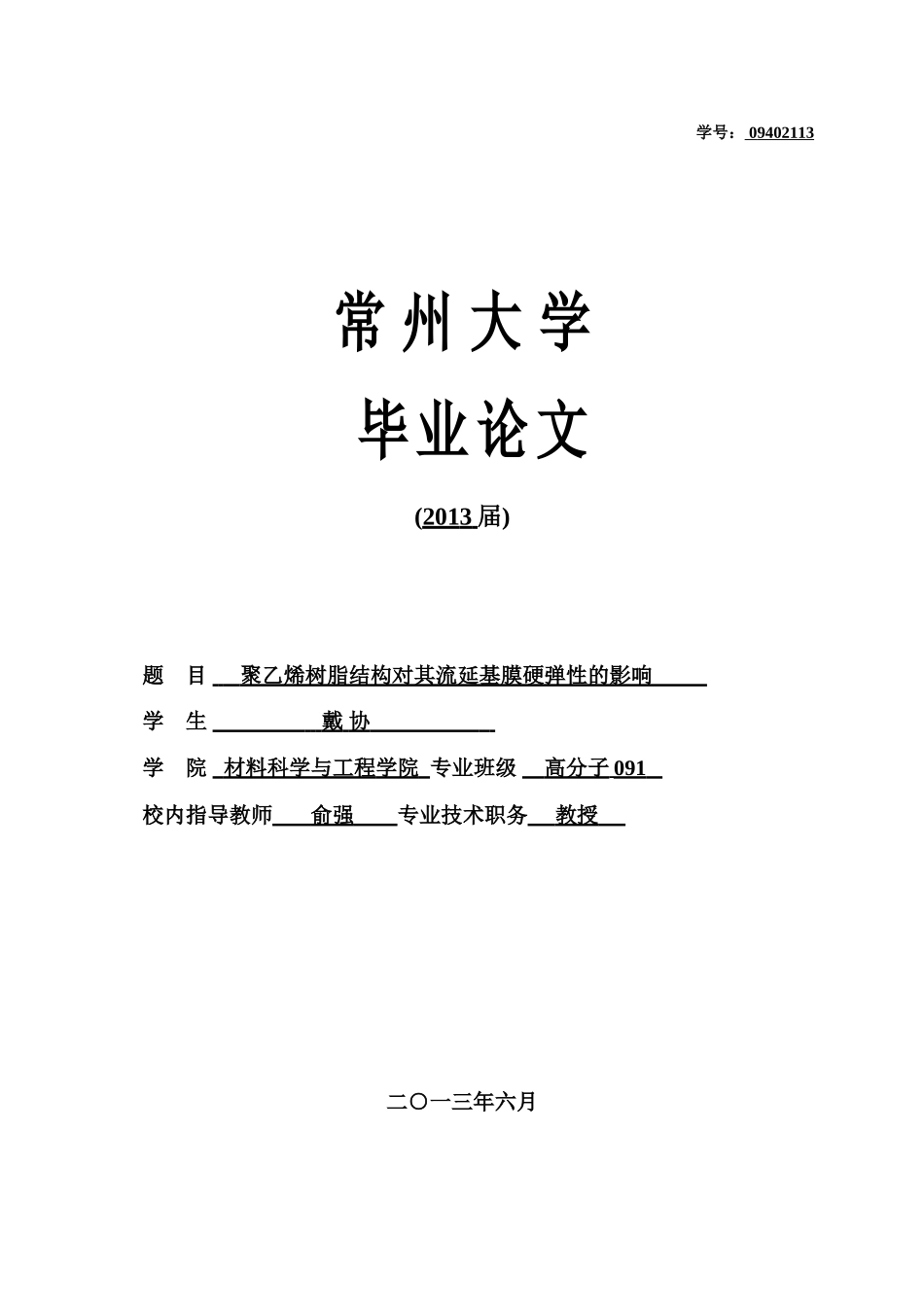

学号：09402113常州大学毕业论文(2013届)题目聚乙烯树脂结构对其流延基膜硬弹性的影响学生戴协学院材料科学与工程学院专业班级高分子091校内指导教师俞强专业技术职务教授二○一三年六月聚乙烯树脂结构对其流延基膜硬弹性的影响摘要：单向拉伸工艺是制备聚乙烯微孔膜的主要方法，制备具有硬弹性结构的基膜材料是单向拉伸工艺制备微孔膜的关键步骤。其中树脂结构对流延基膜的硬弹性具有重要影响。本文围绕聚乙烯树脂结构对基膜硬弹性行为的影响展开研究。我们分别考察了不同分子量大小、不同结晶行为和不同支链结构对PE流延基膜硬弹性的影响。结果发现，高分子量的HDPE在流延过程中容易形成较多的结晶成核点，在流延辊上冷却结晶时更容易形成串行排列的片晶结构，具有更好的硬弹性。HDPE基膜原料的结晶行为有所差异导致在一定牵伸比下制得的基膜的硬弹性也有所不同，并且树脂的结晶性能越好，相应制得基膜的硬弹性也越好。在HDPE中添加LDPE后，基膜晶区取向程度有所提高，但结晶度、片晶厚度均有下降，导致了PE基膜硬弹性的下降，但力学性能有所增加。在HDPE中添加LLDPE后，虽然结晶度、片晶厚度下降了，但是硬弹性几乎不变，力学性能也有所增加。当基膜经过热处理之后，基膜晶区的取向程度和结晶度都明显增加，其硬弹性结构表现得更为完善，使基膜沿纵向的拉伸强度、弹性模量和屈服应力得到一定程度的提高，并且弹性回复率也相应的提高了。但是热处理前后分子量、长链支化和短链支化对基膜硬弹性结构的影响趋势没有发生改变。关键词：聚乙烯流延膜；硬弹性；链结构；结晶行为InfluenceofPolyethyleneResinStructuresonHardElasticBehaviorofTheirCastFilmsAbstract:Uniaxialstretchingprocessisoneofthemainmethodsofpreparingpolypropylenemicroporousmembranes.Preparingcastfilmswithhardelasticbehavioriskeytoobtainmicroporousmembranesbyuniaxialstretchingprocess.Andpolyethyleneresinstructureshavegreatinfluenceonhardelasticstructuresandpropertiesoftheircastfilms.ThispaperwasmainlyabouttherelationshipbetweendifferentPEresinchainstructuresandhardelasticbehavioroftheircorrespondingcastfilms.Theinfluenceofdifferentmolecularweights,crystallizationbehaviorandbranchedchainstructuresonhardelasticbehaviorofPEcastfilmswasinvestigated.ItwasfoundthatPEresinswithhighmolecularweighthadmorenucleatingsitesandrow-nucleatedlamellarcrystallizationwhenbeingcastintofilms,anditresultedinbetterhardelasticproperties.Inacertaindrawratio,resinswithdifferentcrystallizationbehaviorleadedtodifferenthardelasticbehavior,andthosewithbettercrystallizationproperties,correspondingcastfilmshadbetterhardelasticbehavior.AddingLDPEtoHDPEresin,thecrystalorientationofcastfilmswasimprovedwhilethecrystallinityandlamellaethicknessdecreased.Thisreducedthehardelasticpropertiesofcastfilms,buttheirmechanicalpropertiesenhanced.AddingLLDPEtoHDPEresin,althoughthecrystalorientationandcrystallinityofcastfilmsdecreased,thehardelasticpropertiesoffilmswerestillunchangedandtheirmechanicalpropertieswentup.Byannealing,crystalorientationandcrystallinityincastfilmswasincreasedsothatfilmsbyannealinghadamoreperfecthardelasticstructure.ThetensilestrengthalongtheMD,modulusofelasticity,yieldstressandelasticrecoveryhadbeenimprovedduetotheperfectionofhard-elasticstructure,butthedataofelongationatbreaktendedtogodown.Keywords：Polyethylenecastfilms；Hardelastic；Chainstructure；Crystallizationbehavior目录摘要...........................................................................................................................................IAbstract............................................................................................................................
