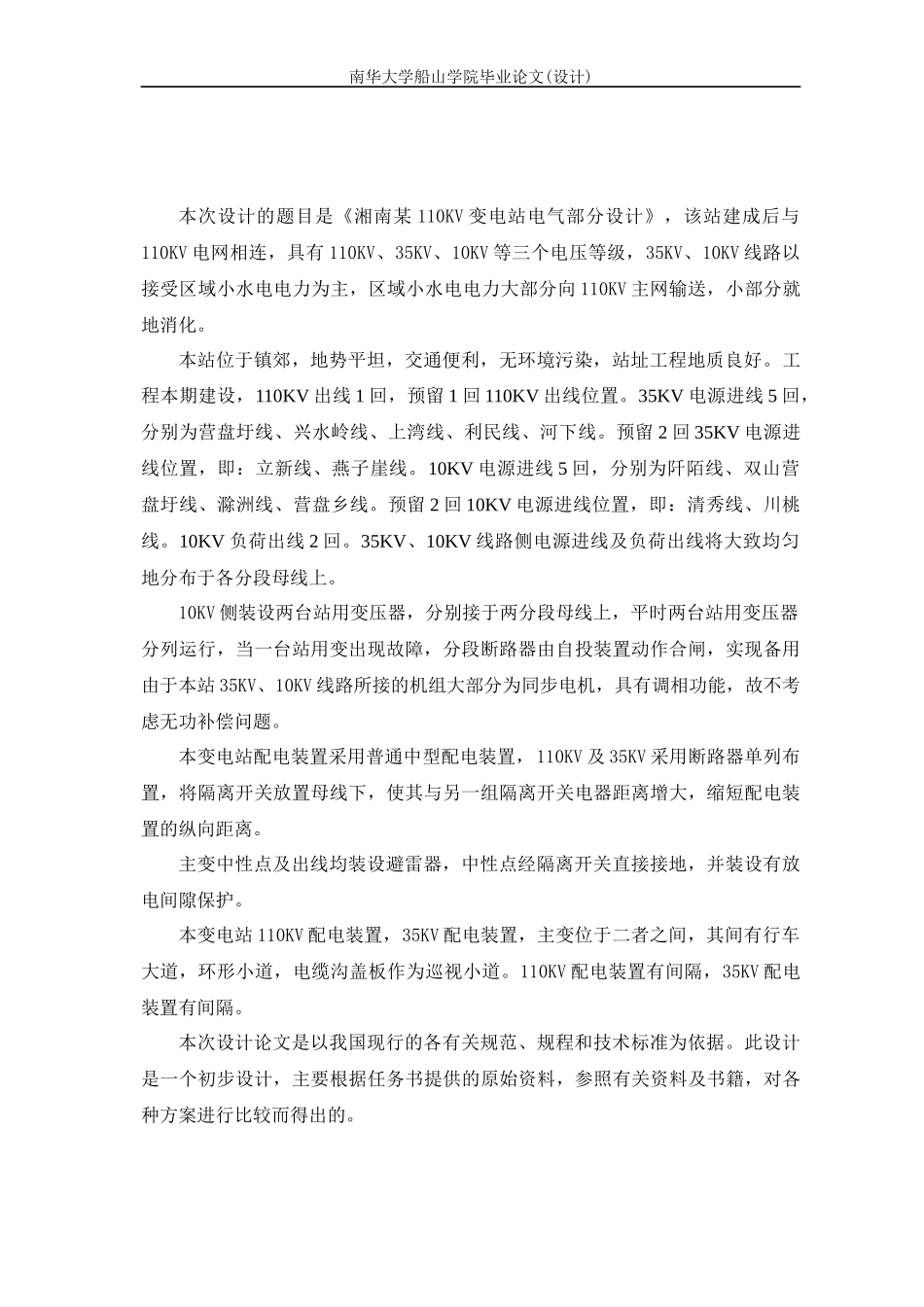

南华大学船山学院毕业论文(设计)目录1变压器设计................................................................................................21.1概述.....................................................................................................................21.2主变压器的选择.................................................................................................21.3所用变压器的选择.............................................................................................62电气主接线设计........................................................................................82.1电气主接线设计的基本要求.............................................................................82.2各电压等级主接线型式选择.............................................................................82.3110KV主接线形式设计.....................................................................................92.435KV主接线形式设计....................................................................................102.510KV主接线形式设计....................................................................................123短路电流计算..........................................................................................143.1短路电流计算的意义.......................................................................................143.2短路电流计算的一般规定...............................................................................143.3短路电流计算方法...........................................................................................153.4线路阻抗计算...................................................................................................153.5变压器阻抗计算...............................................................................................163.6系统网络图.......................................................................................................174电气设备的选择......................................................................................264.1导体和电气设备选择的一般条件...................................................................264.2一般原则...........................................................................................................264.3技术条件...........................................................................................................264.4环境条件...........................................................................................................27南华大学船山学院毕业论文(设计)4.5断路器的选择...................................................................................................284.6隔离开关的选择...............................................................................................324.7高压熔断器的选择...........................................................................................344.8互感器的选择...................................................................................................354.9母线的选择.......................................................................................................394.1010KV进线回路开关柜的选择......................................................................404.1110KV出线回路开关柜的选择.......................................................................435高压配电装置......................................
