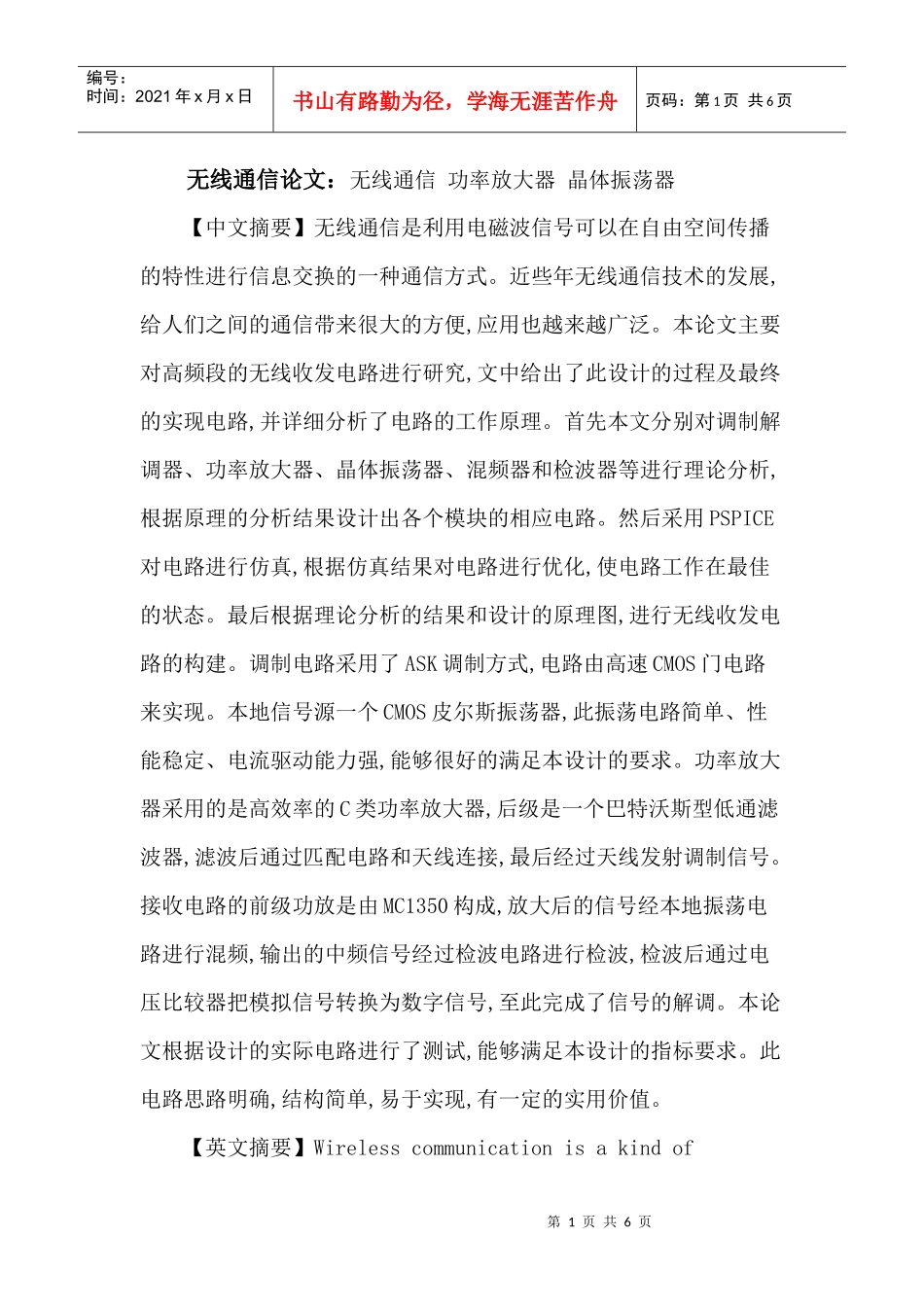

第1页共6页编号:时间:2021年x月x日书山有路勤为径,学海无涯苦作舟页码:第1页共6页无线通信论文:无线通信功率放大器晶体振荡器【中文摘要】无线通信是利用电磁波信号可以在自由空间传播的特性进行信息交换的一种通信方式。近些年无线通信技术的发展,给人们之间的通信带来很大的方便,应用也越来越广泛。本论文主要对高频段的无线收发电路进行研究,文中给出了此设计的过程及最终的实现电路,并详细分析了电路的工作原理。首先本文分别对调制解调器、功率放大器、晶体振荡器、混频器和检波器等进行理论分析,根据原理的分析结果设计出各个模块的相应电路。然后采用PSPICE对电路进行仿真,根据仿真结果对电路进行优化,使电路工作在最佳的状态。最后根据理论分析的结果和设计的原理图,进行无线收发电路的构建。调制电路采用了ASK调制方式,电路由高速CMOS门电路来实现。本地信号源一个CMOS皮尔斯振荡器,此振荡电路简单、性能稳定、电流驱动能力强,能够很好的满足本设计的要求。功率放大器采用的是高效率的C类功率放大器,后级是一个巴特沃斯型低通滤波器,滤波后通过匹配电路和天线连接,最后经过天线发射调制信号。接收电路的前级功放是由MC1350构成,放大后的信号经本地振荡电路进行混频,输出的中频信号经过检波电路进行检波,检波后通过电压比较器把模拟信号转换为数字信号,至此完成了信号的解调。本论文根据设计的实际电路进行了测试,能够满足本设计的指标要求。此电路思路明确,结构简单,易于实现,有一定的实用价值。【英文摘要】Wirelesscommunicationisakindof第2页共6页第1页共6页编号:时间:2021年x月x日书山有路勤为径,学海无涯苦作舟页码:第2页共6页communicationmannerwhichcanexchangeinformationusingelectromagneticwavesthatpropagateinfreespace.Inrecentyears,thedevelopmentofthewirelesscommunicationtechnologyhasmadethecorrespondenceamongpeoplebecomemoreconvenient,anditsapplicationismoreandmorewidely.Inthisthesis,astudyisperformedabouttheHighfrequencywirelesstransceiver,hasproducedthisdesigndetailedprocessandthefinalrealizationelectriccircuit,andtheelectriccircuitprincipleofworkisdeeplystudied.Firstofall,thispapergivesatheoreticalanalysisofthemodem,poweramplifier,crystaloscillator,mixersanddetectorsanddesignsthecorrespondingcircuitofeachmodulebasedontheresultsofanalysisofprinciples.ThenPSPICEisusedtosimulatethecircuittooptimizethecircuit,accordingtotheresultsofsimulationmakethecircuitworkinthebestcondition.Finally,ahardwarecircuitisfabricatedbytheresultsoftheoreticalanalysisanddesignedschematics.ThetheoryofASKisusedinthemodulationsystem,andthecircuitisrealizedbythehighspeedCMOSgate.ACMOSPierceoscillatorcircuitisusedforitsexcellent第3页共6页第2页共6页编号:时间:2021年x月x日书山有路勤为径,学海无涯苦作舟页码:第3页共6页frequencystability,simpledesign,andhighdrivelevel,whichmeetstherequirementsofdesign.AhighefficiencyClassCamplifierisusedindesign.ThelatterclassisaButterworthlow-passfilterwhichconnectstheantennathroughthematchingcircuitafterfilteringandfinallylaunchesthroughtheantenna.PREAMPisconstitutedbyMC1350andtheamplifiedsignalismixedbythelocaloscillatorcircuit.TheoutputoftheIFsignalisdetectedthroughthedetectorcircuitandthentransformtheimitativesignalsintodigitalsignalsthroughavoltagecomparatorafterdetecting,thuscompletedthesignaldemodulation.Thedesignedelectriccircuitistested,andtheresultcansatisfythedesignspecification.Thiselectriccircuitmentalityisclear,simple,easytorealizealsohasacertainusefulvalue.【关键词】无线通信功率放大器晶体振荡器滤波器PSPICE【英文关键词】WirelessCommunicationAmplifierCrystalOscillatorFilterPSPICE【目录】高频无线收发电路的研究与设计摘要4-5Abstract5第1章绪论10-131.1....
