基于组态软件的牵引变电所自动化监控软件设计VIP专享VIP免费

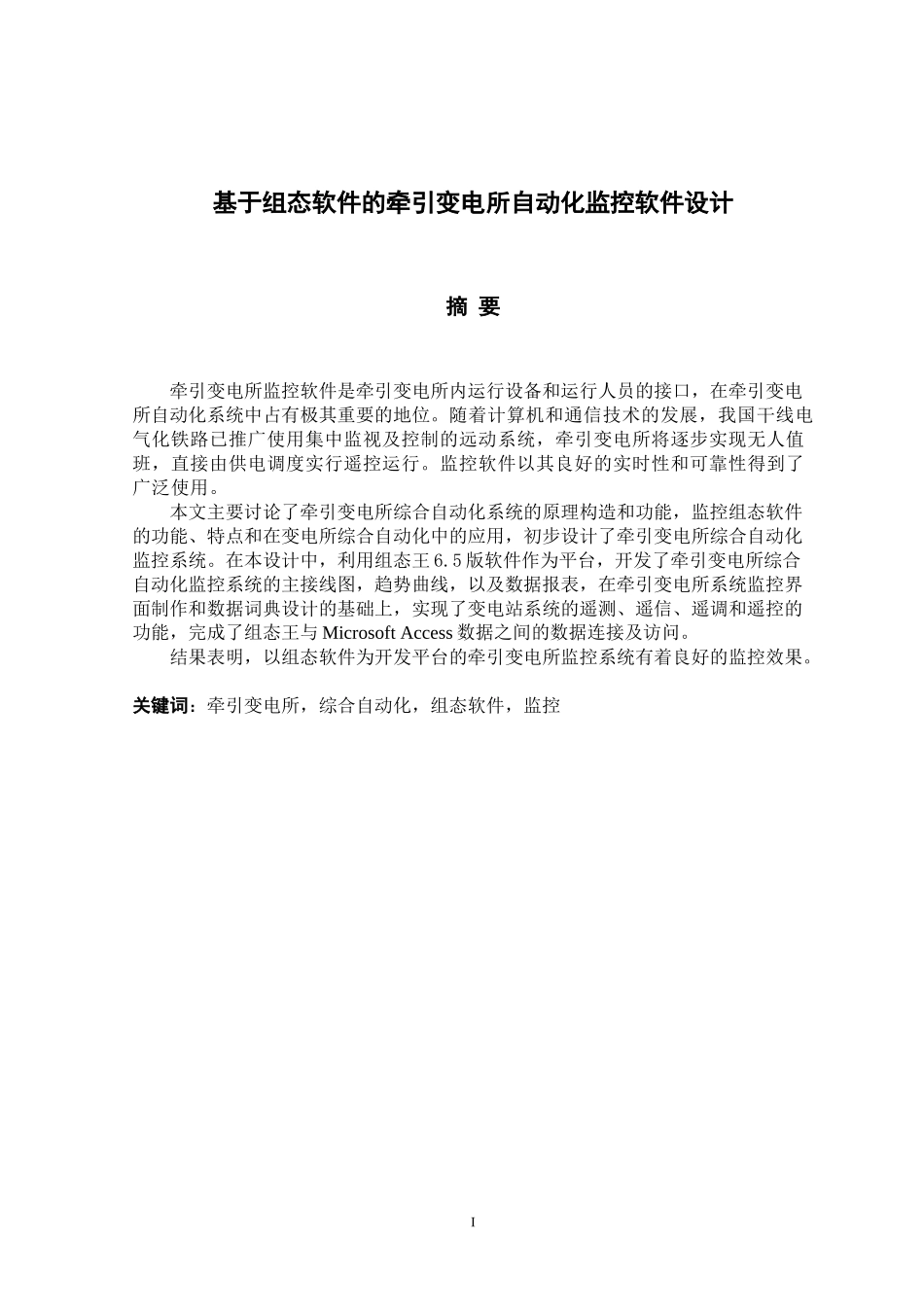

基于组态软件的牵引变电所自动化监控软件设计摘要牵引变电所监控软件是牵引变电所内运行设备和运行人员的接口，在牵引变电所自动化系统中占有极其重要的地位。随着计算机和通信技术的发展，我国干线电气化铁路已推广使用集中监视及控制的远动系统，牵引变电所将逐步实现无人值班，直接由供电调度实行遥控运行。监控软件以其良好的实时性和可靠性得到了广泛使用。本文主要讨论了牵引变电所综合自动化系统的原理构造和功能，监控组态软件的功能、特点和在变电所综合自动化中的应用，初步设计了牵引变电所综合自动化监控系统。在本设计中，利用组态王6.5版软件作为平台，开发了牵引变电所综合自动化监控系统的主接线图，趋势曲线，以及数据报表，在牵引变电所系统监控界面制作和数据词典设计的基础上，实现了变电站系统的遥测、遥信、遥调和遥控的功能，完成了组态王与MicrosoftAccess数据之间的数据连接及访问。结果表明，以组态软件为开发平台的牵引变电所监控系统有着良好的监控效果。关键词：牵引变电所，综合自动化，组态软件，监控IAUTOMATIONMONITORDESIGNOFTRACTIONSUBSTATIONBASEDONCONFIGURATIONSOFTWOREABSTRACTThemonitoringandcontrollingsoftwareistheinterfaceofoperatorsandoperatingequipmentsinthetractionsubstationautomationsystemwhichisoccupyingthesignificantimportanceinthetractionsubstationautomationsystem.Withthedevelopmentofthecomputerandcommunications,China'selectrifiedrailwaylineshasbeentopromotetheuseofcentralizedmonitoringandremotecontrolsystems,tractionsubstationwillbetheprogressiverealizationofunmanned,whichisdirectlypowersuppliedbytheimplementationofremotecontroloperationscheduling.Monitorsoftwareisusedbymostelectricitymonitorsandcontrolsystemstoimprovethelevelofmonitoringandcontrollingbecauseofits’reliablequality.Thetractionsubstationintegratedautomationsystemstructureandfunctionoftheprincipleisdiscussedinthepaper,andthefunctionsofsoftwareconfiguration,characteristicsandapplicationsinthesubstationautomation,thepreliminaryintegratedautomationfortractionsubstationmonitoringsystemisdesigned.ThedesignistakingtheKingview6.5versionofthesoftwareastheplatform,itdevelopingthetractionsubstationsynthesisautomationsupervisorysystem.Basedonthetractionsubstationsystemmonitoringcontactsurfacemanufactureanddatadictionarydesign,andthetelemetry,remotesignals,remotetransferandtheremotecontrolfunctionofthetransformersubstationsystemisrealized,besides，itcompletesthedatalinkingandaccessingbetweenKingviewandMicrosofttheAccessdata.ItshowsthatTractionSubstationMonitoringSystembasedonconfigurationsoftwarehasagoodeffectonsubstation.Keywords:Tractionsubstation，IntegratedAutomation，Configurationsoftware，MonitorandcontrolII目录1绪论---------------------------------------------------------------------------------------------------11.1牵引变电所综合自动化系统的基本概念-----------------------------------------------11.1.1变电所综合自动化简介------------------------------------------------------------11.1.2牵引变电所综合自动化简介------------------------------------------------------21.2牵引变电所综合自动化系统的结构形式-----------------------------------------------51.3牵引变电所综合自动化系统的功能-----------------------------------------------------71.3.1监控子系统---------------------------------------------------------------------------71.3.2微机保护子系统---------------------------------------------------------------------91.3.3备用电源自投控制------------------------------------------------------------------91.3.4牵引变电所综合自动化系统的通信任务----------...
