表H-215容器、换热器安装工序质量控质表VIP免费

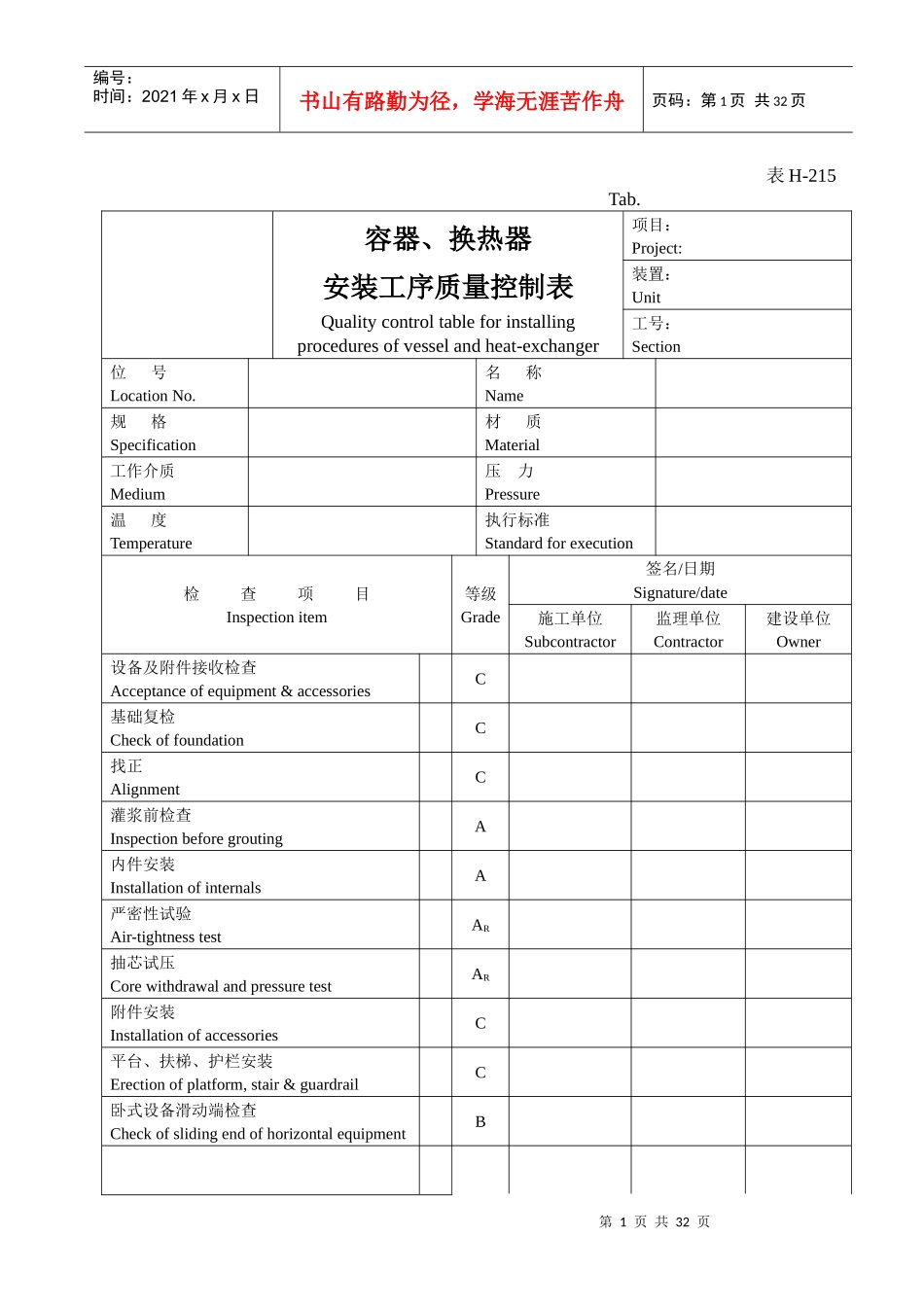

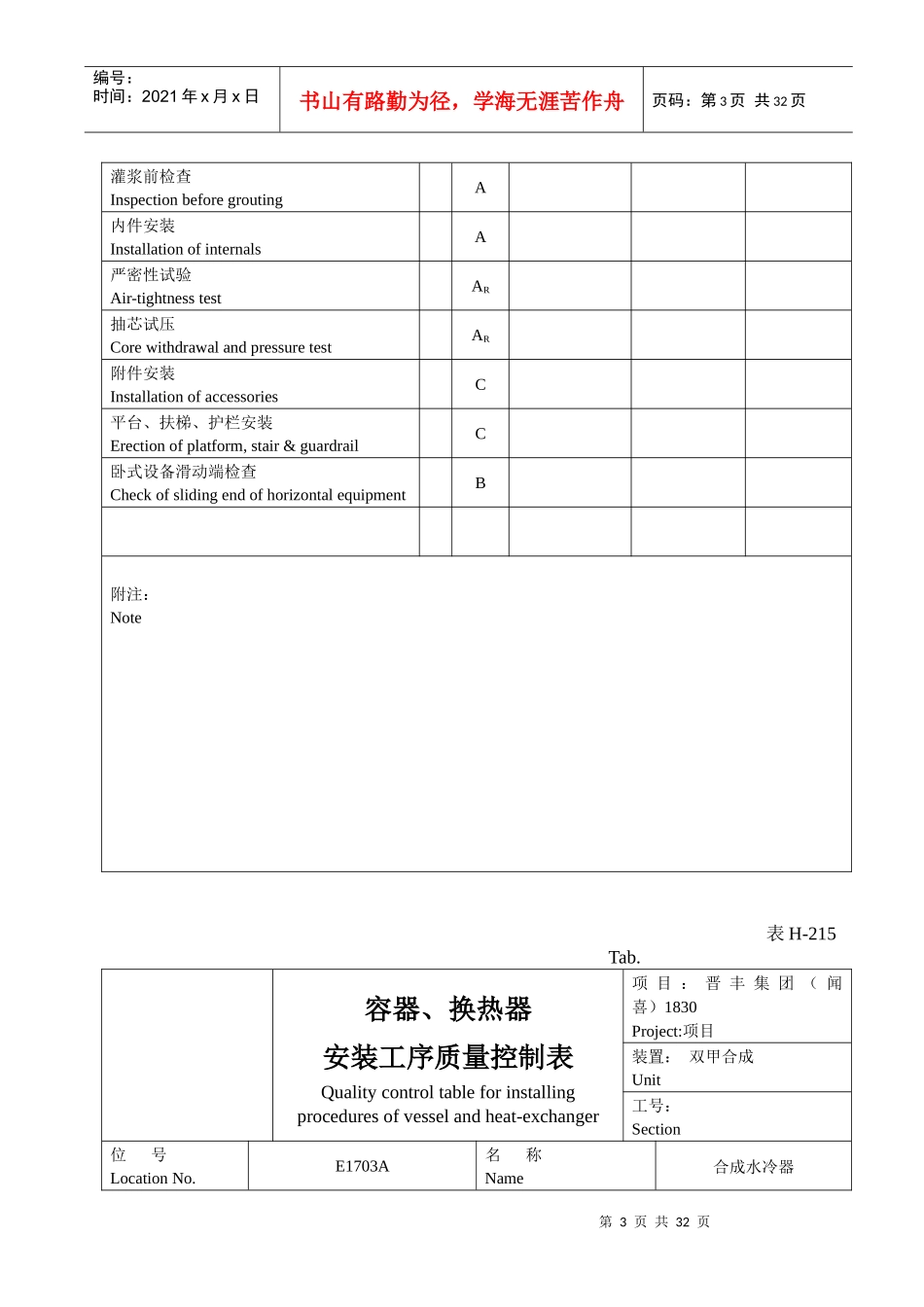

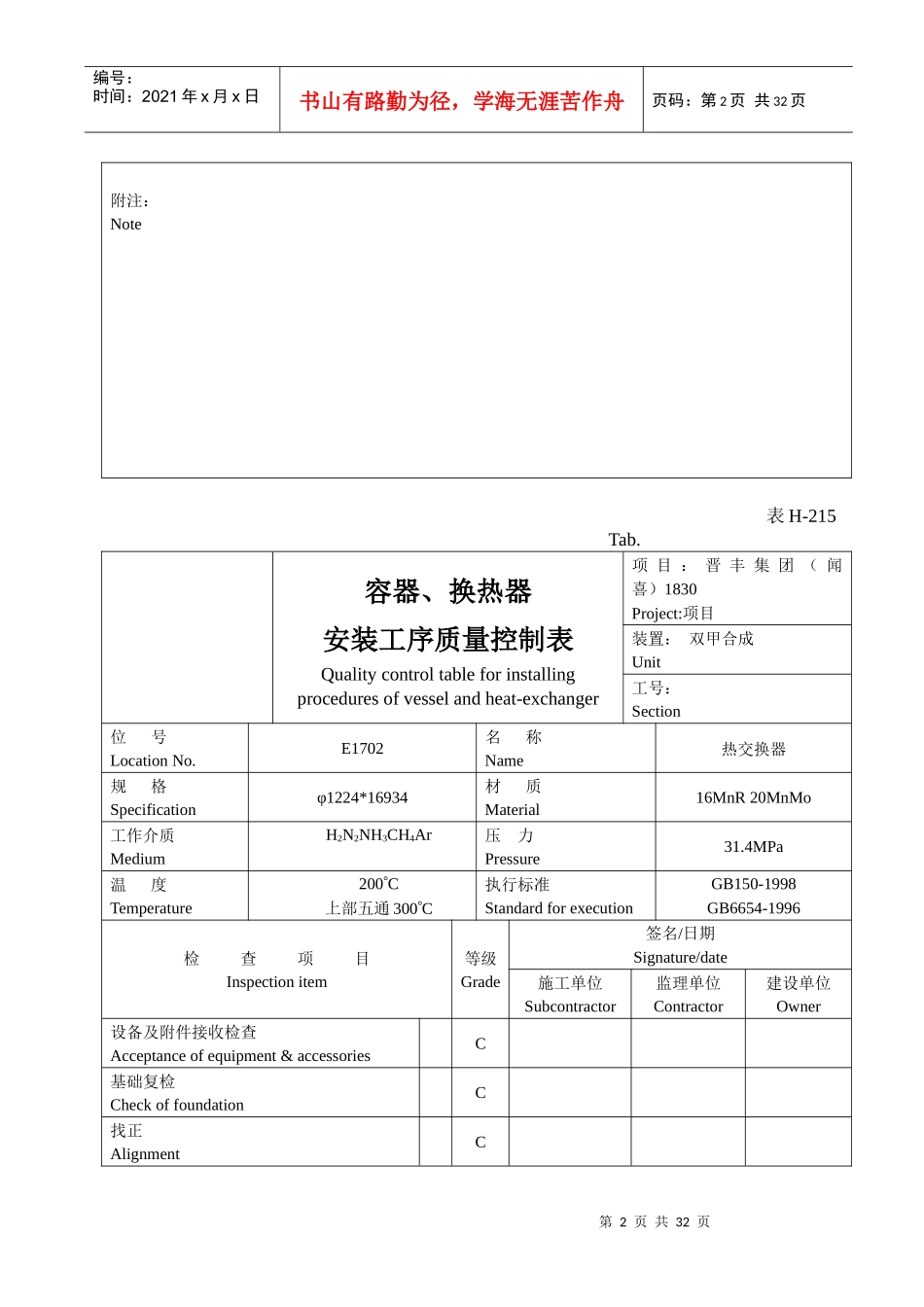

第1页共32页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第1页共32页表H-215Tab.容器、换热器安装工序质量控制表Qualitycontroltableforinstallingproceduresofvesselandheat-exchanger项目：Project:装置：Unit工号：Section位号LocationNo.名称Name规格Specification材质Material工作介质Medium压力Pressure温度Temperature执行标准Standardforexecution检查项目Inspectionitem等级Grade签名/日期Signature/date施工单位Subcontractor监理单位Contractor建设单位Owner设备及附件接收检查Acceptanceofequipment&accessoriesC基础复检CheckoffoundationC找正AlignmentC灌浆前检查InspectionbeforegroutingA内件安装InstallationofinternalsA严密性试验Air-tightnesstestAR抽芯试压CorewithdrawalandpressuretestAR附件安装InstallationofaccessoriesC平台、扶梯、护栏安装Erectionofplatform,stair&guardrailC卧式设备滑动端检查CheckofslidingendofhorizontalequipmentB第2页共32页第1页共32页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第2页共32页附注：Note表H-215Tab.容器、换热器安装工序质量控制表Qualitycontroltableforinstallingproceduresofvesselandheat-exchanger项目：晋丰集团（闻喜）1830Project:项目装置：双甲合成Unit工号：Section位号LocationNo.E1702名称Name热交换器规格Specificationφ1224*16934材质Material16MnR20MnMo工作介质MediumH2N2NH3CH4Ar压力Pressure31.4MPa温度Temperature200C上部五通300C执行标准StandardforexecutionGB150-1998GB6654-1996检查项目Inspectionitem等级Grade签名/日期Signature/date施工单位Subcontractor监理单位Contractor建设单位Owner设备及附件接收检查Acceptanceofequipment&accessoriesC基础复检CheckoffoundationC找正AlignmentC第3页共32页第2页共32页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第3页共32页灌浆前检查InspectionbeforegroutingA内件安装InstallationofinternalsA严密性试验Air-tightnesstestAR抽芯试压CorewithdrawalandpressuretestAR附件安装InstallationofaccessoriesC平台、扶梯、护栏安装Erectionofplatform,stair&guardrailC卧式设备滑动端检查CheckofslidingendofhorizontalequipmentB附注：Note表H-215Tab.容器、换热器安装工序质量控制表Qualitycontroltableforinstallingproceduresofvesselandheat-exchanger项目：晋丰集团（闻喜）1830Project:项目装置：双甲合成Unit工号：Section位号LocationNo.E1703A名称Name合成水冷器第4页共32页第3页共32页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第4页共32页规格Specificationφ13244*10605材质Material16MnR20MnMo工作介质Medium壳程：水蒸汽管程：H2N2NH3CH4Ar压力Pressure壳程：3.0MPa管程：31.4MPa温度Temperature壳程：40C管程：100C执行标准StandardforexecutionGB150-1998GB6654-1996检查项目Inspectionitem等级Grade签名/日期Signature/date施工单位Subcontractor监理单位Contractor建设单位Owner设备及附件接收检查Acceptanceofequipment&accessoriesC基础复检CheckoffoundationC找正AlignmentC灌浆前检查InspectionbeforegroutingA内件安装InstallationofinternalsA严密性试验Air-tightnesstestAR抽芯试压CorewithdrawalandpressuretestAR附件安装InstallationofaccessoriesC平台、扶梯、护栏安装Erectionofplatform,stair&guardrailC卧式设备滑动端检查CheckofslidingendofhorizontalequipmentB第5页共32页第4页共32页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第5页共32页附注：Note表H-215Tab.容器、换热器安装工序质量控制表Qualitycontroltableforinstallingproceduresofvesselandheat-exchanger项目：晋丰集团（闻喜）1830Project:项目装置：双甲合成Unit工号：Section位号LocationNo.E1703B名称Name合成水冷器规格Specificationφ13244*10605材质Material16MnR20MnMo工作介质Medium壳程：水蒸汽管程：H2N2NH3CH4A...
