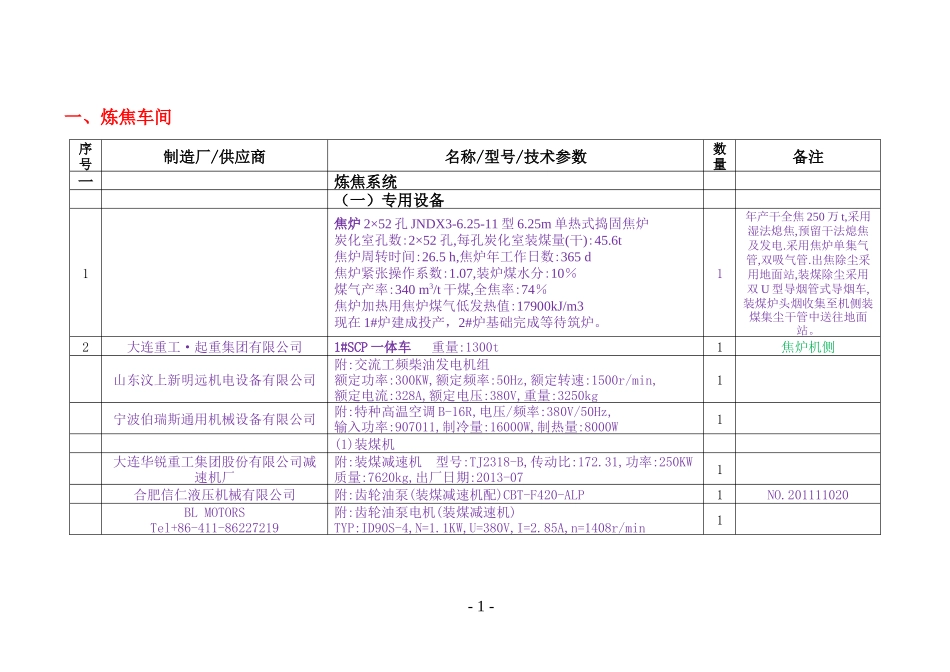

鹏飞焦化厂二期焦化设备档案制作单位：鹏飞实业(集团)公司设备部建档日期：2016年08月18日截止日期：2017年04月29日整理人：张福富审核人：赵伟智目录一、炼焦车间···························································1二、化产车间··························································11三、生化工段··························································28四、供水车间··························································32五、溴化锂制冷站····················································33六、循环水系统·······················································34七、公共管廊··························································36一、炼焦车间序号制造厂/供应商名称/型号/技术参数数量备注一炼焦系统（一）专用设备1焦炉2×52孔JNDX3-6.25-11型6.25m单热式捣固焦炉炭化室孔数:2×52孔,每孔炭化室装煤量(干):45.6t焦炉周转时间:26.5h,焦炉年工作日数:365d焦炉紧张操作系数:1.07,装炉煤水分:10％煤气产率:340m3/t干煤,全焦率:74％焦炉加热用焦炉煤气低发热值:17900kJ/m3现在1#炉建成投产，2#炉基础完成等待筑炉。1年产干全焦250万t,采用湿法熄焦,预留干法熄焦及发电.采用焦炉单集气管,双吸气管.出焦除尘采用地面站,装煤除尘采用双U型导烟管式导烟车,装煤炉头烟收集至机侧装煤集尘干管中送往地面站。2大连重工·起重集团有限公司1#SCP一体车重量:1300t1焦炉机侧山东汶上新明远机电设备有限公司附:交流工频柴油发电机组额定功率:300KW,额定频率:50Hz,额定转速:1500r/min,额定电流:328A,额定电压:380V,重量:3250kg1宁波伯瑞斯通用机械设备有限公司附:特种高温空调B-16R,电压/频率:380V/50Hz,输入功率:907011,制冷量:16000W,制热量:8000W1(1)装煤机大连华锐重工集团股份有限公司减速机厂附:装煤减速机型号:TJ2318-B,传动比:172.31,功率:250KW质量:7620kg,出厂日期:2013-071合肥信仁液压机械有限公司附:齿轮油泵(装煤减速机配)CBT-F420-ALP1NO.201111020BLMOTORSTel+86-411-86227219附:齿轮油泵电机(装煤减速机)TYP:ID90S-4,N=1.1KW,U=380V,I=2.85A,n=1408r/min1-1-序号制造厂/供应商名称/型号/技术参数数量备注上海南洋电机有限公司附:装煤电机(变频调速三相异步电动机)型号:YTSZ355M-4,标称功率:250KW,额定电压:660V,额定电流:250A,额定频率:50Hz,额定转矩:1501.7Nm恒转矩范围:3-50Hz,恒功率范围:50-70Hz1NO.12GX6915-1江西华伍制动器股份有限公司附:块式制动器型号:YWB500-3000.WC.HR,力矩:4800Nm瓦块退距:≤1.25mm,1NO.04051401004大连华锐重工集团股份有限公司液压装备厂(2)液压站大连达尔马电机有限公司附:液压泵电机型号:Y250M-4B35,N=55kW,U=380V,I=104An=1475r/min,重量:377kg,日期:2013-122NO.0713MADEINGERMANY附:液压泵RexrothD-72160Horb,FR=bar,LR=KWA4VSO180DR/30R-PPB13N00,n=1500min-1,DR=350bar,MNR:R910999125,FD:2013W48,SN:33839539,Vg=180cm32附:蓄能器USALDINDUSTRIALGROUPCO.LIMITED(3)干油站ProductModel:PA40YProductName:FixedElectricOilPumpStationUSALDINDUSTRIALGROUPCO.LIMITED技术支持:0335-7913044销售热线:0335-4289066USALD3-PHASEGEARMOTOROUTPUT:1/2HP400W,HZ:50/60,VOLTS:220/380,AMPS:1.2/2.0,RPM:1420/17201大连一品机械制造有限公司(4)布料减速机YP55-116-IV-712大连伯顿冠力电机有限公司附:起重及冶金用三相异步电动机YZ160M2-6fischre(5)捣固电机3-ph-Motor-Nr41246589714#79467TypKDGN2250M4KTSHVLNVKKLRT4555KW50Hz66kw60Hz380-420/660-690VDr440-480V...
