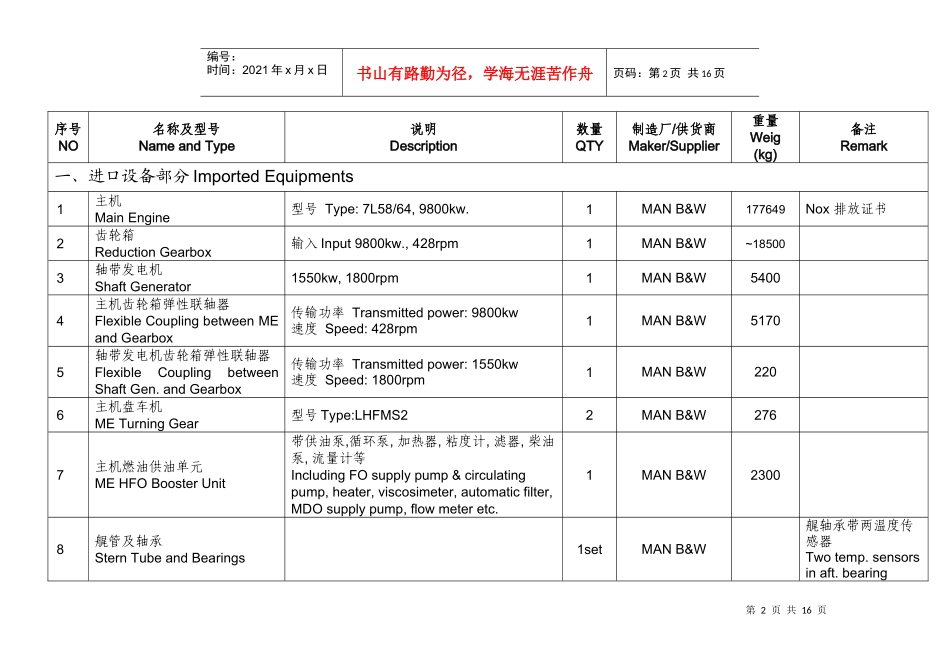

19100DWT多用途船19100DWTMULTI-PURPOSEVESSEL轮机部分设备清单TheListofEquipments(MechanicalPart)QS4100-408-01HZ标记数量修改单号签字日期设计描图标记数量重量(kg)比例绘图描校校对审定共14页第1页标检中国长江航运集团青山船厂审核日期第2页共16页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第2页共16页序号NO名称及型号NameandType说明Description数量QTY制造厂/供货商Maker/Supplier重量Weig(kg)备注Remark一、进口设备部分ImportedEquipments1主机MainEngine型号Type:7L58/64,9800kw.1MANB&W177649Nox排放证书2齿轮箱ReductionGearbox输入Input9800kw.,428rpm1MANB&W~185003轴带发电机ShaftGenerator1550kw,1800rpm1MANB&W54004主机齿轮箱弹性联轴器FlexibleCouplingbetweenMEandGearbox传输功率Transmittedpower:9800kw速度Speed:428rpm1MANB&W51705轴带发电机齿轮箱弹性联轴器FlexibleCouplingbetweenShaftGen.andGearbox传输功率Transmittedpower:1550kw速度Speed:1800rpm1MANB&W2206主机盘车机METurningGear型号Type:LHFMS22MANB&W2767主机燃油供油单元MEHFOBoosterUnit带供油泵,循环泵,加热器,粘度计,滤器,柴油泵,流量计等IncludingFOsupplypump&circulatingpump,heater,viscosimeter,automaticfilter,MDOsupplypump,flowmeteretc.1MANB&W23008艉管及轴承SternTubeandBearings1setMANB&W艉轴承带两温度传感器Twotemp.sensorsinaft.bearing第3页共16页第2页共16页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第3页共16页序号NO名称及型号NameandType说明Description数量QTY制造厂/供货商Maker/Supplier重量Weig(kg)备注Remark9艉管密封SternTubeSeals1setMANB&W10可调桨/轴及控制系统CPP/ShaftandControlSys.4桨叶Fourblades1setMANB&W11主机排气消音器(带火星熄灭器)MEExhaustGasSilencer(withsparkarrester)DN11001MANB&W358012主机排气膨胀节MEExhaustGasCompensatorDN11001MANB&W13113主机起动空气瓶MEStartingAirReceiverMAN零件号MANPartNo.:X11.66001-0789容量Capacity:1.5m3,3.0MPa2MANB&W88014主机缸套水预加热单元MEJacketWaterPreheatingUnit蒸汽加热Steamheating1MANB&W15增压空气冷却器清洗装置ChargeAirCoolerCleaningSys.1MANB&W16主机油头冷却水模块NozzleCool.WaterModuleDKW7-61MANB&W17主机滑油冷却器MELOCooler型号Type:S62-IS10-313-TMTL-89热交换量Capacity:1158kw1MANB&W2058第4页共16页第3页共16页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第4页共16页序号NO名称及型号NameandType说明Description数量QTY制造厂/供货商Maker/Supplier重量Weig(kg)备注Remark18船用柴油发电机组MarineDieselGeneratorSet型号Type:CATERPILLAR3412C590ekW,1800rpm,450V3CATMarinePowerNOx排放证书19应急/停泊柴油发电机组Emergency/HarborGenerator型号Type:CATERPILLAR3412C,400R,400ekW.1CATMarinePowerNOx排放证书20辅机排气消音器A/EExhaustSilencer型号Type:BSA35/2503CATMarinePower21应急发电机排气消音器Emerg.EngineExhaustSilencer型号Type:BSA35/2501CATMarinePower22发电机组缸套水冷却器CoolersforA/EJ.W.3N-88913CATMarinePower23蒸汽组合锅炉(带燃油泵及供水泵)SteamCompositeBoiler,suppliedwithFOPumpandFeedWaterPump型号Type:1xMISSIONTMOC2000/1300kg/h立式vertical燃油部分oilfiredsection:2000kg/h废气部分Exh.Gassection:1300kg/h工作蒸汽SteamPressure:0.7MPa1AALBORG15900+177.4燃油泵及供水泵各2台2etsFOPumps&2setsWaterPumps24锅炉加药泵单元DosingPumpUnitforBoiler型号Type:CNPA-1601PPE21AALBORG825锅炉取样冷却器SampleCoolerforBoiler型号Type:SCS201AALBORG26制淡装置FreshWaterGenerator型号Type:JWP-26-C100真空蒸馏Vacuumdistiller制淡量Capacity:25t/24h加热介质:主机缸套水Heatingmedium:MEjacketfreshwater1AlfaLaval855第5页共16页第4页共16页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第5页共16页序号NO名称及型号NameandType说明De...
