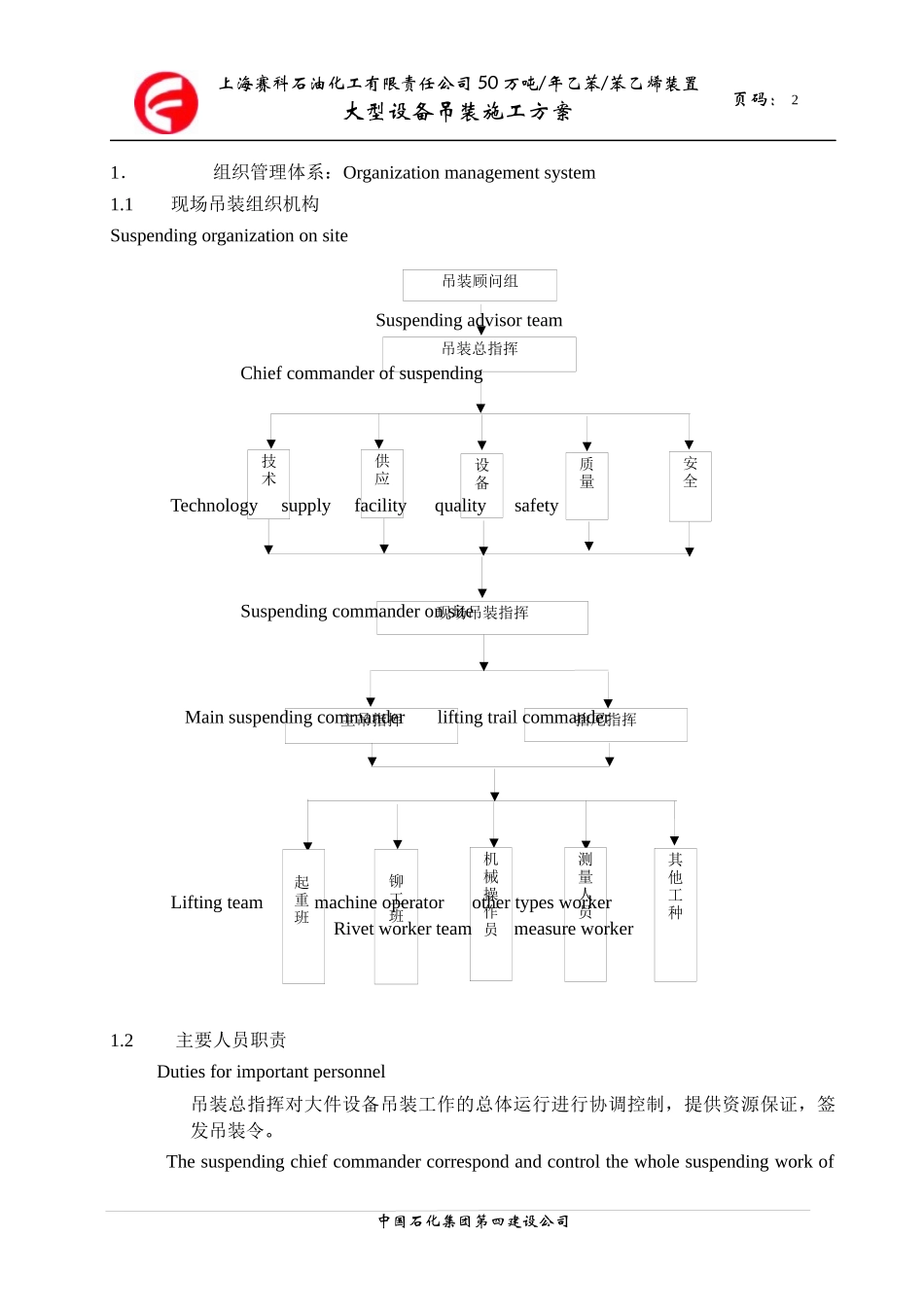

吊装总指挥技术供应质量安全吊装顾问组抬尾指挥主吊指挥起重班机械操作员测量人员其他工种设备铆工班现场吊装指挥上海赛科石油化工有限责任公司50万吨/年乙苯/苯乙烯装置大型设备吊装施工方案页码：21．组织管理体系：Organizationmanagementsystem1.1现场吊装组织机构SuspendingorganizationonsiteSuspendingadvisorteamChiefcommanderofsuspendingTechnologysupplyfacilityqualitysafetySuspendingcommanderonsiteMainsuspendingcommanderliftingtrailcommanderLiftingteammachineoperatorothertypesworkerRivetworkerteammeasureworker1.2主要人员职责Dutiesforimportantpersonnel吊装总指挥对大件设备吊装工作的总体运行进行协调控制，提供资源保证，签发吊装令。Thesuspendingchiefcommandercorrespondandcontrolthewholesuspendingworkof中国石化集团第四建设公司上海赛科石油化工有限责任公司50万吨/年乙苯/苯乙烯装置大型设备吊装施工方案页码：2theheavyfacilities,alsosupplytheguaranteeofmaterialsandsignthecommandosuspending.吊装现场指挥负责组织吊装方案的实施。Suspendingcommanderonsitetakechargeoforganizingtopracticethesuspendingscheme.技术负责人负责编制吊装方案，参加技术交底，参加技术攻关工作，参与风险评估和吊装前的检查确认。Technologyprincipaltakechargeofwritingthesuspendingscheme,tellingthetechnologyintentions,attendingintacklingkeytechnologyproblemandriskevaluatingandaffirmingcheckingbeforesuspending.质量负责人负责审查、确认特殊作业人员上岗资格，参加到货设备的检查和验收，组织设备基础验收、检查确认施工质量。Qualitypricipalchargeinexaminationandaffirmthespecialworkermooountguardwithcertification,healsoattendincheckingandacceptthereceivedfacilities,organizetocheckandacceptthefacilitiesbasic,checkandaffirmtheconstructionquality.设备负责人负责对进场施工设备的状况进行核实确认。负责设备的日常维护管理，参与风险评估工作。Facilitypricipaltakechargeofvertifyandaffirmtheconditionsofconstructionfacilitiesonsite,dailymaintainingandmanagementoffacilitiesandattendingriskevaluating.安全负责人负责提出HSE实施计划，监督HSE管理的实施。SafetypricipaltakechargeofsupplyingHSEpracticeschemeandsupervisingHSEmanagementimplementation.供应负责人根据工程需要及时保质保量供应器材，组织到货设备验收。Supplypricipalpurveyequipmentswithqualityandquantityintimeaccordingtotheprojectrequirement,andorganizetocheckandacceptthereceivedfacilities.2．运输路线：（运输公司编制）Transportationroute:(workoutbytransportcompany)3．运输车辆的性能特点（运输公司编制）Functionsandfeaturesofvehicles(workoutbytransportcompany)4．卸车位置及方位Unloadingplacesandorientation4.1大型设备卸车、吊装顺序（详见大型设备吊装运行计划）Unloadingandsuspendingordersofheavyfacilities(seerunning中国石化集团第四建设公司上海赛科石油化工有限责任公司50万吨/年乙苯/苯乙烯装置大型设备吊装施工方案页码：2planofsuspendingheavyfacilities)4.2设备摆放所占的道路及时间：Roadandtimeoccupiedbyputtingthefacilities:1）10#路：摆放T-4001、T-4003安装平台、保温、管线03年10月15日-----11月6日；2月1日-----2月9日NO10Road:putT-4001duringOctober15toNovember6,2003;February1stto9,20042）8#路：1250t吊车组车04年2月1日-----2月9日。NO8Road:install1250tcranefromFebruary1stto9,2004.4.3设备卸车配合及支撑Cooperatingandsupportingofunloadingfacilities4.3.1卸车Unloading●预搭设支撑垛;●Buildthesupportingbuttressinadvance;●油压板车进入指定位置；●Entertheoilpressureplankmachinetotheappointedplace;●在卸车支撑处摆好卸车用的钢梁及鞍座；●Puttingtheunloadinggirderandbicyclesaddleintheunloadsupportingplace;●启动油压板车升降千斤顶，将设备顶起；...
