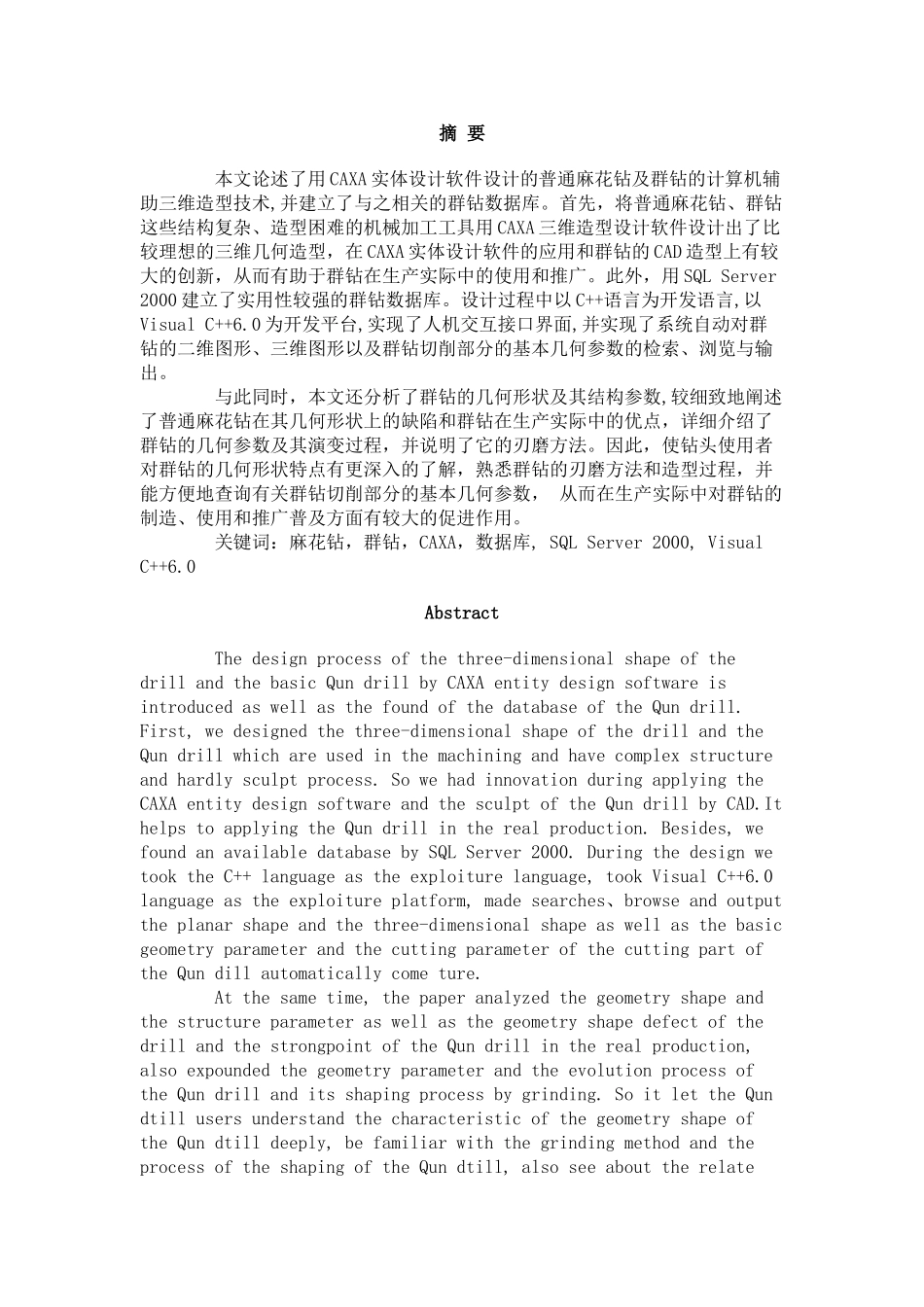

摘要本文论述了用CAXA实体设计软件设计的普通麻花钻及群钻的计算机辅助三维造型技术,并建立了与之相关的群钻数据库。首先,将普通麻花钻、群钻这些结构复杂、造型困难的机械加工工具用CAXA三维造型设计软件设计出了比较理想的三维几何造型,在CAXA实体设计软件的应用和群钻的CAD造型上有较大的创新,从而有助于群钻在生产实际中的使用和推广。此外,用SQLServer2000建立了实用性较强的群钻数据库。设计过程中以C++语言为开发语言,以VisualC++6.0为开发平台,实现了人机交互接口界面,并实现了系统自动对群钻的二维图形、三维图形以及群钻切削部分的基本几何参数的检索、浏览与输出。与此同时,本文还分析了群钻的几何形状及其结构参数,较细致地阐述了普通麻花钻在其几何形状上的缺陷和群钻在生产实际中的优点,详细介绍了群钻的几何参数及其演变过程,并说明了它的刃磨方法。因此,使钻头使用者对群钻的几何形状特点有更深入的了解,熟悉群钻的刃磨方法和造型过程,并能方便地查询有关群钻切削部分的基本几何参数,从而在生产实际中对群钻的制造、使用和推广普及方面有较大的促进作用。关键词:麻花钻,群钻,CAXA,数据库,SQLServer2000,VisualC++6.0AbstractThedesignprocessofthethree-dimensionalshapeofthedrillandthebasicQundrillbyCAXAentitydesignsoftwareisintroducedaswellasthefoundofthedatabaseoftheQundrill.First,wedesignedthethree-dimensionalshapeofthedrillandtheQundrillwhichareusedinthemachiningandhavecomplexstructureandhardlysculptprocess.SowehadinnovationduringapplyingtheCAXAentitydesignsoftwareandthesculptoftheQundrillbyCAD.IthelpstoapplyingtheQundrillintherealproduction.Besides,wefoundanavailabledatabasebySQLServer2000.DuringthedesignwetooktheC++languageastheexploiturelanguage,tookVisualC++6.0languageastheexploitureplatform,madesearches、browseandoutputtheplanarshapeandthethree-dimensionalshapeaswellasthebasicgeometryparameterandthecuttingparameterofthecuttingpartoftheQundillautomaticallycometure.Atthesametime,thepaperanalyzedthegeometryshapeandthestructureparameteraswellasthegeometryshapedefectofthedrillandthestrongpointoftheQundrillintherealproduction,alsoexpoundedthegeometryparameterandtheevolutionprocessoftheQundrillanditsshapingprocessbygrinding.SoitlettheQundtillusersunderstandthecharacteristicofthegeometryshapeoftheQundtilldeeply,befamiliarwiththegrindingmethodandtheprocessoftheshapingoftheQundtill,alsoseeabouttherelatecuttingdataeasily.Thusitfacilitatesthemanufacture、usingandpopularizingoftheQundrillintherealproduction.Keywords:drill,Qundrill,CAXA,database,SQLServer2000,VisualC++6.0前言在机械制造中,切削加工占有极其重要的地位,钻削是金属切削加工中最常用的孔加工方法之一。钻削的主要加工工具是钻头。麻花钻头的发明和使用已有百余年的历史。其结构和几何形状,早已订有标准;其工作特点和应用范围,已为广大使用者所熟悉。但是,麻花钻头的标准结构和几何形状尚存在着若干缺点,严重影响到工作效率的进一步提高。为此,人们常用各种方法,适当改变其原来的结构和几何形状,以达到提高切削性能的目的。1953年出现的群钻创造性地修磨了标准钻头,改变了原来的几何形状,使钻头的切削性能有了显著的提高。群钻的优点和使用价值虽已为机械制造业所公认,但到目前为止,由于群钻几何形状比较复杂,掌握刃磨比较困难,所以使用情况有所减少。[1]为了有助于群钻的使用和推广,发挥群钻在机械制造生产中的优势,在本论文中对群钻的几何形状做了较细致的分析,阐述其结构和几何参数的演变过程,给出其二维、三维造型方法,并初步建立了群钻的数据库,使钻头使用者对群钻的几何形状特点有更深入的了解,熟悉群钻的刃磨方法和造型过程,并能方便地查询有关群钻切削部分的基本几何参数,从而达到推广使用群钻的目的。目录前言...................
