SAE J1050驾驶员视野的描述和测量--中文版VIP免费

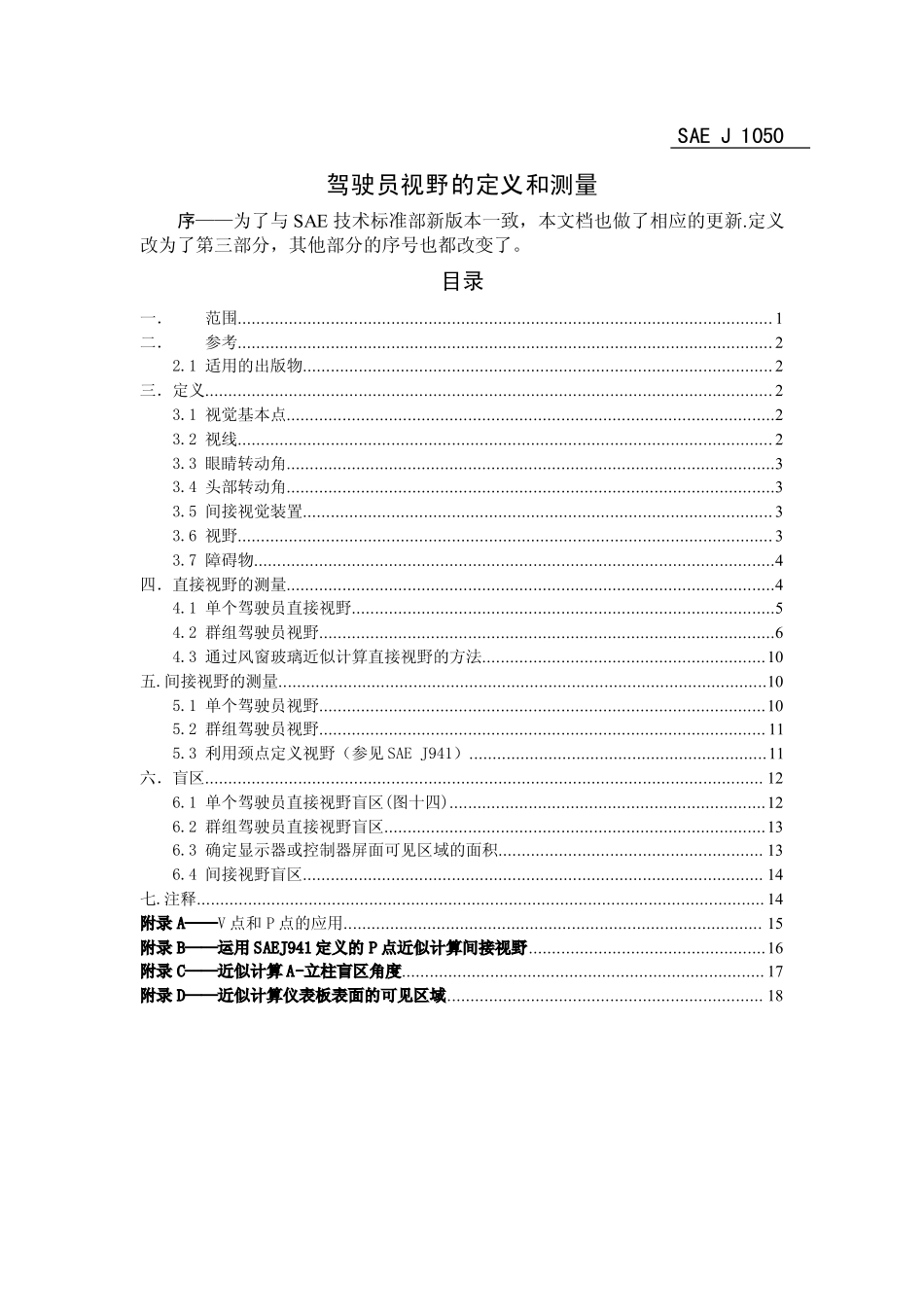

SAEJ1050驾驶员视野的定义和测量序——为了与SAE技术标准部新版本一致，本文档也做了相应的更新.定义改为了第三部分，其他部分的序号也都改变了。目录一．范围...................................................................................................................1二．参考...................................................................................................................22.1适用的出版物.....................................................................................................2三．定义..........................................................................................................................23.1视觉基本点.........................................................................................................23.2视线...................................................................................................................23.3眼睛转动角.........................................................................................................33.4头部转动角.........................................................................................................33.5间接视觉装置.....................................................................................................33.6视野...................................................................................................................33.7障碍物................................................................................................................4四．直接视野的测量.........................................................................................................44.1单个驾驶员直接视野...........................................................................................54.2群组驾驶员视野..................................................................................................64.3通过风窗玻璃近似计算直接视野的方法.............................................................10五.间接视野的测量.........................................................................................................105.1单个驾驶员视野................................................................................................105.2群组驾驶员视野................................................................................................115.3利用颈点定义视野（参见SAEJ941）................................................................11六．盲区........................................................................................................................126.1单个驾驶员直接视野盲区(图十四)....................................................................126.2群组驾驶员直接视野盲区..................................................................................136.3确定显示器或控制器屏面可见区域的面积.........................................................136.4间接视野盲区...................................................................................................14七.注释..........................................................................................................................14附录A——V点和P点的应用..........................................................................................15附录B——运用SAEJ941定义的P点近似计算间接视野...................................................16附录C——近似计算A-立柱盲区角度.................
