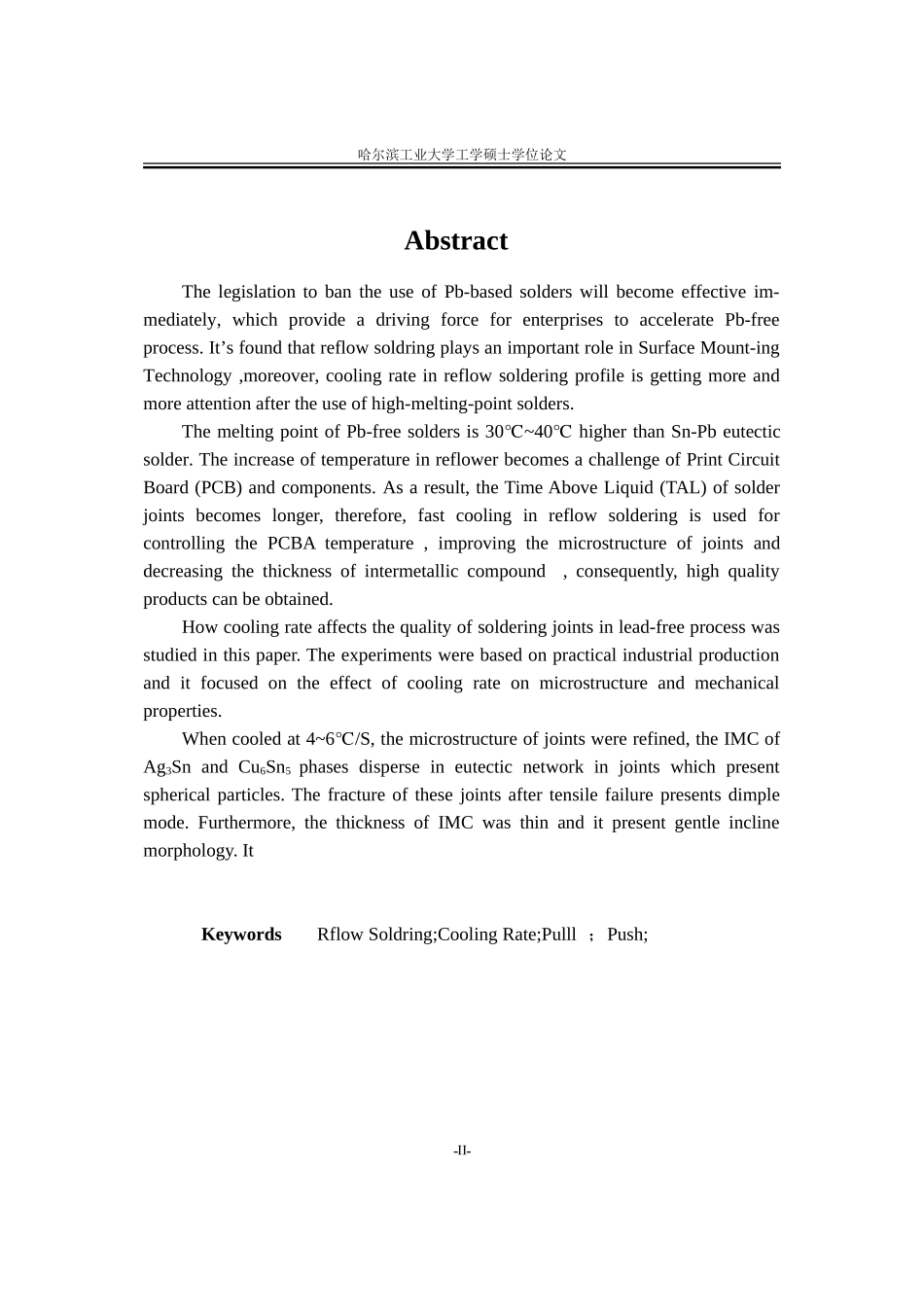

摘要摘要电子组装业有铅钎料禁用期限日益临近。行业内包括材料、设备、生产等各环节的厂商都在加快无铅制程导入的步伐。无铅化过程中，表面组装的焊接工艺至为重要，而随着熔点较高的新型钎料陆续应用，焊接过程的冷却速率也逐渐成为被关注点。无铅钎料熔点较Sn-Pb共晶提高30-40℃，焊接温度相应提高。炉温的提高对元件和电路板构成挑战，焊接出炉温度也相应提高，钎料液相线上时间相对延长。较快的冷速可以控制出炉温度，从而一定程度的控制焊点内部组织以及界面化合物的厚度，提高焊点质量。本文基于实际的回流焊生产工艺，研究冷却速率对无铅焊点质量的影响。主要研究两种无铅焊膏在不同冷速下焊点微观组织和力学性能的变化。实测冷速在-4℃/S～-6.5℃/S之间时形成的无铅焊点具有以下特点：微观组织细化，金属间化合物Ag3Sn和Cu6Sn5呈细颗粒状在钎料中弥散分布，使焊点断裂为韧窝断裂模式，可以起到类似复合材料的原位增强作用。在钎料和Cu盘的界面，化合物厚度较小，且呈大波浪形态，容易缓解应力集中的问题，焊点的力学拉脱载荷最大；当冷速小于-1.5℃/S时，组织粗化。内部Ag3Sn粗大而尖锐，界面的Cu6Sn5呈冰凌状，且厚度较大。焊点在推剪时这成为裂纹萌生点，焊点的力学拉脱载荷最小。关键词回流焊；冷却速率；拉脱载荷；推剪；焊点质量；--I哈尔滨工业大学工学硕士学位论文AbstractThelegislationtobantheuseofPb-basedsolderswillbecomeeffectiveim-mediately,whichprovideadrivingforceforenterprisestoacceleratePb-freeprocess.It’sfoundthatreflowsoldringplaysanimportantroleinSurfaceMount-ingTechnology,moreover,coolingrateinreflowsolderingprofileisgettingmoreandmoreattentionaftertheuseofhigh-melting-pointsolders.ThemeltingpointofPb-freesoldersis30℃~40℃higherthanSn-Pbeutecticsolder.TheincreaseoftemperatureinreflowerbecomesachallengeofPrintCircuitBoard(PCB)andcomponents.Asaresult,theTimeAboveLiquid(TAL)ofsolderjointsbecomeslonger,therefore,fastcoolinginreflowsolderingisusedforcontrollingthePCBAtemperature,improvingthemicrostructureofjointsanddecreasingthethicknessofintermetalliccompound,consequently,highqualityproductscanbeobtained.Howcoolingrateaffectsthequalityofsolderingjointsinlead-freeprocesswasstudiedinthispaper.Theexperimentswerebasedonpracticalindustrialproductionanditfocusedontheeffectofcoolingrateonmicrostructureandmechanicalproperties.Whencooledat4~6℃/S,themicrostructureofjointswererefined,theIMCofAg3SnandCu6Sn5phasesdisperseineutecticnetworkinjointswhichpresentsphericalparticles.Thefractureofthesejointsaftertensilefailurepresentsdimplemode.Furthermore,thethicknessofIMCwasthinanditpresentgentleinclinemorphology.ItKeywordsRflowSoldring;CoolingRate;Pulll；Push;--II哈尔滨工业大学工学硕士学位论文目录摘要........................................................................................................................IAbstract....................................................................................................................II第1章绪论.......................................................................................................11.1课题背景...................................................................................................11.2研究现状...................................................................................................21.2.1电子组装工艺..................................................................................21.2.2无铅回流焊工艺..............................................................................31.2.3无铅回流焊中冷却速率研究现状.................................................51.3本文主要研...
