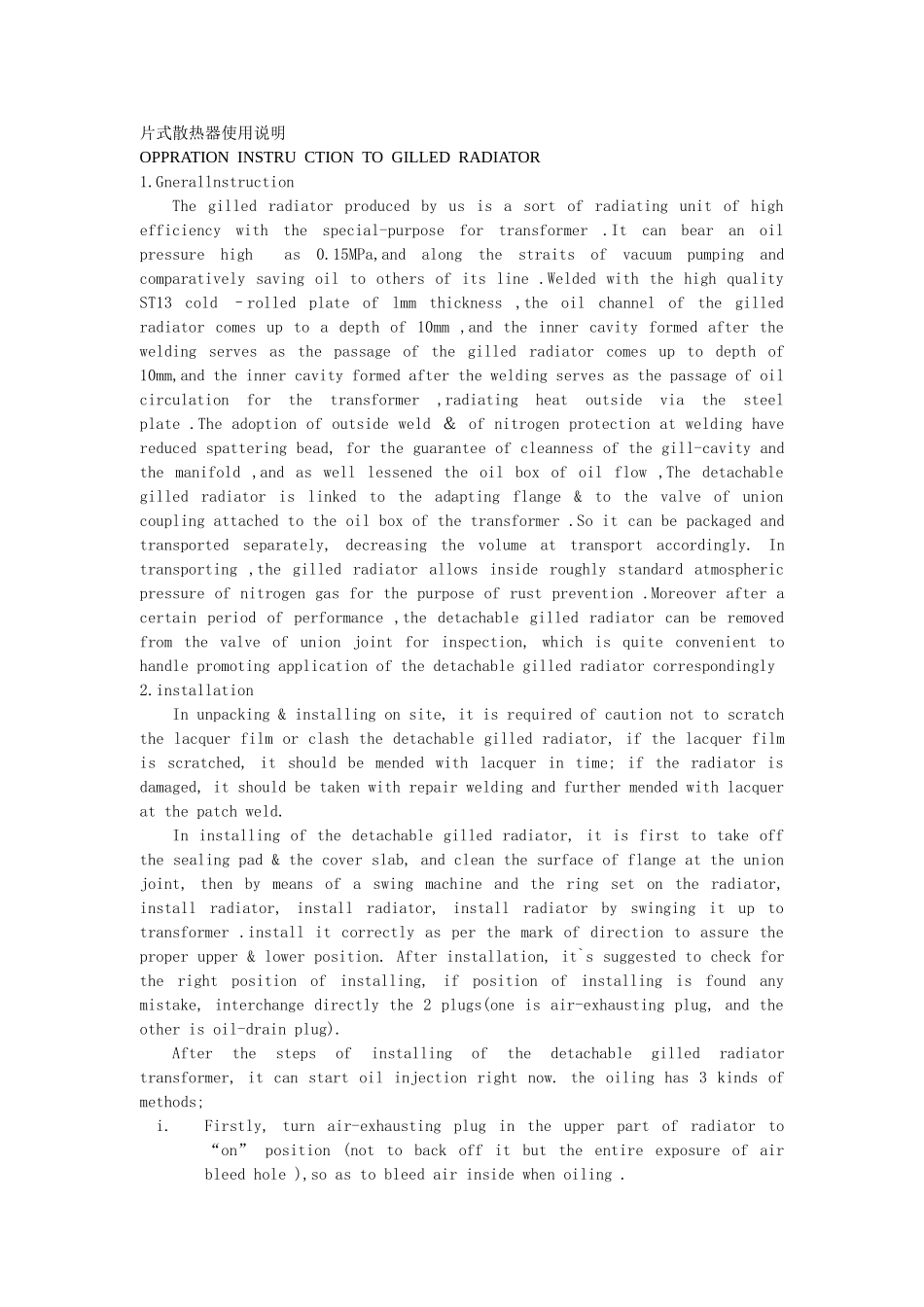

片式散热器使用说明OPPRATIONINSTRUCTIONTOGILLEDRADIATOR1.GnerallnstructionThegilledradiatorproducedbyusisasortofradiatingunitofhighefficiencywiththespecial-purposefortransformer.Itcanbearanoilpressurehighas0.15MPa,andalongthestraitsofvacuumpumpingandcomparativelysavingoiltoothersofitsline.WeldedwiththehighqualityST13cold–rolledplateoflmmthickness,theoilchannelofthegilledradiatorcomesuptoadepthof10mm,andtheinnercavityformedaftertheweldingservesasthepassageofthegilledradiatorcomesuptodepthof10mm,andtheinnercavityformedaftertheweldingservesasthepassageofoilcirculationforthetransformer,radiatingheatoutsideviathesteelplate.Theadoptionofoutsideweld＆ofnitrogenprotectionatweldinghavereducedspatteringbead,fortheguaranteeofcleannessofthegill-cavityandthemanifold,andaswelllessenedtheoilboxofoilflow,Thedetachablegilledradiatorislinkedtotheadaptingflange&tothevalveofunioncouplingattachedtotheoilboxofthetransformer.Soitcanbepackagedandtransportedseparately,decreasingthevolumeattransportaccordingly.Intransporting,thegilledradiatorallowsinsideroughlystandardatmosphericpressureofnitrogengasforthepurposeofrustprevention.Moreoverafteracertainperiodofperformance,thedetachablegilledradiatorcanberemovedfromthevalveofunionjointforinspection,whichisquiteconvenienttohandlepromotingapplicationofthedetachablegilledradiatorcorrespondingly2.installationInunpacking&installingonsite,itisrequiredofcautionnottoscratchthelacquerfilmorclashthedetachablegilledradiator,ifthelacquerfilmisscratched,itshouldbemendedwithlacquerintime;iftheradiatorisdamaged,itshouldbetakenwithrepairweldingandfurthermendedwithlacqueratthepatchweld.Ininstallingofthedetachablegilledradiator,itisfirsttotakeoffthesealingpad&thecoverslab,andcleanthesurfaceofflangeattheunionjoint,thenbymeansofaswingmachineandtheringsetontheradiator,installradiator,installradiator,installradiatorbyswingingituptotransformer.installitcorrectlyasperthemarkofdirectiontoassuretheproperupper&lowerposition.Afterinstallation,it`ssuggestedtocheckfortherightpositionofinstalling,ifpositionofinstallingisfoundanymistake,interchangedirectlythe2plugs(oneisair-exhaustingplug,andtheotherisoil-drainplug).Afterthestepsofinstallingofthedetachablegilledradiatortransformer,itcanstartoilinjectionrightnow.theoilinghas3kindsofmethods;i.Firstly,turnair-exhaustingplugintheupperpartofradiatorto“on”position(nottobackoffitbuttheentireexposureofairbleedhole),soastobleedairinsidewhenoiling.secondly,switchthevalveofthelowerunioncouplingto“on”position,lettingoilboxintoradiator.whentheair-exhaustingplugattheupperpartofradiatorstartstoemitoilthatcomesfromtheradiator,turnimmediatelythisplugto“off”positionandoilinjectionfortheradiatorcompletesattheend.Whenoilinjectionforallofradiatorsfinishesfinally,switchthevalveoftheupperunioncouplingofradiatorthatfilledupwithoilto“on”position,andthenturntheair-exhaustingplugattopofthetransformerto“on”position,releasinggaspossiblyremainedintheradiator.ii.Switchthevalvesoftheupper&lowerunioncouplingofradiatorto“on”position,turnair-exhaustingplugintheupperpartofradiatorto“on”position,andthenstartsoilingalongtransformer,afterradiatorisfilledupwithoil,turnair-exhaustingplugofradiatorto“off:position.iii.Switchthevalvesoftheupper&lowerunioncouplingofradiatorto“on”position,andthenstartsoilingalongtransformerundervacuumcondition.Fordismantlemen...
