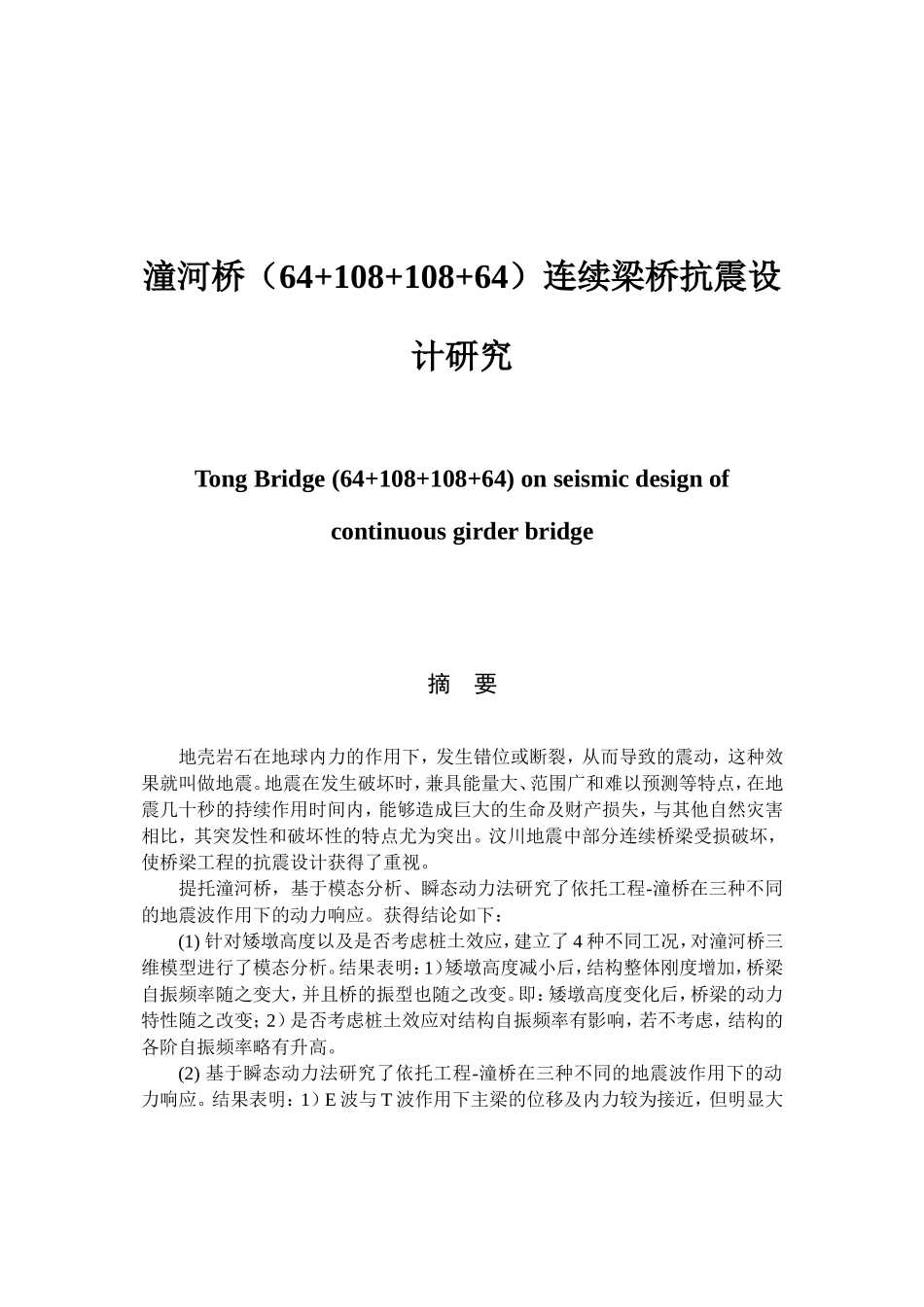

潼河桥连续梁桥抗震设计研究分析 桥隧管理专业_第1页
1/77

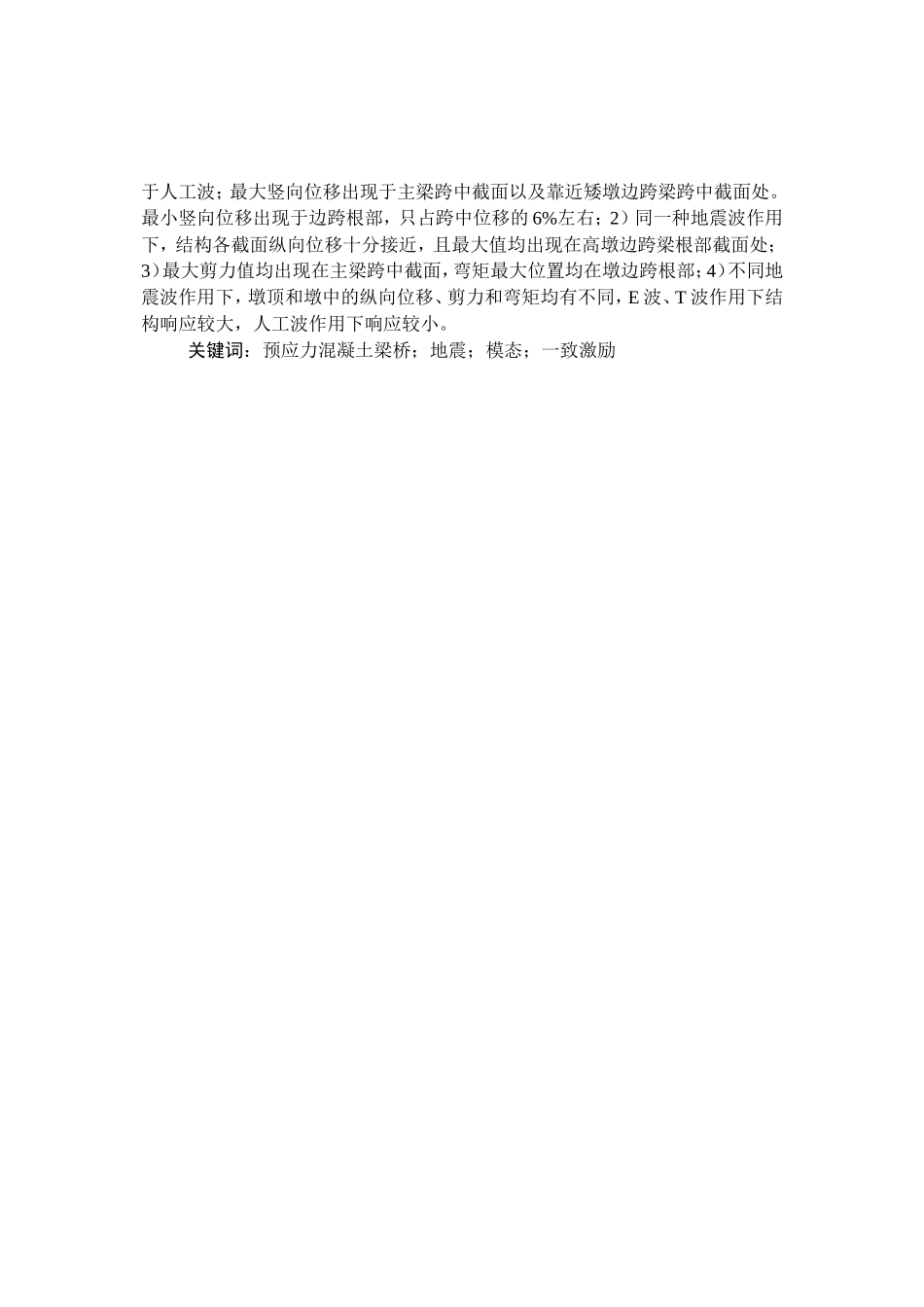

潼河桥连续梁桥抗震设计研究分析 桥隧管理专业_第2页
2/77

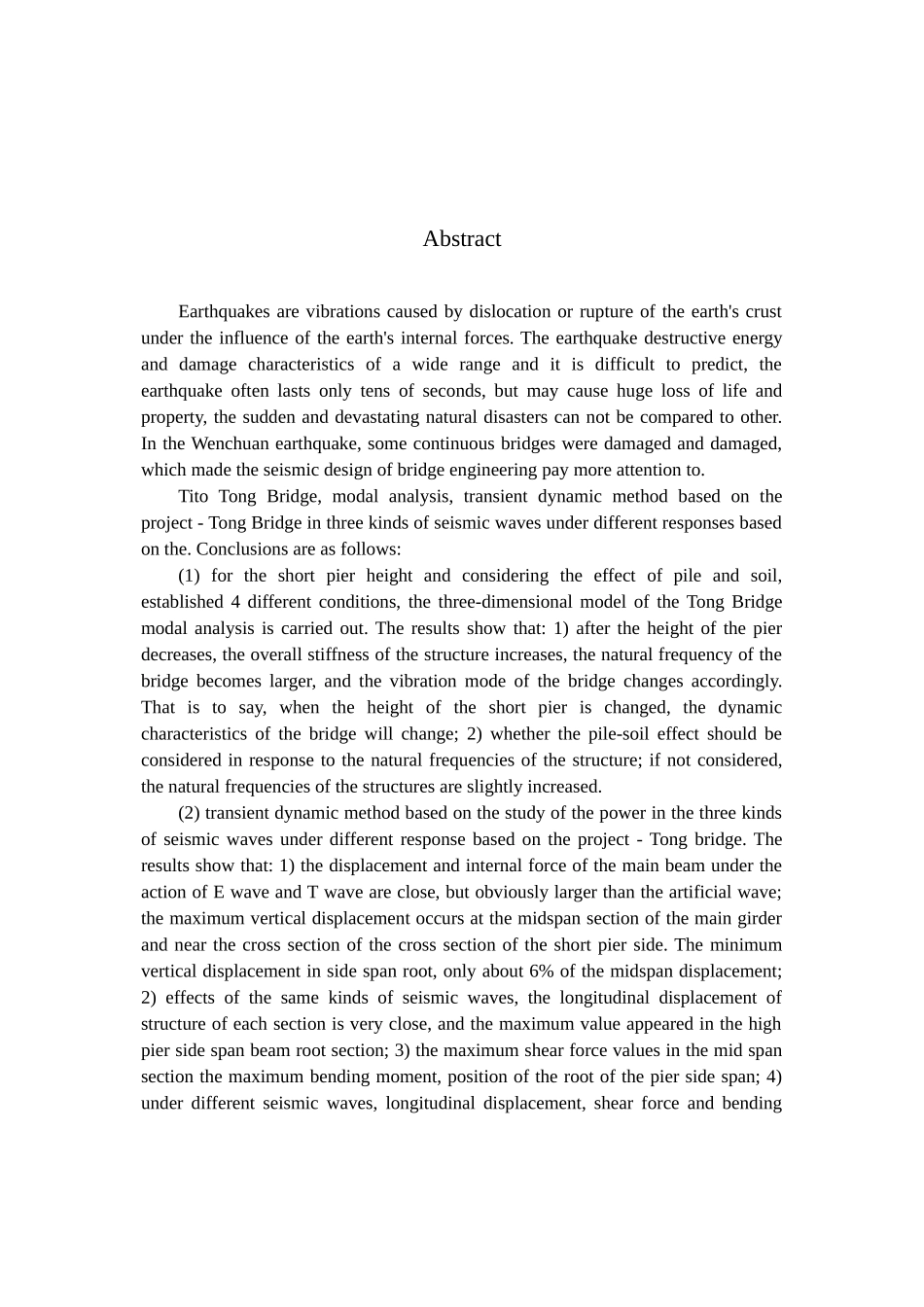

潼河桥连续梁桥抗震设计研究分析 桥隧管理专业_第3页
3/77
潼河桥(64+108+108+64)连续梁桥抗震设计研究TongBridge(64+108+108+64)onseismicdesignofcontinuousgirderbridge摘要地壳岩石在地球内力的作用下,发生错位或断裂,从而导致的震动,这种效果就叫做地震。地震在发生破坏时,兼具能量大、范围广和难以预测等特点,在地震几十秒的持续作用时间内,能够造成巨大的生命及财产损失,与其他自然灾害相比,其突发性和破坏性的特点尤为突出。汶川地震中部分连续桥梁受损破坏,使桥梁工程的抗震设计获得了重视。提托潼河桥,基于模态分析、瞬态动力法研究了依托工程-潼桥在三种不同的地震波作用下的动力响应。获得结论如下:(1)针对矮墩高度以及是否考虑桩土效应,建立了4种不同工况,对潼河桥三维模型进行了模态分析。结果表明:1)矮墩高度减小后,结构整体刚度增加,桥梁自振频率随之变大,并且桥的振型也随之改变。即:矮墩高度变化后,桥梁的动力特性随之改变;2)是否考虑桩土效应对结构自振频率有影响,若不考虑,结构的各阶自振频率略有升高。(2)基于瞬态动力法研究了依托工程-潼桥在三种不同的地震波作用下的动力响应。结果表明:1)E波与T波作用下主梁的位移及内力较为接近,但明显大于人工波;最大竖向位移出现于主梁跨中截面以及靠近矮墩边跨梁跨中截面处。最小竖向位移出现于边跨根部,只占跨中位移的6%左右;2)同一种地震波作用下,结构各截面纵向位移十分接近,且最大值均出现在高墩边跨梁根部截面处;3)最大剪力值均出现在主梁跨中截面,弯矩最大位置均在墩边跨根部;4)不同地震波作用下,墩顶和墩中的纵向位移、剪力和弯矩均有不同,E波、T波作用下结构响应较大,人工波作用下响应较小。关键词:预应力混凝土梁桥;地震;模态;一致激励AbstractEarthquakesarevibrationscausedbydislocationorruptureoftheearth'scrustundertheinfluenceoftheearth'sinternalforces.Theearthquakedestructiveenergyanddamagecharacteristicsofawiderangeanditisdifficulttopredict,theearthquakeoftenlastsonlytensofseconds,butmaycausehugelossoflifeandproperty,thesuddenanddevastatingnaturaldisasterscannotbecomparedtoother.IntheWenchuanearthquake,somecontinuousbridgesweredamagedanddamaged,whichmadetheseismicdesignofbridgeengineeringpaymoreattentionto.TitoTongBridge,modalanalysis,transientdynamicmethodbasedontheproject-TongBridgeinthreekindsofseismicwavesunderdifferentresponsesbasedonthe.Conclusionsareasfollows:(1)fortheshortpierheightandconsideringtheeffectofpileandsoil,established4differentconditions,thethree-dimensionalmodeloftheTongBridgemodalanalysisiscarriedout.Theresultsshowthat:1)aftertheheightofthepierdecreases,theoverallstiffnessofthestructureincreases,thenaturalfrequencyofthebridgebecomeslarger,andthevibrationmodeofthebridgechangesaccordingly.Thatistosay,whentheheightoftheshortpierischanged,thedynamiccharacteristicsofthebridgewillchange;2)whetherthepile-soileffectshouldbeconsideredinresponsetothenaturalfrequenciesofthestructure;ifnotconsidered,thenaturalfrequenciesofthestructuresareslightlyincreased.(2)transientdynamicmethodbasedonthestudyofthepowerinthethreekindsofseismicwavesunderdifferentresponsebasedontheproject-Tongbridge.Theresultsshowthat:1)thedisplacementandinternalforceofthemainbeamundertheactionofEwaveandTwaveareclose,butobviouslylargerthantheartificialwave;themaximumverticaldisplacementoccursatthemidspansectionofthemaingirderandnearthecrosssectionofthecrosssectionoftheshortpierside.Theminimumverticaldisplacementinsidespanroot,onlyabout6%ofthemidspandisplacement;2)effectsofthesamekindsofseismicwaves,thelongitudinaldisplacementofstructureofeachsectionisveryclose,andthemaximumvalueappearedinthehighpiersidespanbeamrootsection;3)themaximumshearforcevaluesinth...
