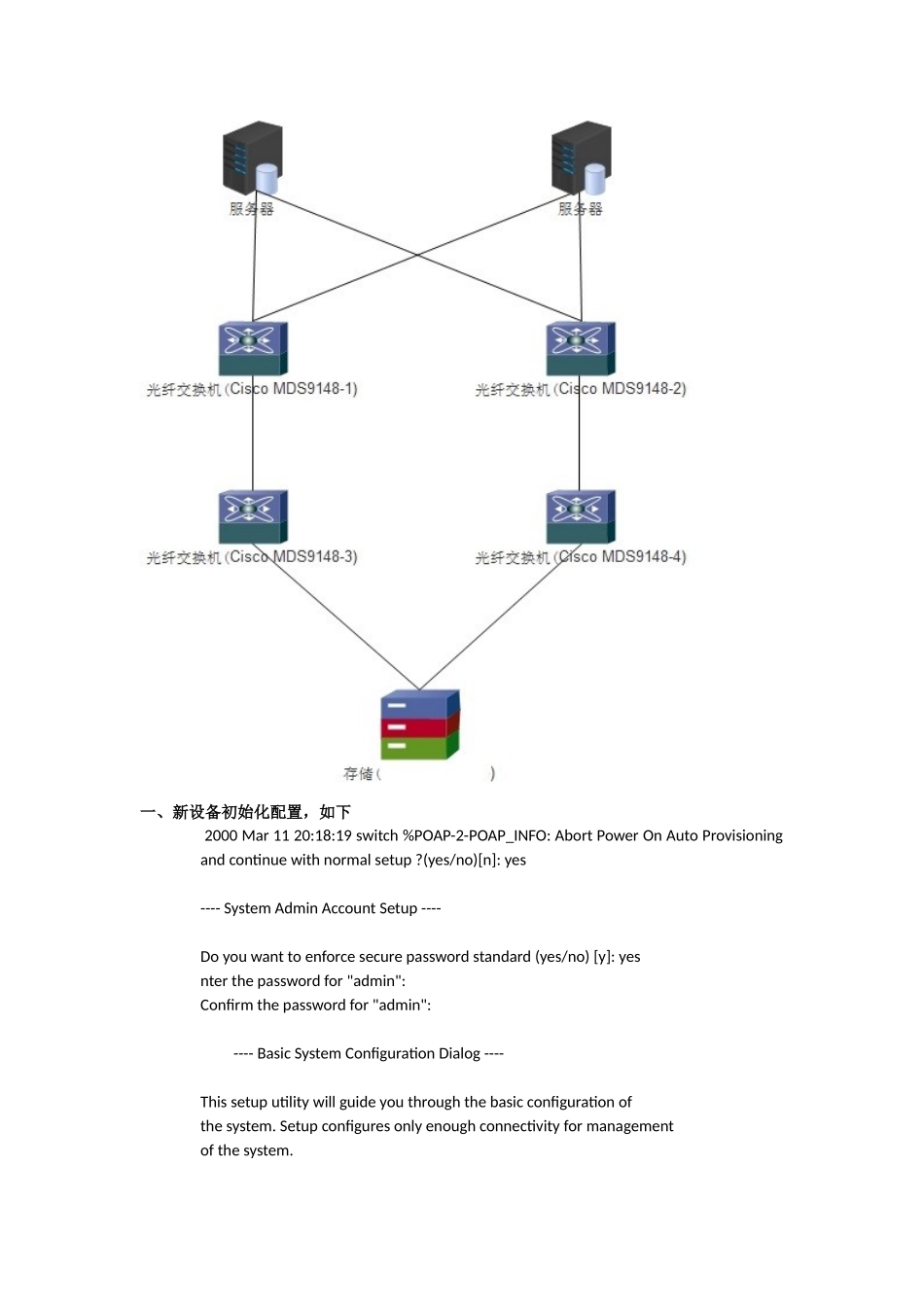

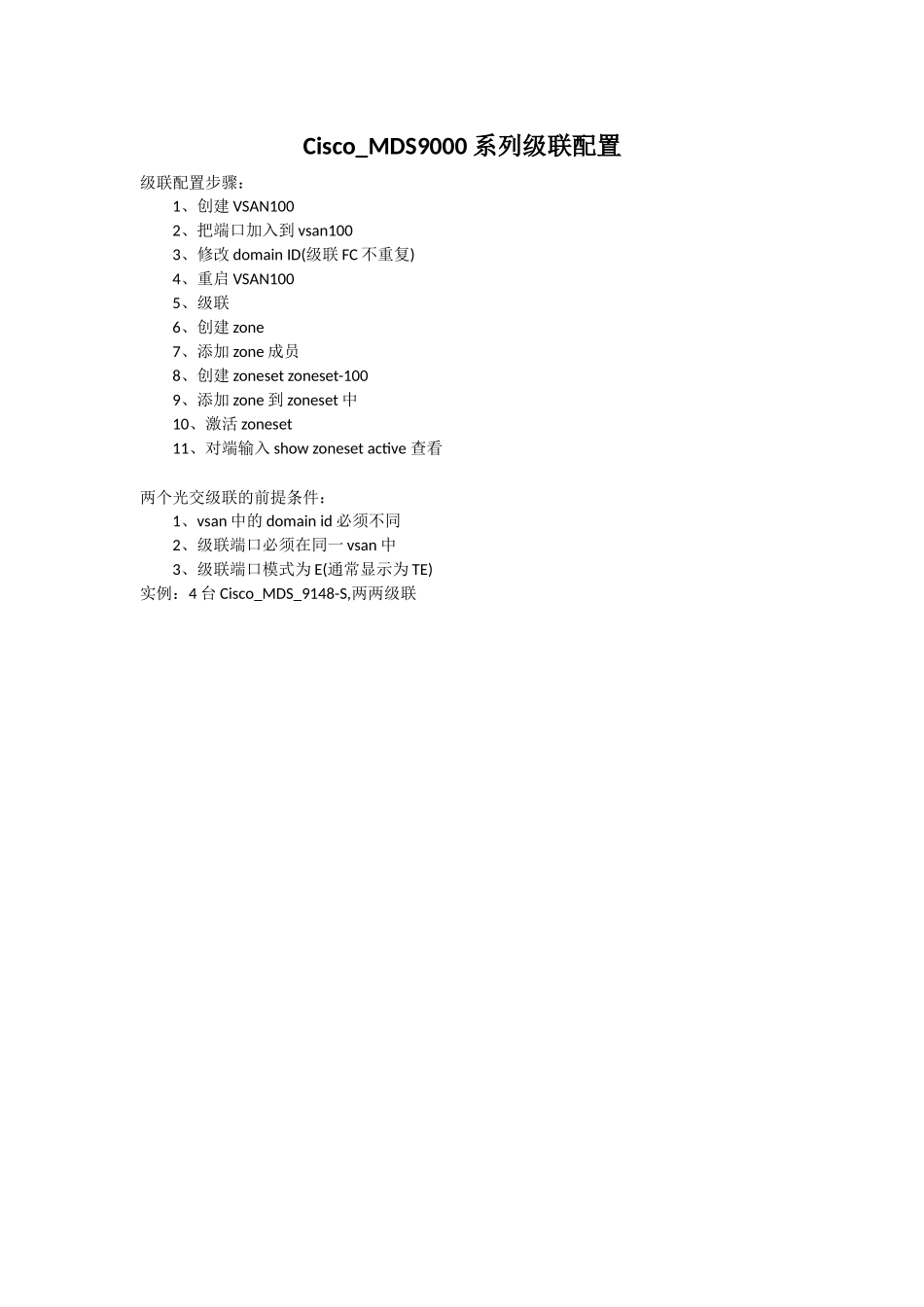

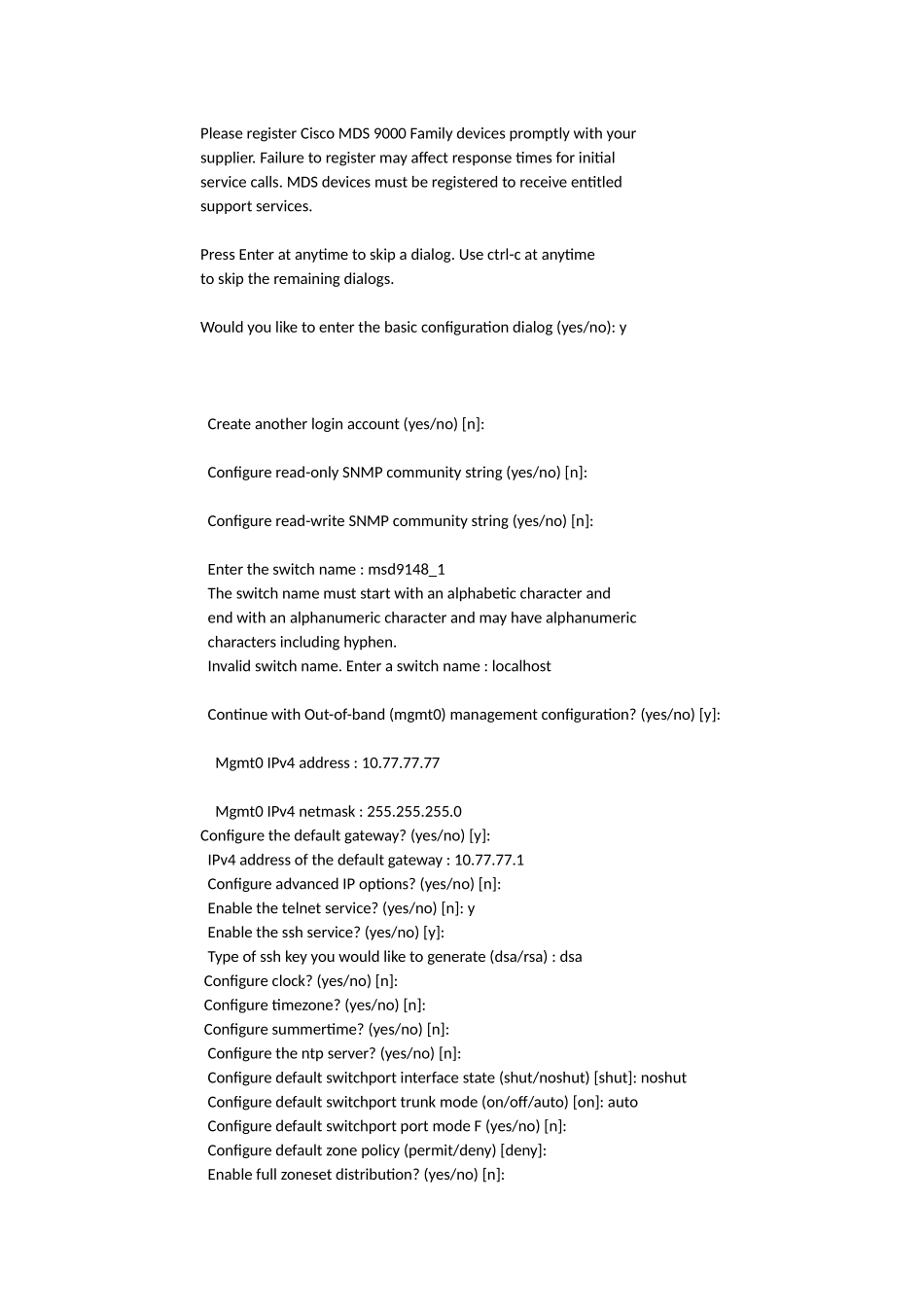

Cisco_MDS9000 系列级联配置级联配置步骤：1、创建 VSAN1002、把端口加入到 vsan1003、修改 domain ID(级联 FC 不重复)4、重启 VSAN1005、级联6、创建 zone 7、添加 zone 成员8、创建 zoneset zoneset-1009、添加 zone 到 zoneset 中10、激活 zoneset 11、对端输入 show zoneset active 查看两个光交级联的前提条件：1、vsan 中的 domain id 必须不同2、级联端口必须在同一 vsan 中3、级联端口模式为 E(通常显示为 TE)实例：4 台 Cisco_MDS_9148-S,两两级联一、新设备初始化配置，如下 2000 Mar 11 20:18:19 switch %POAP-2-POAP_INFO: Abort Power On Auto Provisioning and continue with normal setup ?(yes/no)[n]: yes---- System Admin Account Setup ----Do you want to enforce secure password standard (yes/no) [y]: yes nter the password for "admin":Confirm the password for "admin": ---- Basic System Configuration Dialog ----This setup utility will guide you through the basic configuration ofthe system. Setup configures only enough connectivity for managementof the system.Please register Cisco MDS 9000 Family devices promptly with yoursupplier. Failure to register may affect response times for initialservice calls. MDS devices must be registered to receive entitled support services.Press Enter at anytime to skip a dialog. Use ctrl-c at anytimeto skip the remaining dialogs.Would you like to enter the basic configuration dialog (yes/no): y Create another login account (yes/no) [n]: Configure read-only SNMP community string (yes/no) [n]: Configure read-write SNMP community string (yes/no) [n]: Enter the switch name : msd9148_1 The switch name must start with an alphabetic character and end with an alphanumeric character and may have alphanumeric characters including hyphen. Invalid switch name. Enter a switch name : localhost Continue with Out-of-band (mgmt0) management configuration? (yes/no) [y]...
