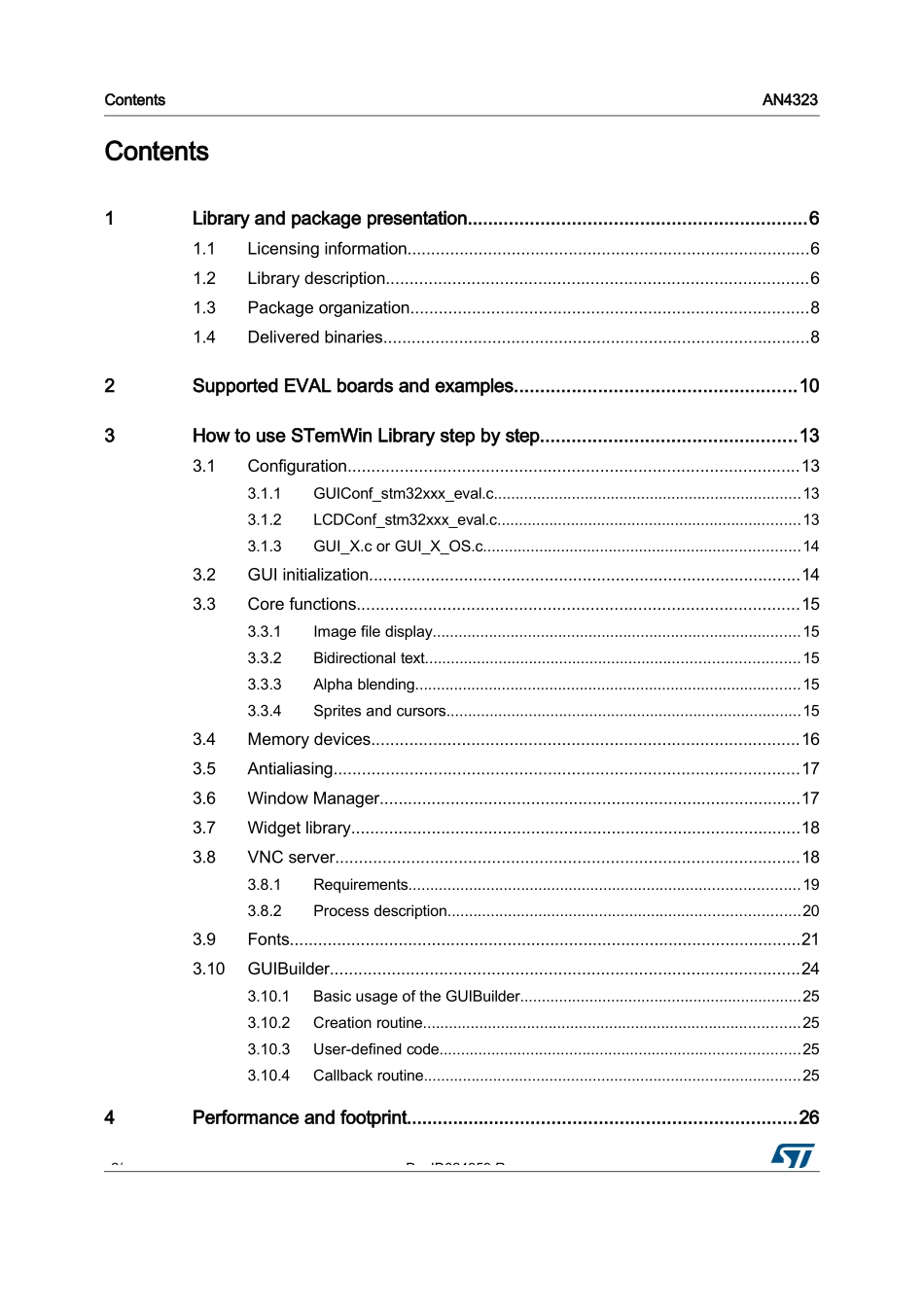

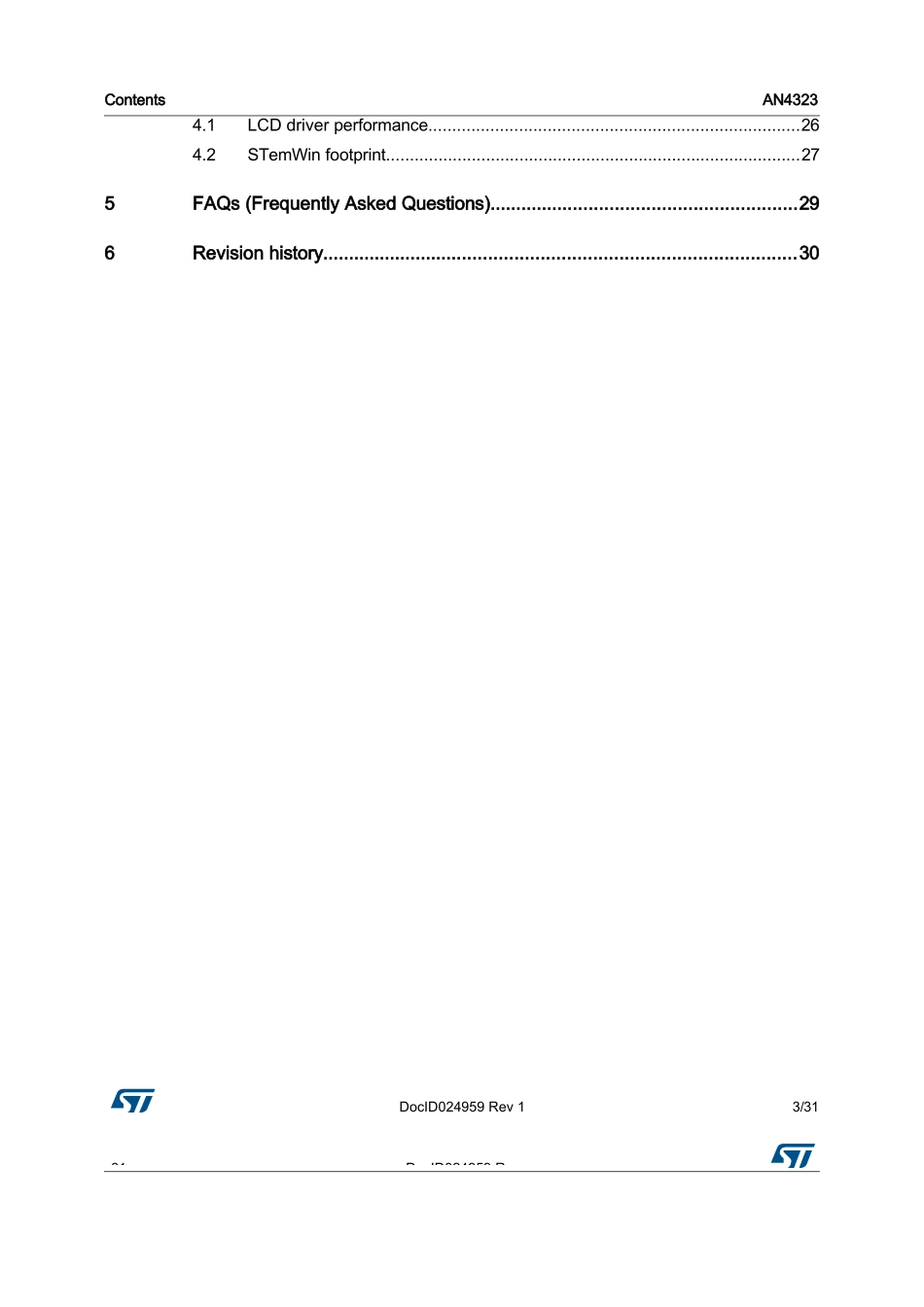

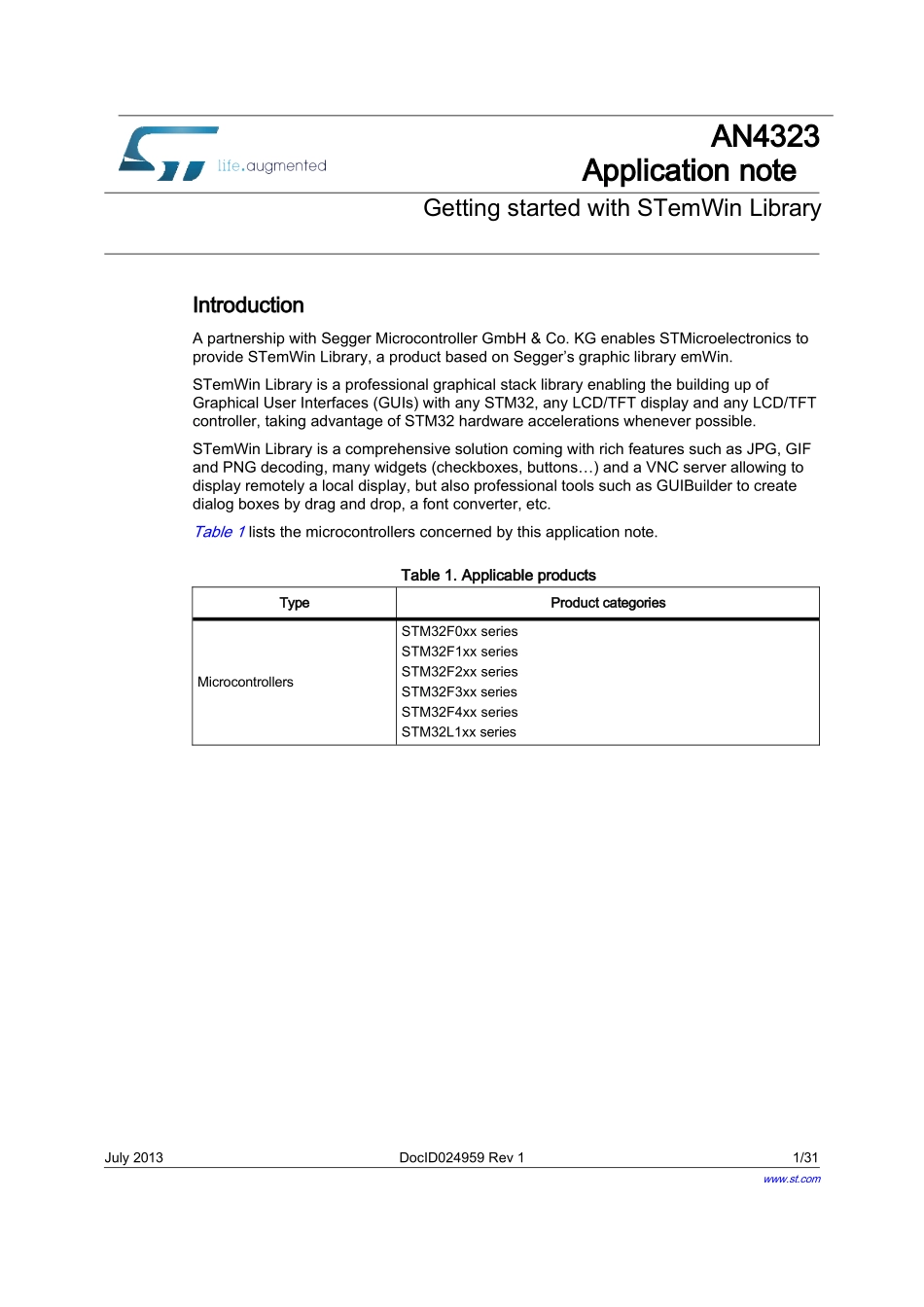

AN4323Application noteGetting started with STemWin LibraryIntroductionA partnership with Segger Microcontroller GmbH & Co. KG enables STMicroelectronics to provide STemWin Library, a product based on Segger’s graphic library emWin.STemWin Library is a professional graphical stack library enabling the building up of Graphical User Interfaces (GUIs) with any STM32, any LCD/TFT display and any LCD/TFT controller, taking advantage of STM32 hardware accelerations whenever possible.STemWin Library is a comprehensive solution coming with rich features such as JPG, GIF and PNG decoding, many widgets (checkboxes, buttons…) and a VNC server allowing to display remotely a local display, but also professional tools such as GUIBuilder to create dialog boxes by drag and drop, a font converter, etc.Table 1 lists the microcontrollers concerned by this application note.Table 1. Applicable productsTypeProduct categoriesMicrocontrollersSTM32F0xx series STM32F1xx series STM32F2xx series STM32F3xx seriesSTM32F4xx series STM32L1xx seriesJuly 2013DocID024959 Rev 11/31www.st.comContentsAN43232/DocID024959 Rev Contents1Library and package presentation.................................................................61.1Licensing information.....................................................................................61.2Library description.........................................................................................61.3Package organization....................................................................................81.4Delivered binaries..........................................................................................82Supported EVAL boards and examples......................................................103How to use STemWin Library step by step.................................................133.1C...
