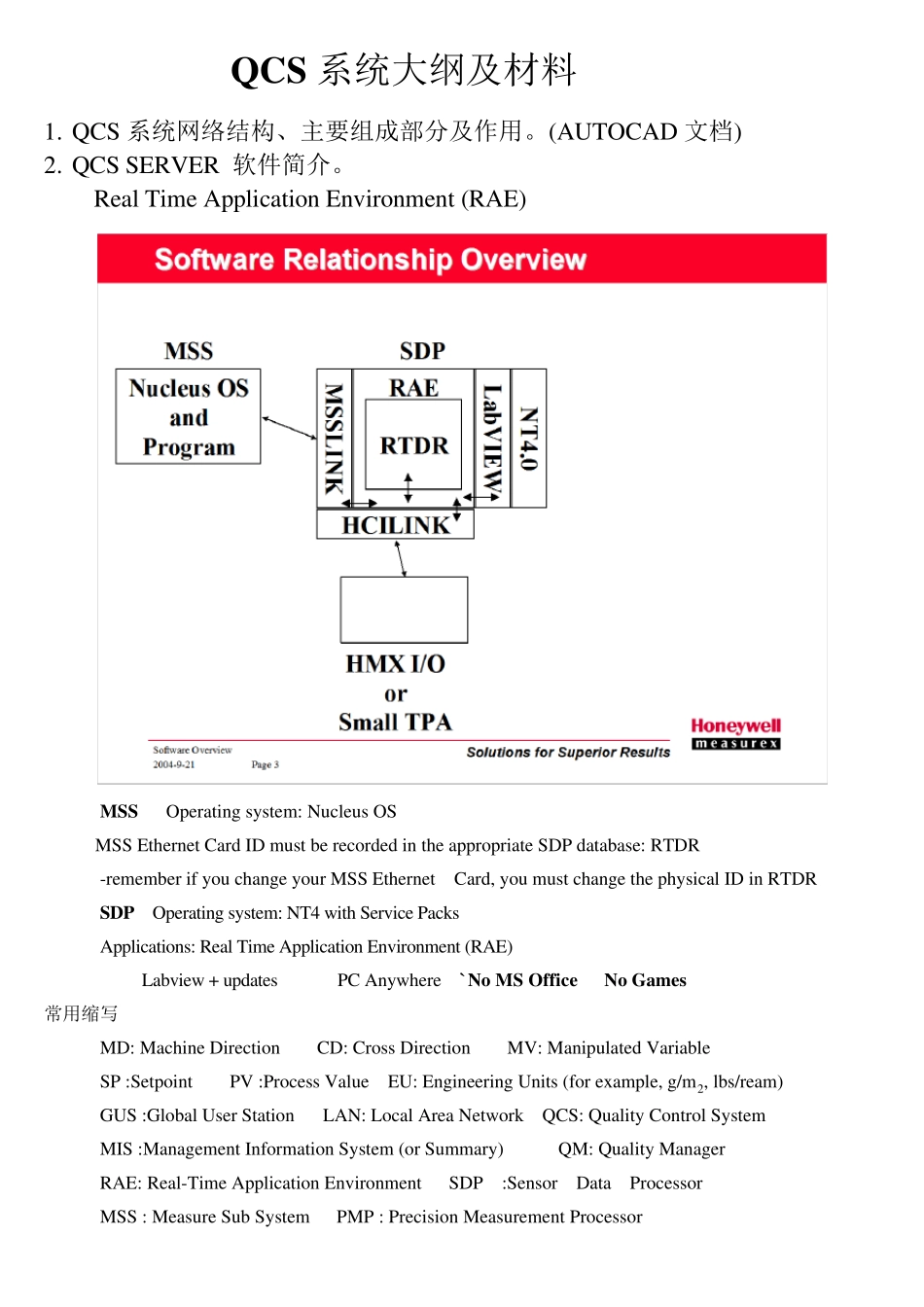

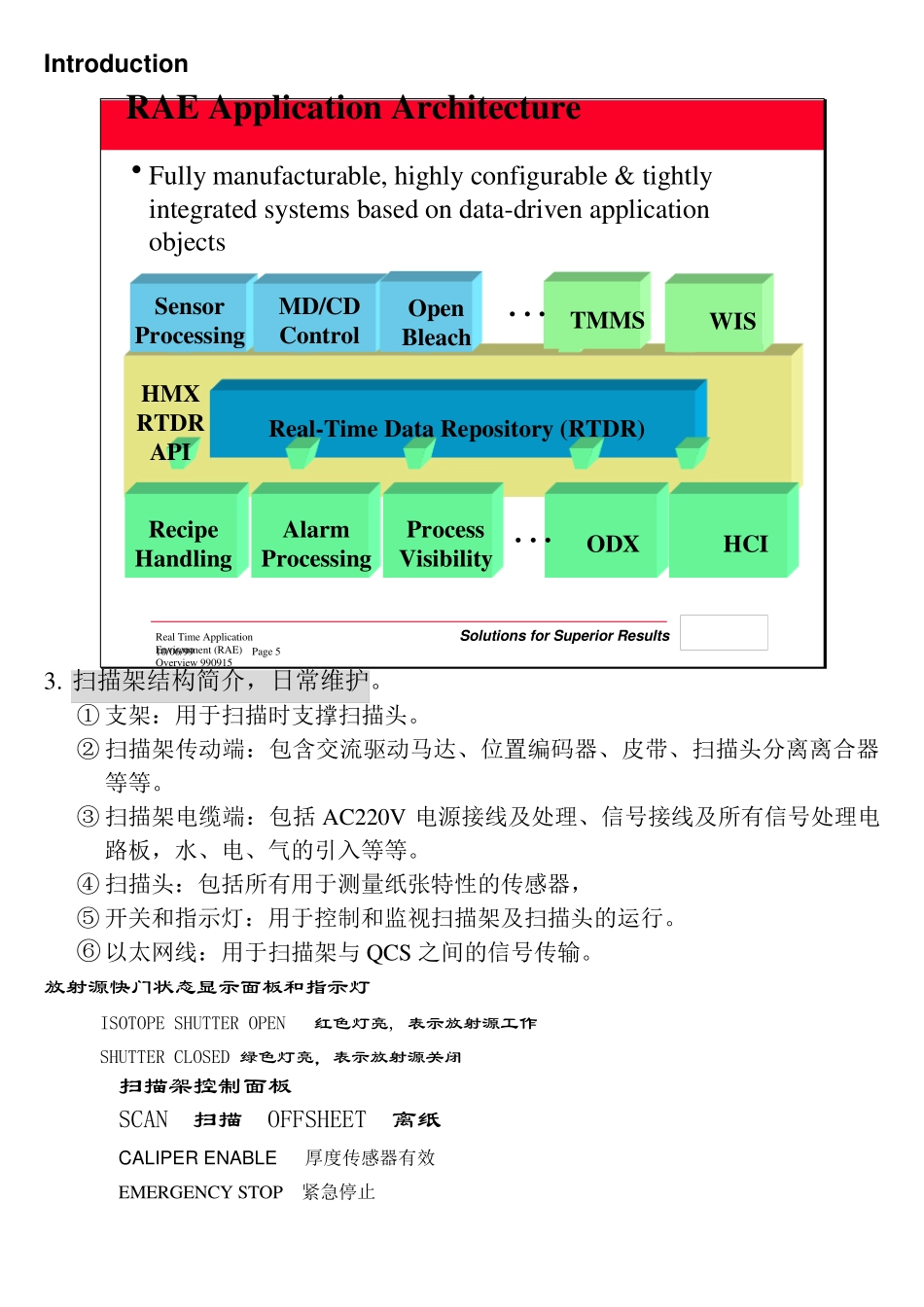

QCS 系统大纲及材料 1. QCS 系统网络结构、主要组成部分及作用。(AUTOCAD 文档) 2. QCS SERVER 软件简介。 Real Time Application Environment (RAE) MSS Operating system: Nucleus OS MSS Ethernet Card ID must be recorded in the appropriate SDP database: RTDR -remember if you change your MSS Ethernet Card, you must change the physical ID in RTDR SDP Operating system: NT4 with Service Packs Applications: Real Time Application Environment (RAE) Labview + updates PC Anywhere ` No MS Office No Games 常用缩写 MD: Machine Direction CD: Cross Direction MV: Manipulated Variable SP :Setpoint PV :Process Value EU: Engineering Units (for example, g/m2, lbs/ream) GUS :Global User Station LAN: Local Area Network QCS: Quality Control System MIS :Management Information System (or Summary) QM: Quality Manager RAE: Real-Time Application Environment SDP :Sensor Data Processor MSS : Measure Sub System PMP : Precision Measurement Processor Introdu ction Solu tions for Su perior Resu lts10/06/99Real Time Application Environment (RAE) Overview 990915Page 5RAE Application ArchitectureHMXRTDRAPI. . .Real-Time Data Repository (RTDR)RecipeHandlingAlarmProcessingProcessVisibility• Fullymanufacturable, highly configurable & tightly integrated systems based on data-driven application objectsSensorProcessingMD/CDControlOpenBleachTMMSWIS. . .ODXHCI 3. 扫描架结构简介，日常维护。 ① 支架：用于扫描时支撑扫描头。 ② 扫描架传动端：包含交流驱动马达、位置编码器、皮带、扫描头分离离合器等等。 ③ 扫描架电缆端：包括 AC220V 电源接线及处理、信号接线及所有信号处理电路板，水、电、气的引入等等。 ④ 扫描头：包括所有用于测量纸张特性的传感器， ⑤ 开关和指示灯：用于控制和监视扫描架及扫描头的运行。 ⑥ 以太网线：用于扫描架与 QCS 之间的信号传输。 放射源快门状态显示面板和指示灯 ISOTOPE SHUTTER OPEN 红色灯亮, 表示放射源工作 SHUTTER CLO...
