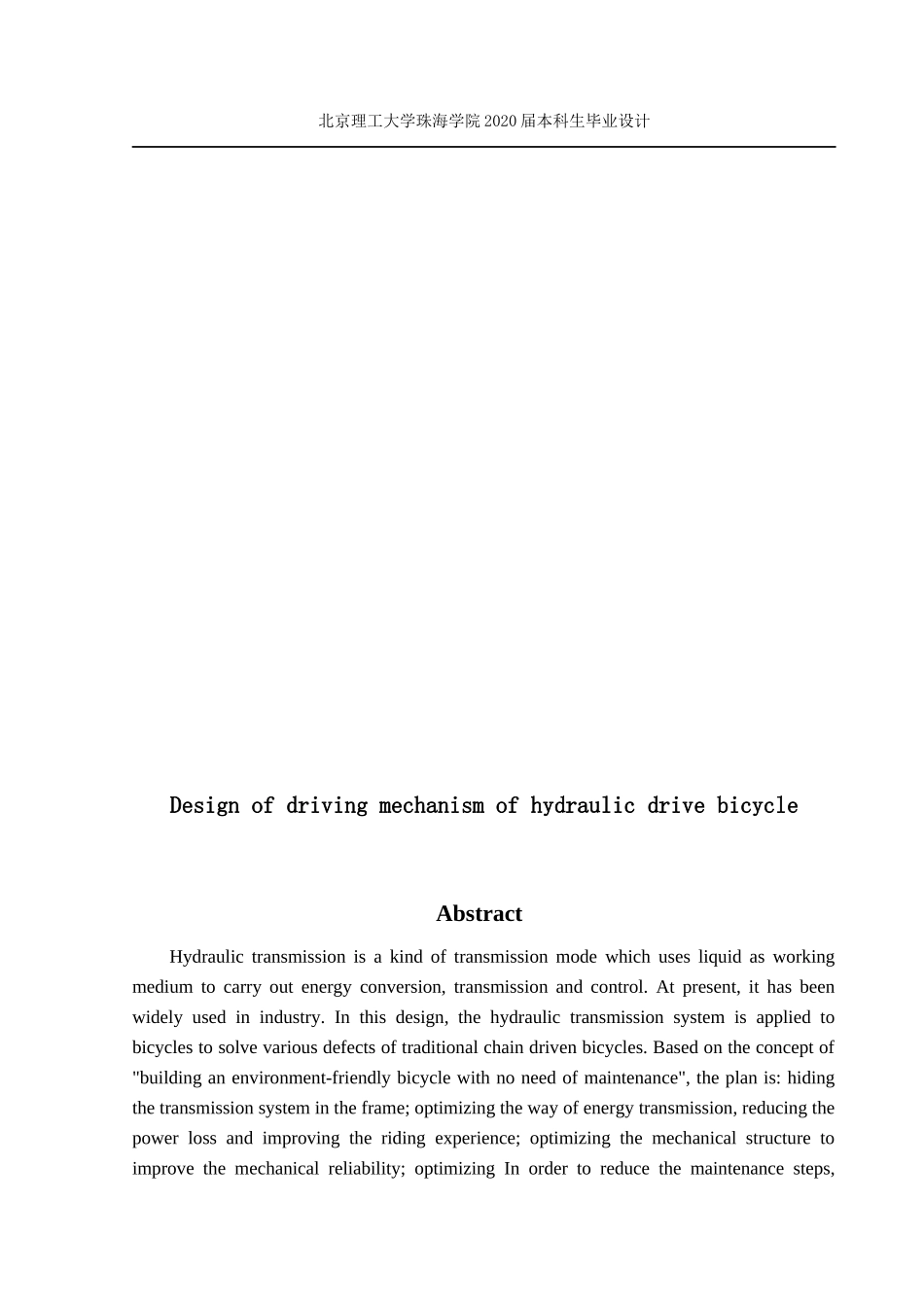

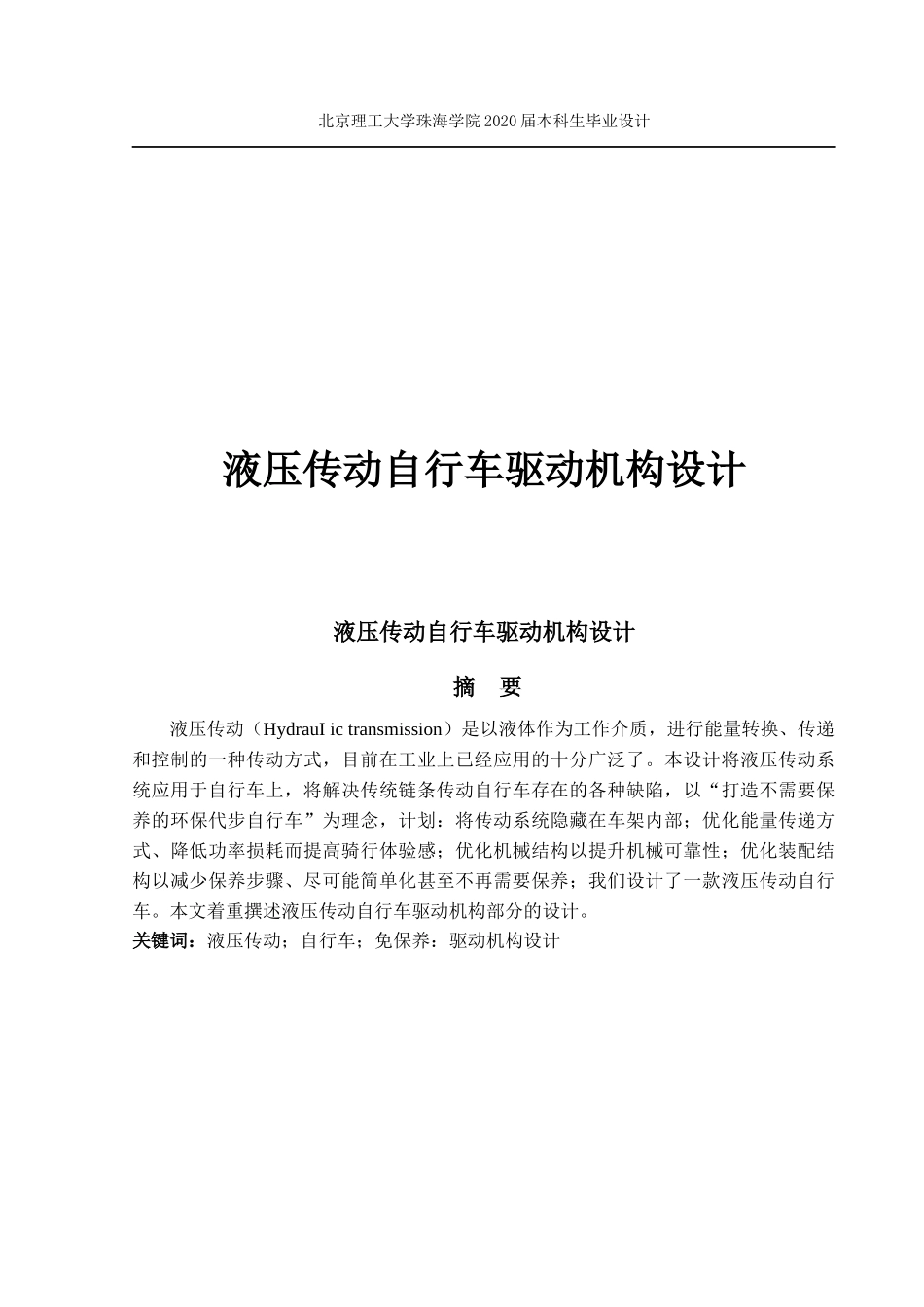

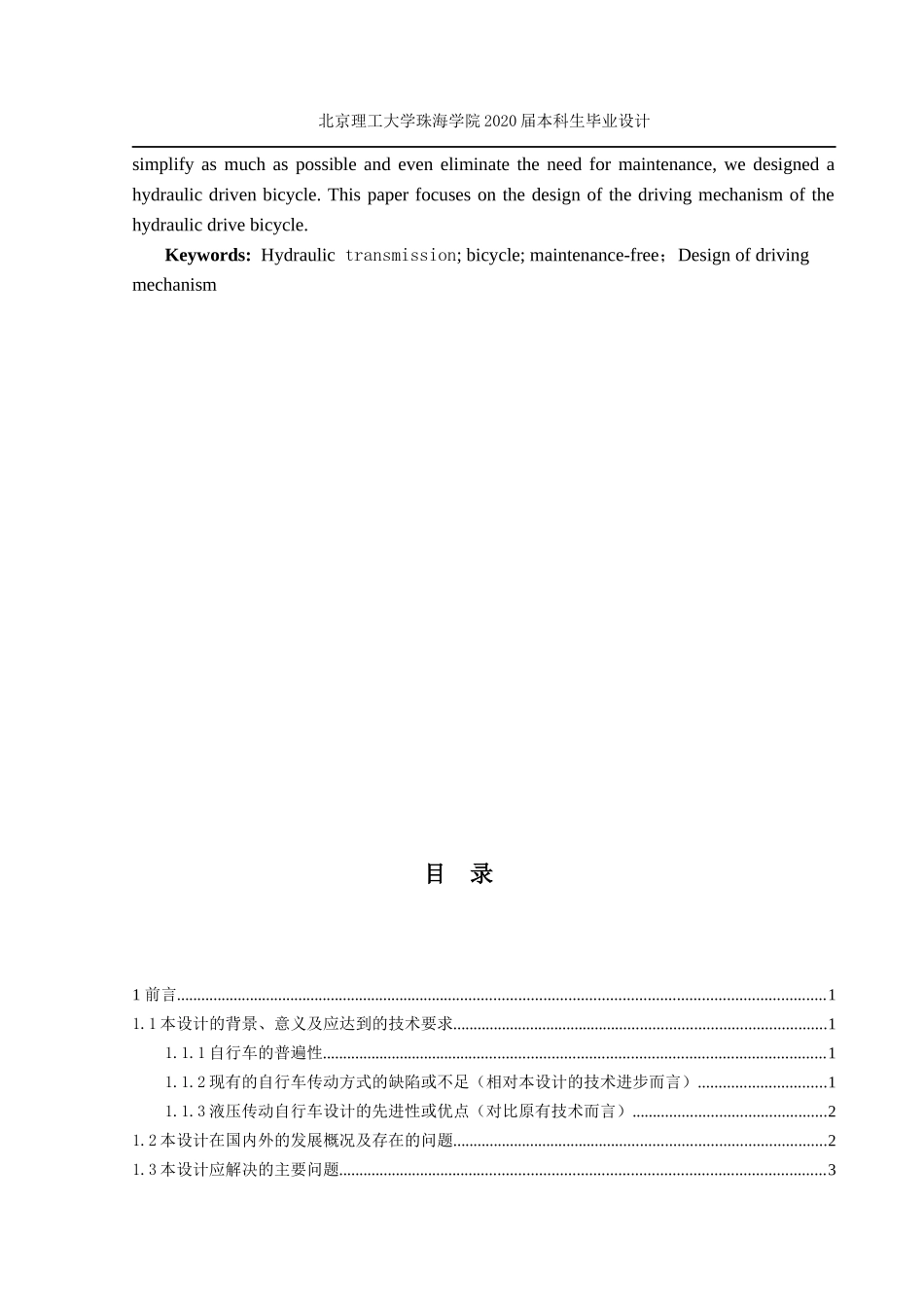

北京理工大学珠海学院 2020 届本科生毕业设计液压传动自行车驱动机构设计液压传动自行车驱动机构设计摘 要液压传动（HydrauI ic transmission）是以液体作为工作介质，进行能量转换、传递和控制的一种传动方式，目前在工业上已经应用的十分广泛了。本设计将液压传动系统应用于自行车上，将解决传统链条传动自行车存在的各种缺陷，以“打造不需要保养的环保代步自行车”为理念，计划：将传动系统隐藏在车架内部；优化能量传递方式、降低功率损耗而提高骑行体验感；优化机械结构以提升机械可靠性；优化装配结构以减少保养步骤、尽可能简单化甚至不再需要保养；我们设计了一款液压传动自行车。本文着重撰述液压传动自行车驱动机构部分的设计。关键词：液压传动；自行车；免保养：驱动机构设计 北京理工大学珠海学院 2020 届本科生毕业设计Design of driving mechanism of hydraulic drive bicycleAbstractHydraulic transmission is a kind of transmission mode which uses liquid as working medium to carry out energy conversion, transmission and control. At present, it has been widely used in industry. In this design, the hydraulic transmission system is applied to bicycles to solve various defects of traditional chain driven bicycles. Based on the concept of "building an environment-friendly bicycle with no need of maintenance", the plan is: hiding the transmission system in the frame; optimizing the way of energy transmission, reducing the power loss and improving the riding experience; optimizing the mechanical structure to improve the mechanical reliability; optimizing In order to reduce the maintenance steps, 北京理工大学珠海学院 2020 届本科生毕业设计simplify as much as possible and even eliminate the need for maintenance, we designed a hydraulic driven bicycle. This paper focuses on the design of the driving mechanism of the hydraulic drive bicycle.Keywords: Hydraulic transmission; bicycle; maintenance-free；Design of driving mechanism目 录1 前言...........................
