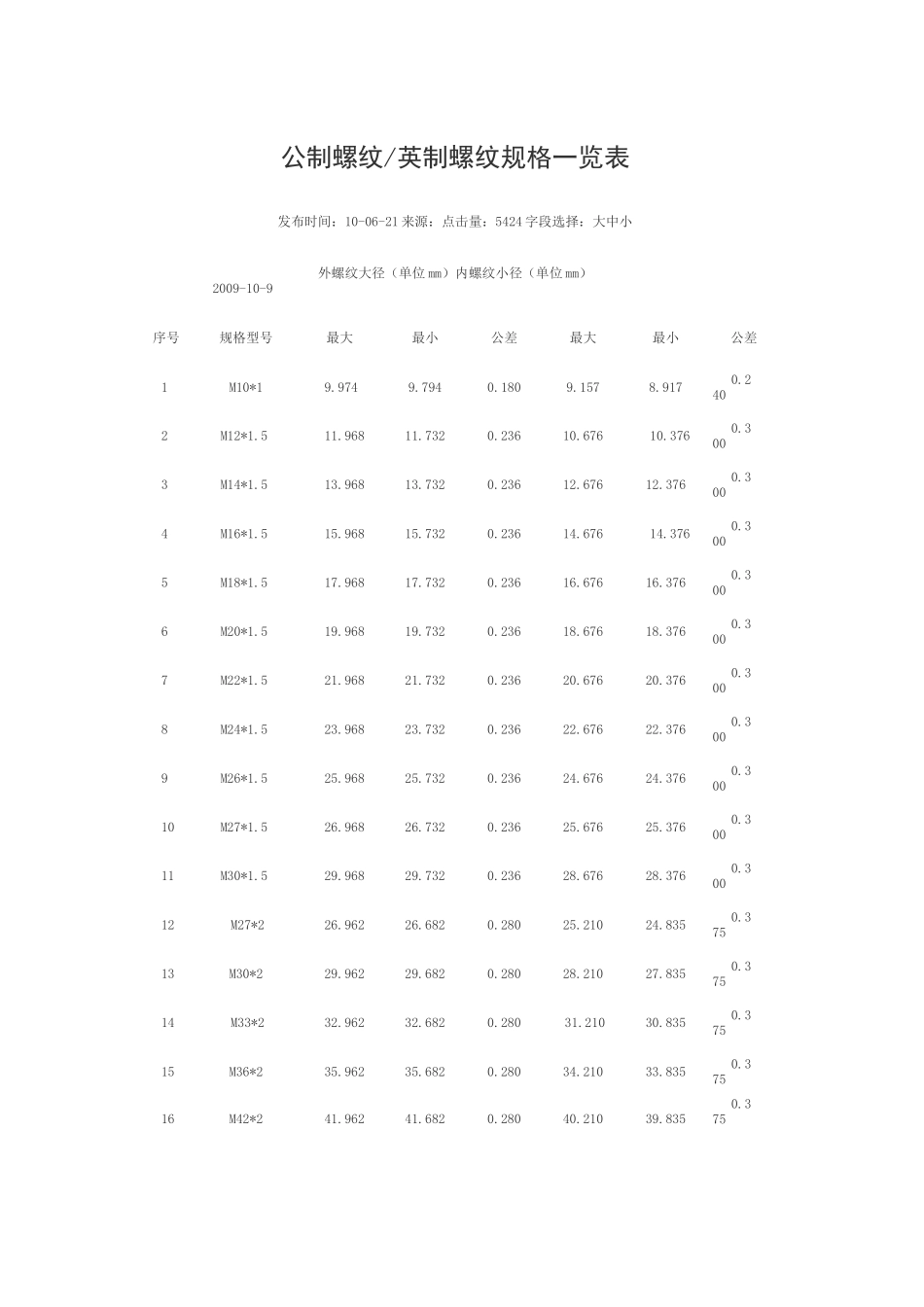

公制螺纹英制螺纹规格一览表

公制螺纹/英制螺纹规格一览表发布时间：10-06-21 来源：点击量：5424 字段选择：大中小外螺纹大径（单位 mm）内螺纹小径（单位 mm）2009-10-9序号规格型号最大最小公差最大最小公差1M10*19.9749.7940.1809.1578.9170.2402M12*1.511.96811.7320.23610.67610.3760.3003M14*1.513.96813.7320.23612.67612.3760.3004M16*1.515.96815.7320.23614.67614.3760.3005M18*1.517.96817.7320.23616.67616.3760.3006M20*1.519.96819.7320.23618.67618.3760.3007M22*1.521.96821.7320.23620.67620.3760.3008M24*1.523.96823.7320.23622.67622.3760.3009M26*1.525.96825.7320.23624.67624.3760.30010M27*1.526.96826.7320.23625.67625.3760.30011M30*1.529.96829.7320.23628.67628.3760.30012M27*226.96226.6820.28025.21024.8350.37513M30*229.96229.6820.28028.21027.8350.37514M33*232.96232.6820.28031.21030.8350.37515M36*235.96235.6820.28034.21033.8350.37516M42*241.96241.6820.28040.21039.8350.375英制螺纹规格一览表外螺纹大径（单位 mm）内螺纹小径（单位 mm）序号规格型号最大最小公差最大最小公差1G1/8-289.7289.5140.2148.8488.5660.2822G1/4-1913.15712.9070.25011.89011.4450.4453G3/8-1916.66216.4120.25015.39514.9500.4454G1/2-1420.95520.6710.28419.17218.6310.5415G3/4-1426.44126.1570.28424.65824.1170.5416G1-1133.24932.8890.36030.93130.2910.6407G11/-11441.91041.5500.36039.59238.9520.6408G11/-11247.80347.4430.36045.48544.8450.640类别标准名称标准号普通螺纹普通螺纹基本牙型GB/T192—1981普通螺纹直径与螺距系列GB/T193—1981普通螺纹基本尺寸GB/T196—1981普通螺纹公差与配合GB/T197—1981普通螺纹偏差表GB/T2516—1981商品紧固列件的普通螺纹选用系JB/T7912—1999商品紧固极限尺寸件的中等精度普通螺纹 GB/T9145—1988光学螺纹光学仪器特种细牙螺纹ZBN30006—1988光学仪器用目镜螺纹JB/T8204—1995光学仪器用短牙螺纹JB/T5450-1991紧配合螺纹过渡配合螺纹GB/T1167—1996过盈配合螺纹GB/T1181—1998小螺纹小螺纹牙型GB/T15054.1—1994小螺纹直径与螺距系列GB/T15054.2—1994小螺纹基本尺寸GB/T15054.3—1994小螺纹公差GB/T15054.4-1994小螺纹极限尺寸GB/T15054.5-1994MJ 螺纹町螺纹基本牙型GJB/T3.1—1982MJ 螺 纹螺公差栓与螺母螺纹的尺寸与GJB/T3.2—1982MJ 螺 纹管差路件螺纹的尺寸与公GJB/T3.3—1985MJ ...
