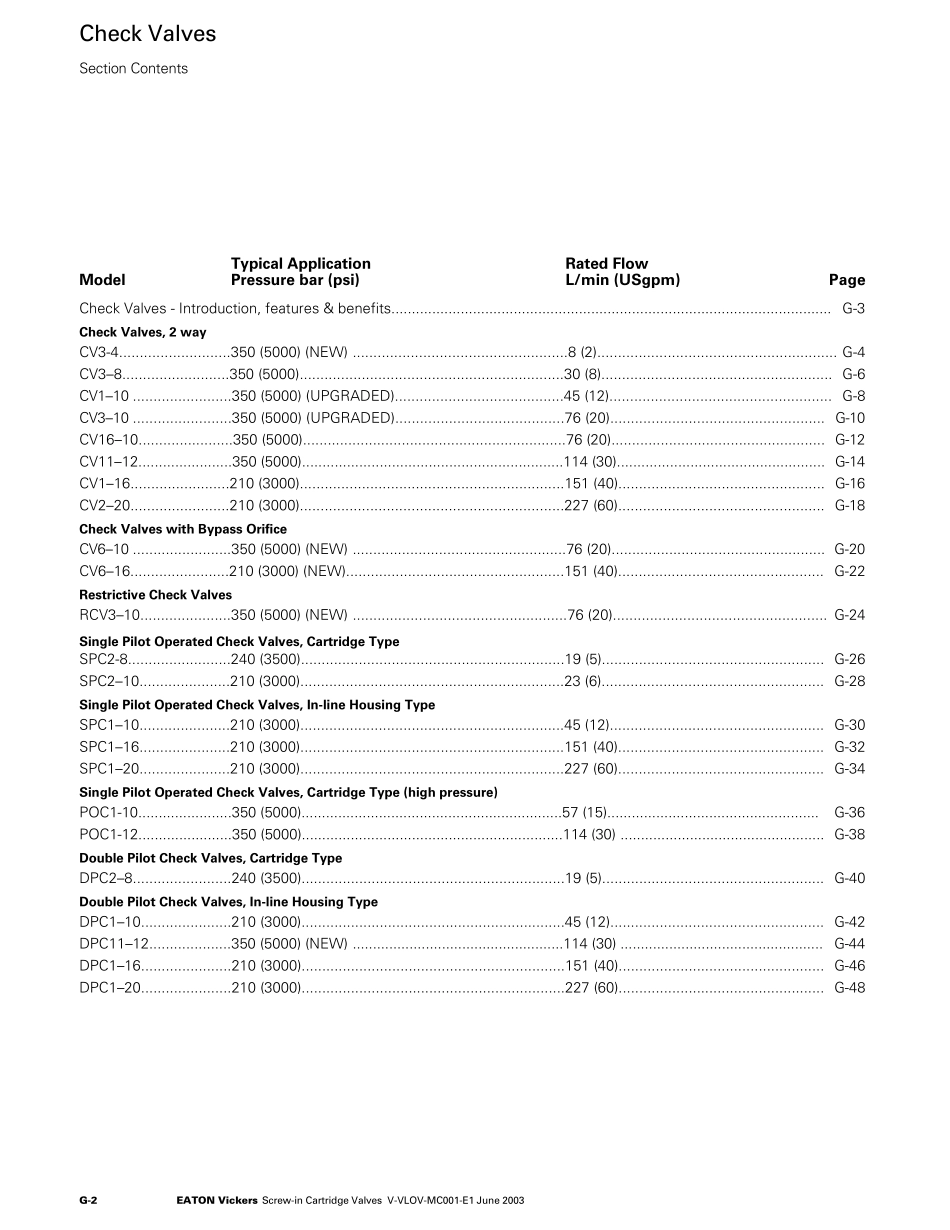

Check ValvesDirect and pilot operated check valve functions for applicationsup to 350 bar (5000 psi) and 227 L/min (60 USgpm)EATON Vickers Screw -in Cartridge Valves V-VLOV-MC001-E1 June 2003G-1GEATON Vickers Screw -in Cartridge Valves V-VLOV-MC001-E1 June 2003G-2Check ValvesSection ContentsTypical ApplicationRated FlowModelPressure bar (psi)L/min (USgpm)PageCheck Valves - Introduction, features & benefits............................................................................................................ G-3Check Valves, 2 wayCV3-4...........................350 (5000) (NEW) ....................................................8 (2).......................................................... G-4CV3–8..........................350 (5000)................................................................30 (8)........................................................ G-6CV1–10 ........................350 (5000) (UPGRADED).........................................45 (12)...................................................... G-8CV3–10 ........................350 (5000) (UPGRADED).........................................76 (20).................................................... G-10CV16–10.......................350 (5000)................................................................76 (20).................................................... G-12CV11–12.......................350 (5000)................................................................114 (30)................................................... G-14CV1–16........................210 (3000)................................................................151 (40).................................................. G-16CV2–20........................210 (3000)................................................................227 (60).................................................. G-18Check Valves with Bypass OrificeCV6–10...
