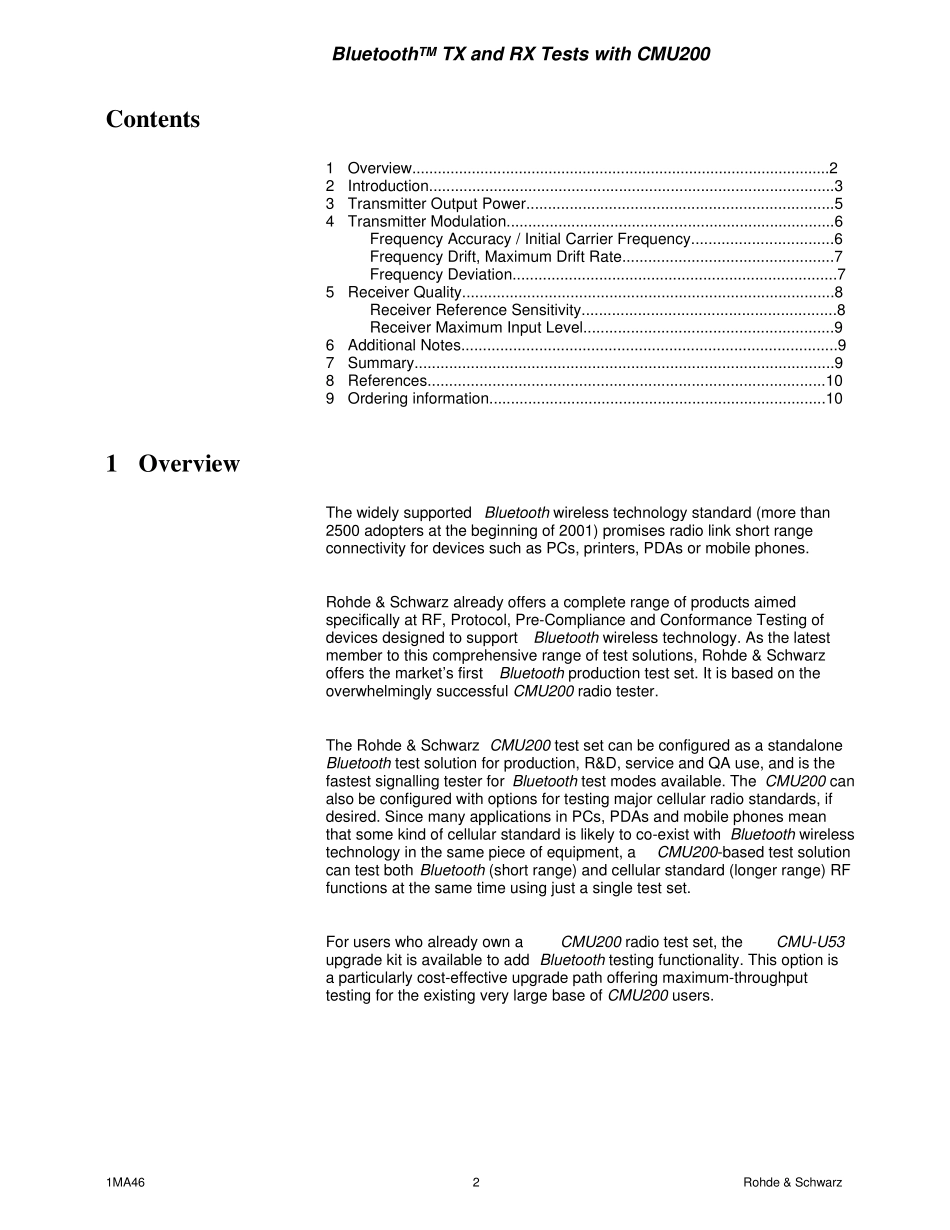

用CMU200在蓝牙模块上进行发送器和接收器测量_第2页
2/10

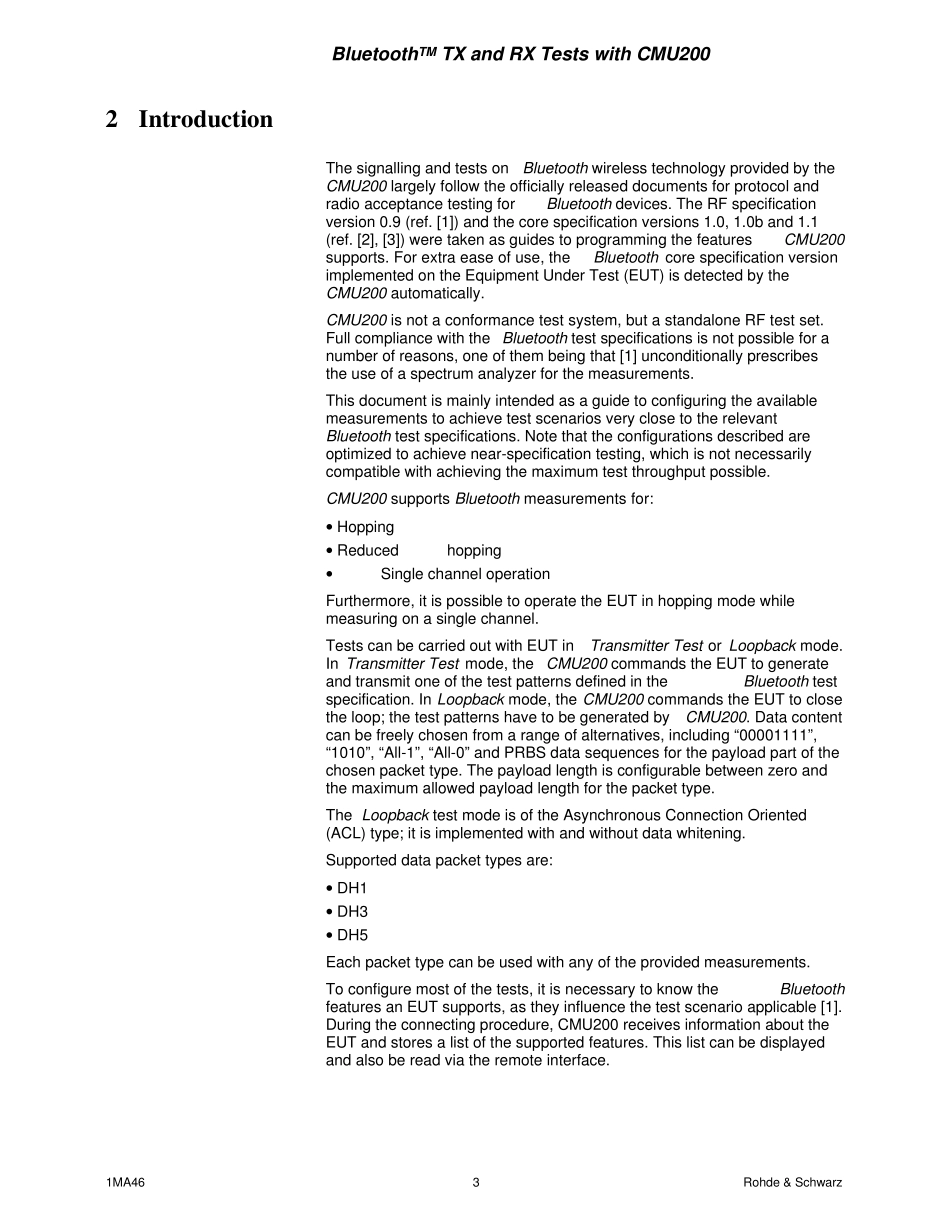

用CMU200在蓝牙模块上进行发送器和接收器测量_第3页
3/10
Subject to change – Gibbemeyer, Liebl - 07/2001 - 1MA46Products: CMU200Transmitter and Receiver Measurementson BluetoothTM Modulesw ith CMU200The Rohde & Schwarz CMU200 test set can be configured as a standalone Bluetooth test solutionfor production, R&D, service and QA use, and is the fastest signalling tester for Bluetooth test modesavailable.This document is intended as a guide to configuring the available measurements to achieve test scenariosvery close to the relevant Bluetooth test specifications.BLUETOOTH is a trademark owned by its proprietor and used by Rohde & Schwarz under license.BluetoothTM TX and RX Tests w ith CMU2001MA462Rohde & SchwarzContents1Overview..................................................................................................22Introduction..............................................................................................33Transmitter Output Power.......................................................................54Transmitter Modulation............................................................................6Frequency Accuracy / Initial Carrier Frequency.................................6Frequency Drift, Maximum Drift Rate.................................................7Frequency Deviation...........................................................................75Receiver Quality......................................................................................8Receiver Reference Sensitivity...........................................................8Receiver Maximum Input Level..........................................................96Additional Notes.......................................................................................97Summary.................................................................................................98References.........................................
