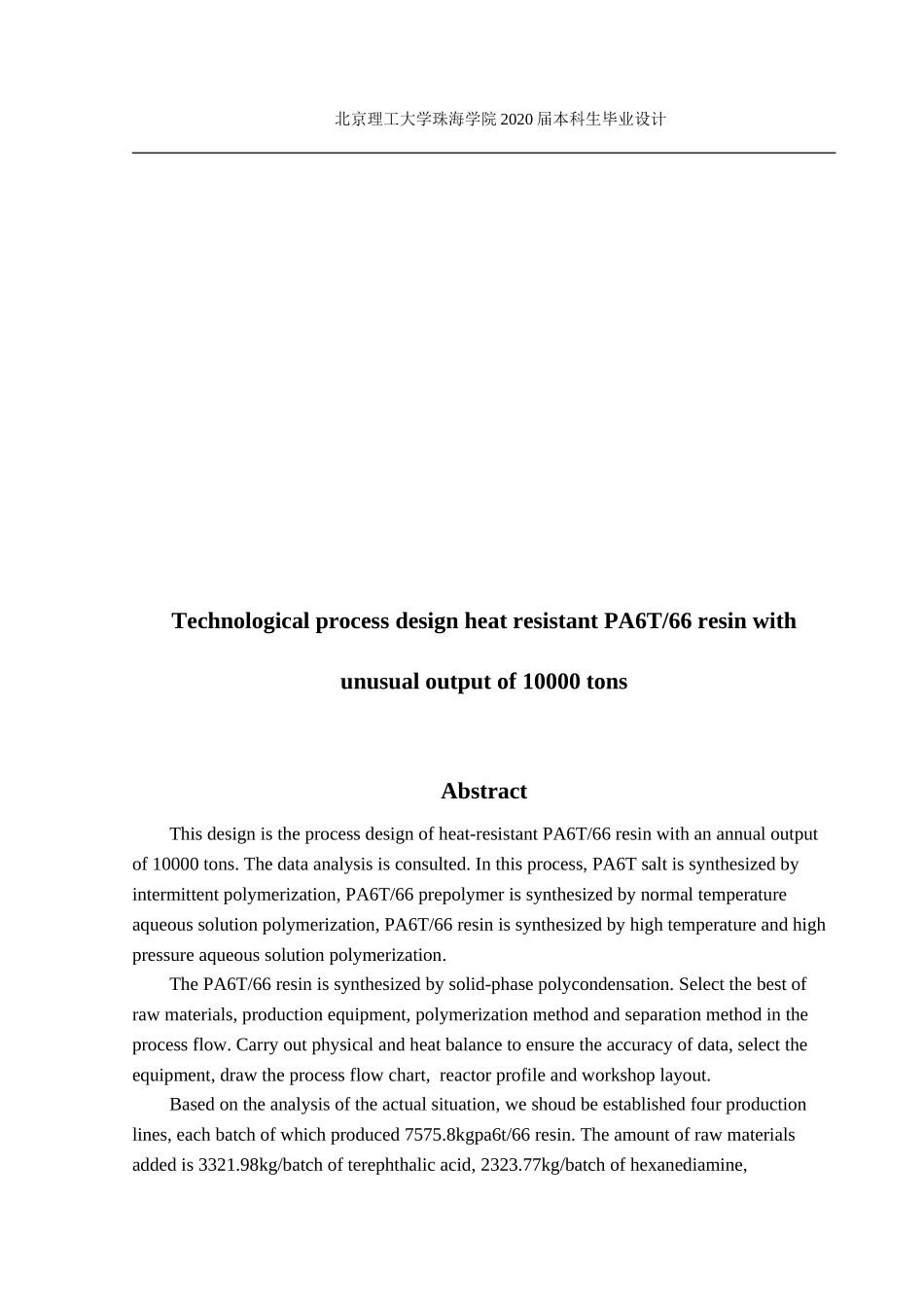

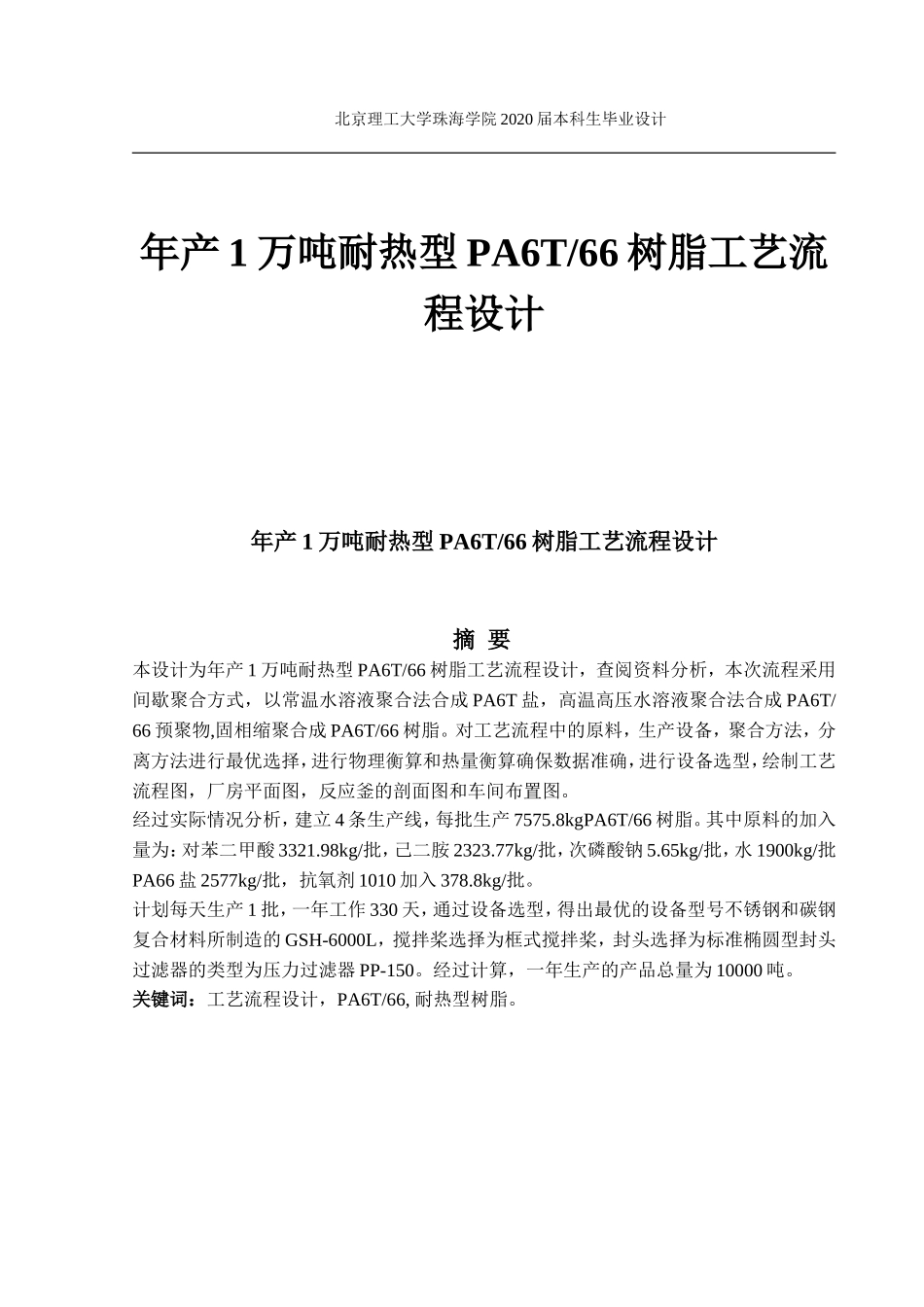

北京理工大学珠海学院 2020 届本科生毕业设计年产 1 万吨耐热型 PA6T/66 树脂工艺流程设计年产 1 万吨耐热型 PA6T/66 树脂工艺流程设计摘 要本设计为年产 1 万吨耐热型 PA6T/66 树脂工艺流程设计,查阅资料分析,本次流程采用间歇聚合方式,以常温水溶液聚合法合成 PA6T 盐,高温高压水溶液聚合法合成 PA6T/66 预聚物,固相缩聚合成 PA6T/66 树脂。对工艺流程中的原料,生产设备,聚合方法,分离方法进行最优选择,进行物理衡算和热量衡算确保数据准确,进行设备选型,绘制工艺流程图,厂房平面图,反应釜的剖面图和车间布置图。经过实际情况分析,建立 4 条生产线,每批生产 7575.8kgPA6T/66 树脂。其中原料的加入量为:对苯二甲酸 3321.98kg/批,己二胺 2323.77kg/批,次磷酸钠 5.65kg/批,水 1900kg/批PA66 盐 2577kg/批,抗氧剂 1010 加入 378.8kg/批。计划每天生产 1 批,一年工作 330 天,通过设备选型,得出最优的设备型号不锈钢和碳钢复合材料所制造的 GSH-6000L,搅拌桨选择为框式搅拌桨,封头选择为标准椭圆型封头过滤器的类型为压力过滤器 PP-150。经过计算,一年生产的产品总量为 10000 吨。关键词:工艺流程设计,PA6T/66, 耐热型树脂。北京理工大学珠海学院 2020 届本科生毕业设计Technological process design heat resistant PA6T/66 resin with unusual output of 10000 tonsAbstractThis design is the process design of heat-resistant PA6T/66 resin with an annual output of 10000 tons. The data analysis is consulted. In this process, PA6T salt is synthesized by intermittent polymerization, PA6T/66 prepolymer is synthesized by normal temperature aqueous solution polymerization, PA6T/66 resin is synthesized by high temperature and high pressure aqueous solution polymerization.The PA6T/66 resin is synthesized by solid-phase polycondensation. Select the best of raw materials, production equipment, polymerization method and separation method in the process flow. Carry out physical and heat balance to ensure the accuracy of data, select the equipment, draw the process flow chart, reactor profile and...
