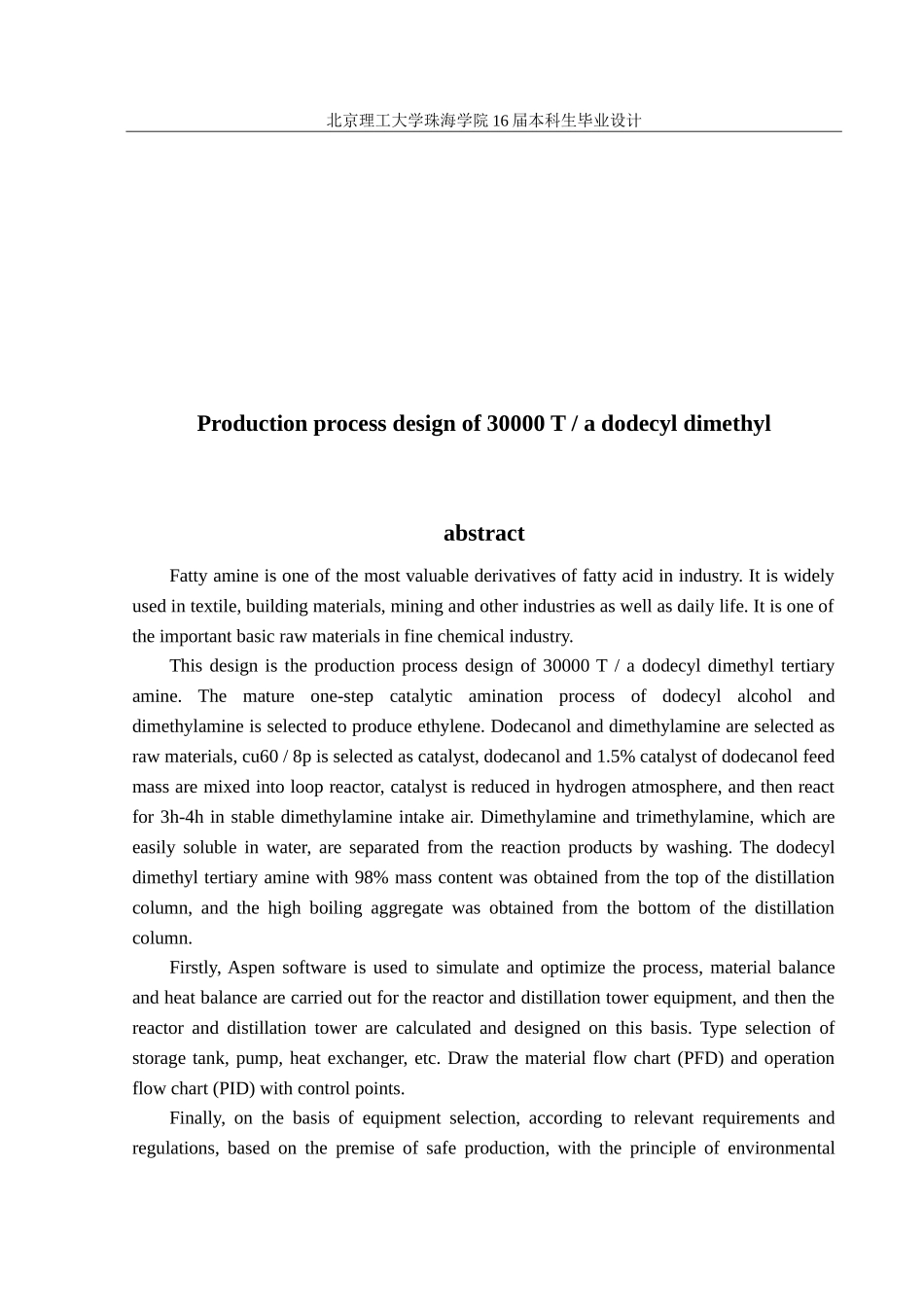

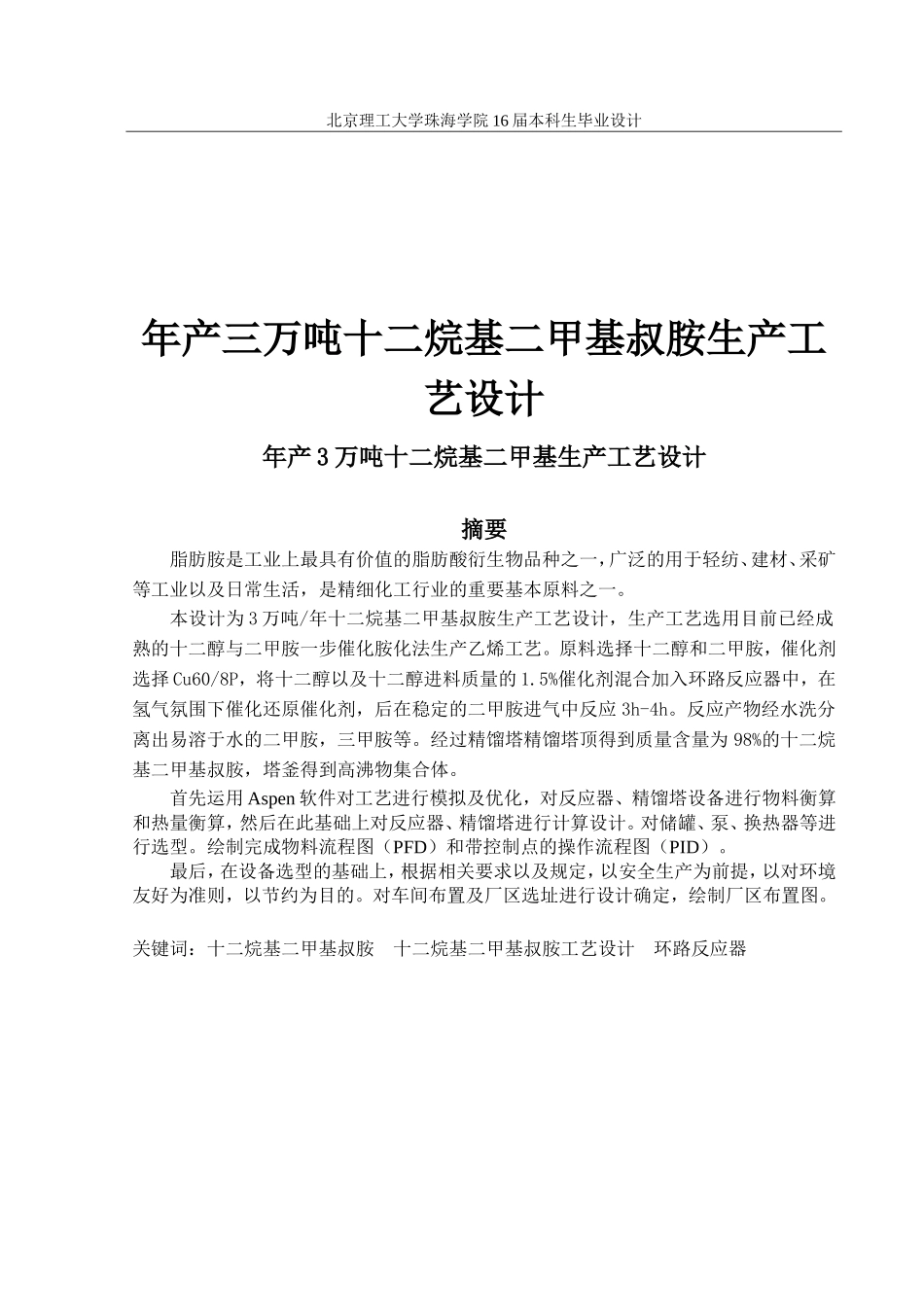

北京理工大学珠海学院 16 届本科生毕业设计年产三万吨十二烷基二甲基叔胺生产工艺设计年产 3 万吨十二烷基二甲基生产工艺设计摘要脂肪胺是工业上最具有价值的脂肪酸衍生物品种之一,广泛的用于轻纺、建材、采矿等工业以及日常生活,是精细化工行业的重要基本原料之一。本设计为 3 万吨/年十二烷基二甲基叔胺生产工艺设计,生产工艺选用目前已经成熟的十二醇与二甲胺一步催化胺化法生产乙烯工艺。原料选择十二醇和二甲胺,催化剂选择 Cu60/8P,将十二醇以及十二醇进料质量的 1.5%催化剂混合加入环路反应器中,在氢气氛围下催化还原催化剂,后在稳定的二甲胺进气中反应 3h-4h。反应产物经水洗分离出易溶于水的二甲胺,三甲胺等。经过精馏塔精馏塔顶得到质量含量为 98%的十二烷基二甲基叔胺,塔釜得到高沸物集合体。首先运用 Aspen 软件对工艺进行模拟及优化,对反应器、精馏塔设备进行物料衡算和热量衡算,然后在此基础上对反应器、精馏塔进行计算设计。对储罐、泵、换热器等进行选型。绘制完成物料流程图(PFD)和带控制点的操作流程图(PID)。最后,在设备选型的基础上,根据相关要求以及规定,以安全生产为前提,以对环境友好为准则,以节约为目的。对车间布置及厂区选址进行设计确定,绘制厂区布置图。关键词:十二烷基二甲基叔胺 十二烷基二甲基叔胺工艺设计 环路反应器北京理工大学珠海学院 16 届本科生毕业设计Production process design of 30000 T / a dodecyl dimethylabstractFatty amine is one of the most valuable derivatives of fatty acid in industry. It is widely used in textile, building materials, mining and other industries as well as daily life. It is one of the important basic raw materials in fine chemical industry.This design is the production process design of 30000 T / a dodecyl dimethyl tertiary amine. The mature one-step catalytic amination process of dodecyl alcohol and dimethylamine is selected to produce ethylene. Dodecanol and dimethylamine are selected as raw materials, cu60 / 8p is selected as catalyst, dodecanol and 1.5% catalyst of dodecanol feed mass are mixed into loop reactor, catalyst is reduced in hydrogen...
