基于单片机的多功能雾化器的设计与实现

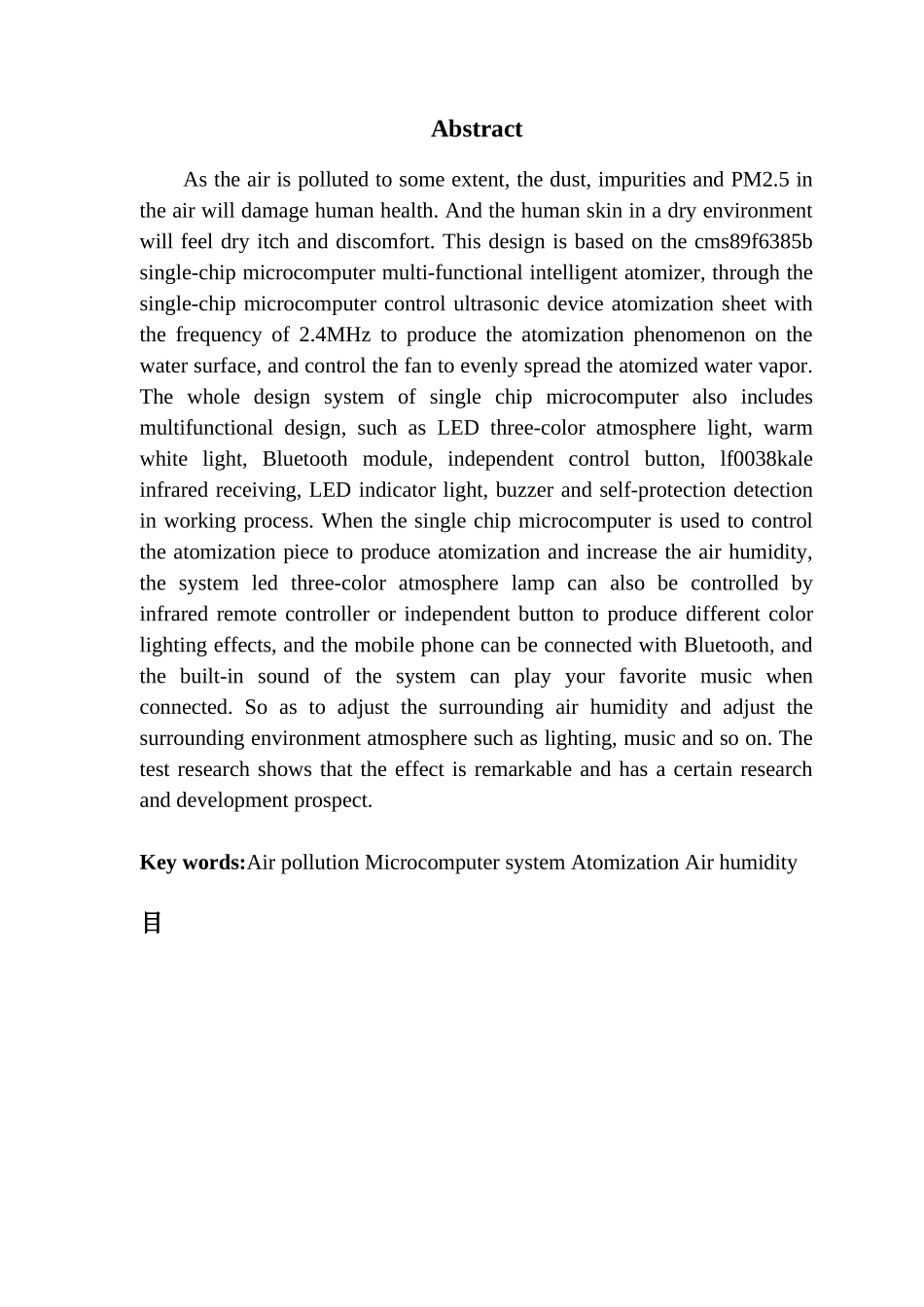

基于单片机的多功能雾化器的设计与实现Design and implementation of multifunctional atomizer based on single chip microcomputer 内容摘要随着空气受到一定污染的环境下，空气中的灰尘，杂质，PM2.5会损坏人体的健康。并且人体的皮肤在干燥的环境下会感到干痒和不适。本设计是基于 CMS89F6385B 单片机的多功能智能雾化器，通过单片机控制超声波装置雾化片以 2.4MHZ 的频率使水面产生雾化现象，并控制风扇将雾化的水汽均匀的扩散开来。单片机整体设计系统还包涵LED 三色氛围灯，暖白灯，蓝牙模块，独立控制按键，LF0038KALE红外接收，LED 指示灯，蜂鸣器和工作过程中自我安全保护检测等多功能设计。在使用单片机控制雾化片产生雾化增加空气湿度的同时，还可以通过红外遥控器或独立按键来操控系统 LED 三色氛围灯，使其发出不同颜色的灯光效果，还可以手机连接蓝牙，连接上后系统内置音响可以播放自己喜欢的音乐。从而达到在调节周围空气湿度的同时，还可以多功能选择的调节灯光，音乐等周边环境氛围。测试研究表明效果显著，具有一定的研发前景。关键词：空气污染 单片机系统 雾化现象 空气湿度 多功能设计AbstractAs the air is polluted to some extent, the dust, impurities and PM2.5 in the air will damage human health. And the human skin in a dry environment will feel dry itch and discomfort. This design is based on the cms89f6385b single-chip microcomputer multi-functional intelligent atomizer, through the single-chip microcomputer control ultrasonic device atomization sheet with the frequency of 2.4MHz to produce the atomization phenomenon on the water surface, and control the fan to evenly spread the atomized water vapor. The whole design system of single chip microcomputer also includes multifunctional design, such as LED three-color atmosphere light, warm white light, Bluetooth module, independent control button, lf0038kale infrared receiving, LED indicator light, buzzer and self-protection detection in working process. When the single chip microcomputer is used to control the atomization p...
