毕业设计—并联型有源电力滤波器的设计说明

毕业设计—并联型有源电力滤波器的设计说明_第1页
1/62
毕业设计—并联型有源电力滤波器的设计说明_第2页
2/62
毕业设计—并联型有源电力滤波器的设计说明_第3页
3/62

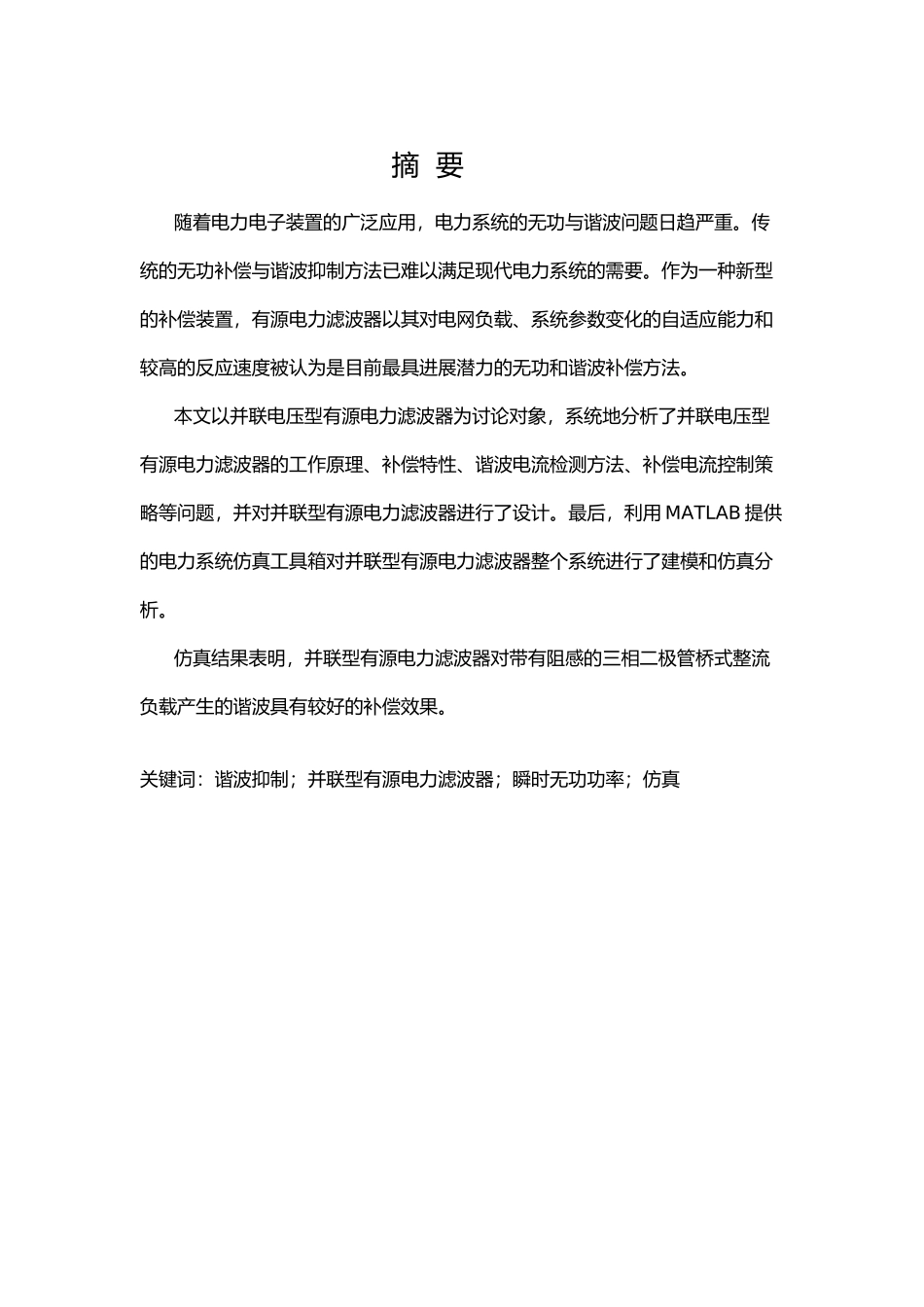

(二 ○○ 七 年 六 月 本科毕业设计说明书题 目 : 并 联 型 有 源 电 力 滤 波 器 的 设 计学 生 X X : xx学 院 : 信 息 工 程 学 院系 别 : 自 动 化 系专 业 : 自 动 化班 级 : 自 动 化 0 3 - 3指 导 老 师 : xx摘 要随着电力电子装置的广泛应用,电力系统的无功与谐波问题日趋严重。传统的无功补偿与谐波抑制方法已难以满足现代电力系统的需要。作为一种新型的补偿装置,有源电力滤波器以其对电网负载、系统参数变化的自适应能力和较高的反应速度被认为是目前最具进展潜力的无功和谐波补偿方法。本文以并联电压型有源电力滤波器为讨论对象,系统地分析了并联电压型有源电力滤波器的工作原理、补偿特性、谐波电流检测方法、补偿电流控制策略等问题,并对并联型有源电力滤波器进行了设计。最后,利用 MATLAB 提供的电力系统仿真工具箱对并联型有源电力滤波器整个系统进行了建模和仿真分析。仿真结果表明,并联型有源电力滤波器对带有阻感的三相二极管桥式整流负载产生的谐波具有较好的补偿效果。关键词:谐波抑制;并联型有源电力滤波器;瞬时无功功率;仿真AbstractThe substantial increase in the use of power electronic equipment results in harmonic pollution and reactive burden above the tolerable limits. Many conventional solutions to the power quality issues can’t meet the conditions of modern power system. Active power filters are known as a dynamic,adjustable and potential solution to the power quality problems.The shunt voltage-type APF has been analyzed in this paper, in terms of the working principle, the compensation characteristics, the harmonic current detection approaches and the current compensation strategies , the shunt active power filter are designed.At last,the simulation models are built up by the Simpowersystems toolbox of Matlab.The results show that the designed shunt APF can well suppress the harmonic distortion generated by a three-phase diode rectifier.Key Words : Harmonic elimination; Shunt active power filter; Instant...
