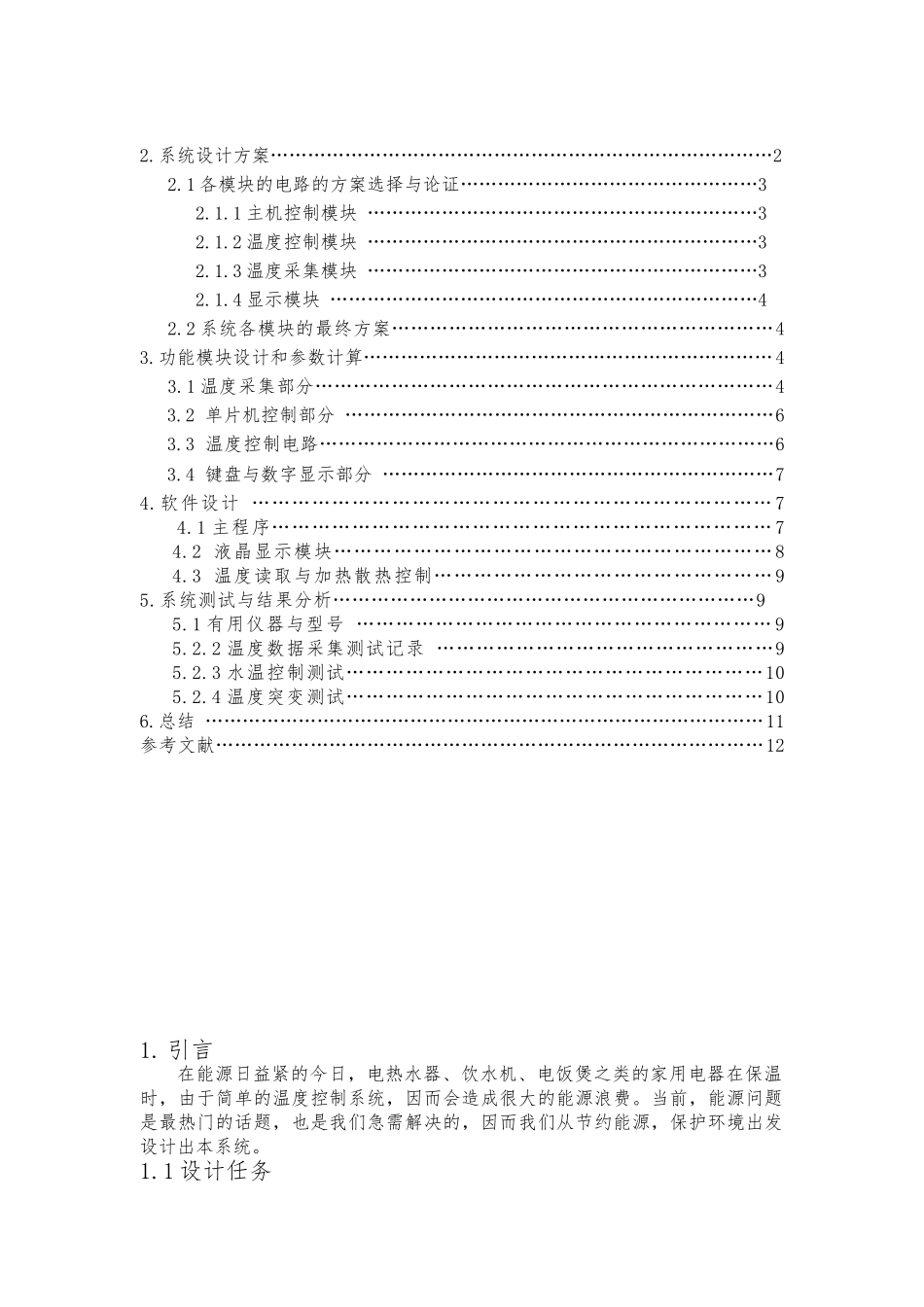

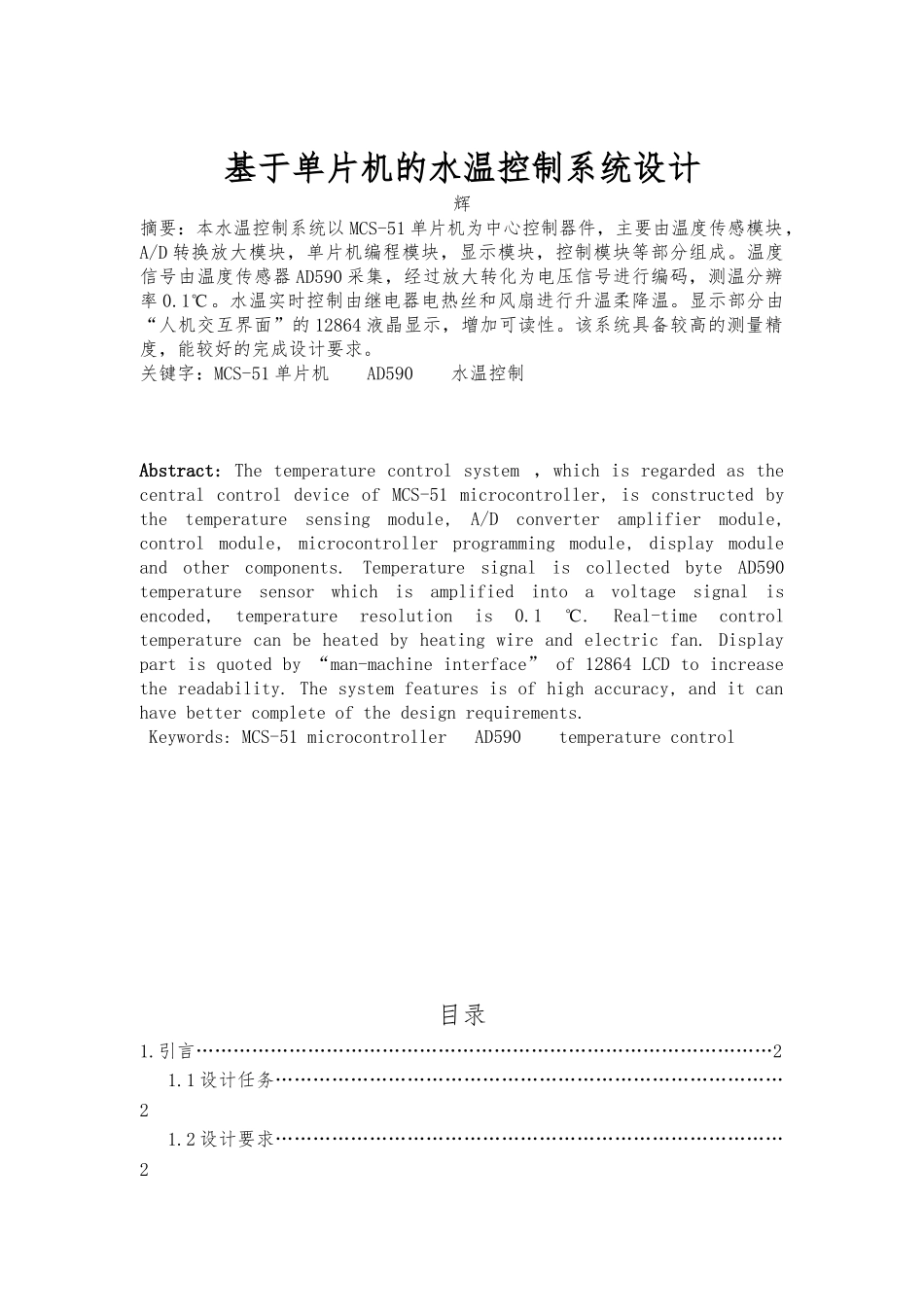

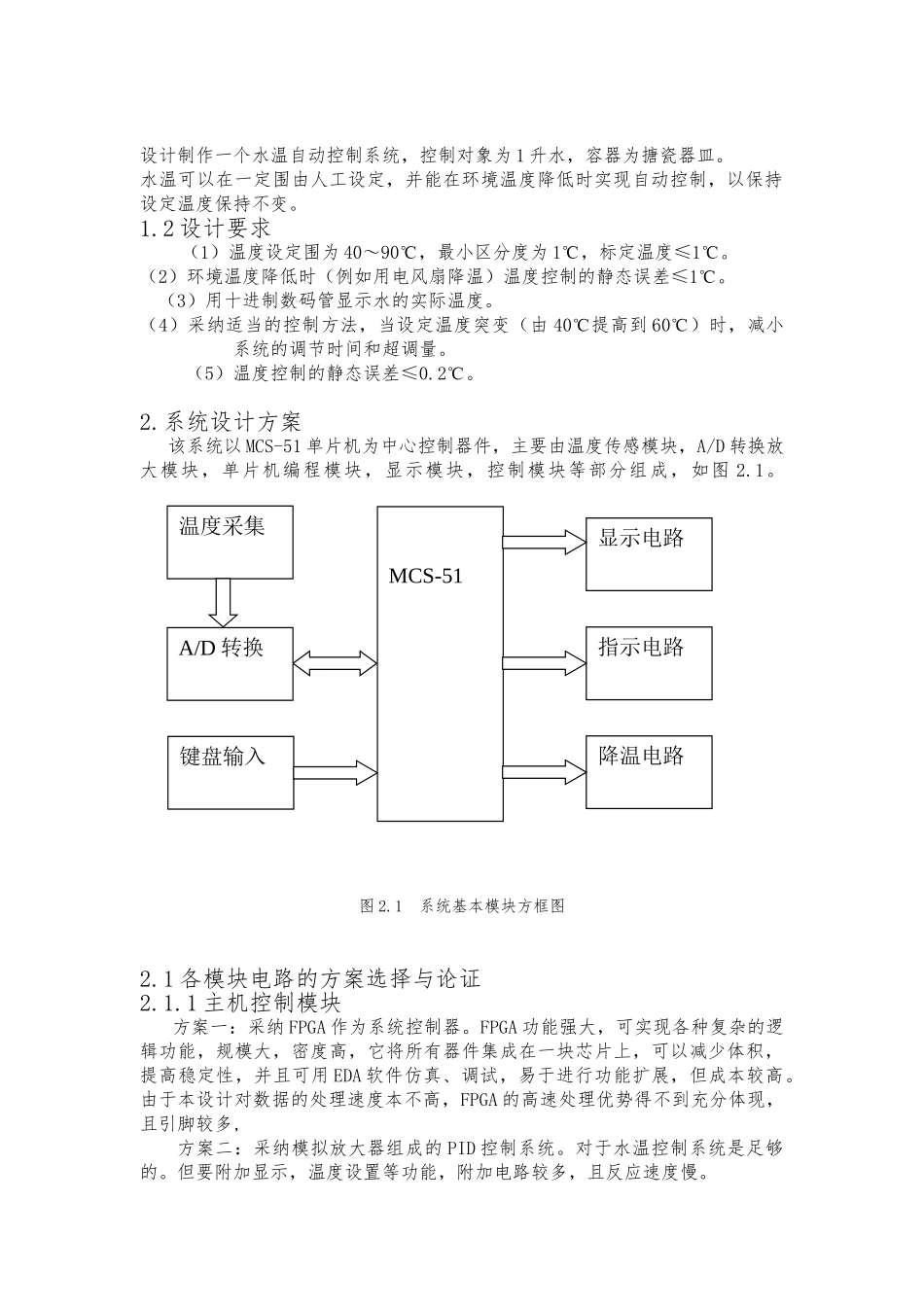

基于单片机的水温控制系统设计辉摘要:本水温控制系统以 MCS-51 单片机为中心控制器件,主要由温度传感模块,A/D 转换放大模块,单片机编程模块,显示模块,控制模块等部分组成。温度信号由温度传感器 AD590 采集,经过放大转化为电压信号进行编码,测温分辨率 0.1℃。水温实时控制由继电器电热丝和风扇进行升温柔降温。显示部分由“人机交互界面”的 12864 液晶显示,增加可读性。该系统具备较高的测量精度,能较好的完成设计要求。关键字:MCS-51 单片机 AD590 水温控制Abstract: The temperature control system ,which is regarded as the central control device of MCS-51 microcontroller, is constructed by the temperature sensing module, A/D converter amplifier module, control module, microcontroller programming module, display module and other components. Temperature signal is collected byte AD590 temperature sensor which is amplified into a voltage signal is encoded, temperature resolution is 0.1 ℃. Real-time control temperature can be heated by heating wire and electric fan. Display part is quoted by “man-machine interface” of 12864 LCD to increase the readability. The system features is of high accuracy, and it can have better complete of the design requirements. Keywords: MCS-51 microcontroller AD590 temperature control目录1.引言…………………………………………………………………………………21.1 设计任务………………………………………………………………………21.2 设计要求………………………………………………………………………22.系统设计方案………………………………………………………………………22.1 各模块的电路的方案选择与论证…………………………………………32.1.1 主机控制模块 ………………………………………………………32.1.2 温度控制模块 ………………………………………………………32.1.3 温度采集模块 ………………………………………………………32.1.4 显示模块 ……………………………………………………………42.2 系统各模块的最终方案……………………………………………………43.功能...
