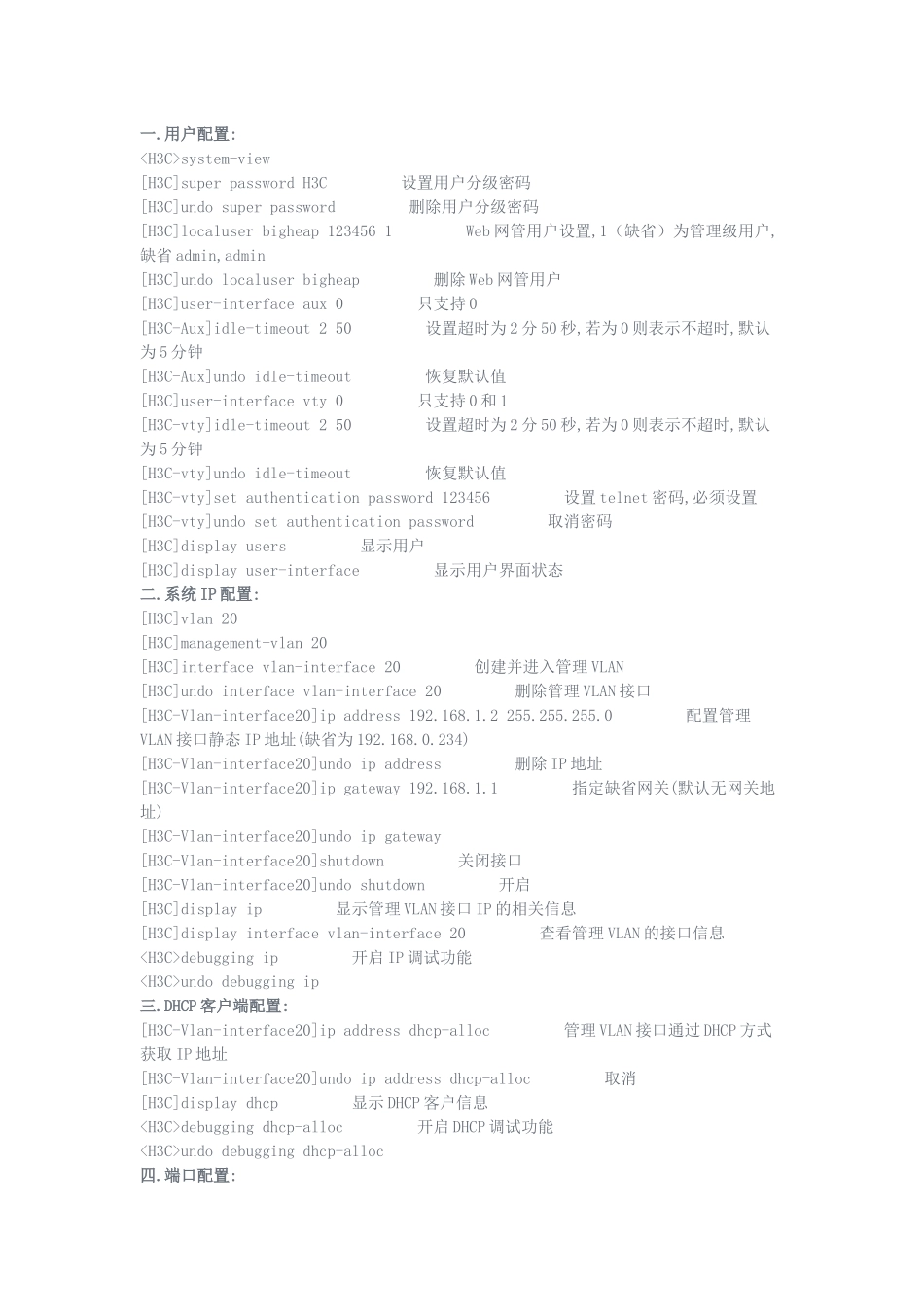

一.用户配置:system-view[H3C]superpasswordH3C设置用户分级密码[H3C]undosuperpassword删除用户分级密码[H3C]localuserbigheap1234561Web网管用户设置,1（缺省）为管理级用户,缺省admin,admin[H3C]undolocaluserbigheap删除Web网管用户[H3C]user-interfaceaux0只支持0[H3C-Aux]idle-timeout250设置超时为2分50秒,若为0则表示不超时,默认为5分钟[H3C-Aux]undoidle-timeout恢复默认值[H3C]user-interfacevty0只支持0和1[H3C-vty]idle-timeout250设置超时为2分50秒,若为0则表示不超时,默认为5分钟[H3C-vty]undoidle-timeout恢复默认值[H3C-vty]setauthenticationpassword123456设置telnet密码,必须设置[H3C-vty]undosetauthenticationpassword取消密码[H3C]displayusers显示用户[H3C]displayuser-interface显示用户界面状态二.系统IP配置:[H3C]vlan20[H3C]management-vlan20[H3C]interfacevlan-interface20创建并进入管理VLAN[H3C]undointerfacevlan-interface20删除管理VLAN接口[H3C-Vlan-interface20]ipaddress192.168.1.2255.255.255.0配置管理VLAN接口静态IP地址(缺省为192.168.0.234)[H3C-Vlan-interface20]undoipaddress删除IP地址[H3C-Vlan-interface20]ipgateway192.168.1.1指定缺省网关(默认无网关地址)[H3C-Vlan-interface20]undoipgateway[H3C-Vlan-interface20]shutdown关闭接口[H3C-Vlan-interface20]undoshutdown开启[H3C]displayip显示管理VLAN接口IP的相关信息[H3C]displayinterfacevlan-interface20查看管理VLAN的接口信息debuggingip开启IP调试功能undodebuggingip三.DHCP客户端配置:[H3C-Vlan-interface20]ipaddressdhcp-alloc管理VLAN接口通过DHCP方式获取IP地址[H3C-Vlan-interface20]undoipaddressdhcp-alloc取消[H3C]displaydhcp显示DHCP客户信息debuggingdhcp-alloc开启DHCP调试功能undodebuggingdhcp-alloc四.端口配置:[H3C]interfaceEthernet0/3[H3C-Ethernet0/3]shutdown[H3C-Ethernet0/3]speed100速率,可为10,100,1000和auto(缺省)[H3C-Ethernet0/3]duplexfull双工,可为half,full和auto(缺省)光口和汇聚后不能配置[H3C-Ethernet0/3]flow-control开启流控,默认为关闭[H3C-Ethernet0/3]broadcast-suppression20设置抑制广播百分比为20%,可取5,10,20,100,缺省为100,同时组播和未知单播也受此影响[H3C-Ethernet0/3]loopbackinternal内环测试[H3C-Ethernet0/3]loopbackexternal外环测试,需插接自环头,必须为全双工或者自协商模式[H3C-Ethernet0/3]portlink-typetrunk设置链路的类型为trunk,可为access(缺省),trunk[H3C-Ethernet0/3]porttrunkpvidvlan20设置20为该trunk的缺省VLAN,默认为1(trunk线路两端的PVID必须一致)[H3C-Ethernet0/3]portaccessvlan20将当前access端口加入指定的VLAN[H3C-Ethernet0/3]porttrunkpermitvlanall允许所有的VLAN通过当前的trunk端口,可多次使用该命令[H3C-Ethernet0/3]mdiauto设置以太端口为自动监测,normal(缺省)为直通线,across为交叉线[H3C]link-aggregationEthernet0/1toEthernet0/4将1-4口加入汇聚组,1为主端口,两端需要同时配置,设置了端口镜像以及端口隔离的端口无法汇聚[H3C]undolink-aggregationEthernet0/1删除该汇聚组[H3C]link-aggregationmodeegress配置端口汇聚模式为根据目的MAC地址进行负荷分担,可选为ingress,egress和both,缺省为both[H3C]monitor-portEthernet0/2将该端口设置为镜像端口,必须先设置镜像端口,删除时必须先删除被镜像端口,而且它们不能同在一个端口,该端口不能在汇聚组中,设置新镜像端口时,新取代旧,被镜像不变[H3C]mirroring-portEthernet0/3toEthernet0/4both将端口3和4设置为被镜像端口,both为同时监控接收和发送的报文,inbound表示仅监控接收的报文,outbound表示仅监控发送的报文[H3C]displaymirror[H3C]displayinterfaceEthernet0/3resetcounters清除所有端口的统计信息[H3C]displaylink-aggregationEthernet0/3显示端口汇聚信息[H3C-Ethernet0/3]virtual-cable-test诊断该端口的电路状况五.VLAN配置:[H3C]vlan2[H3C]undovlanall删除除缺省VLAN外的所有VL...
