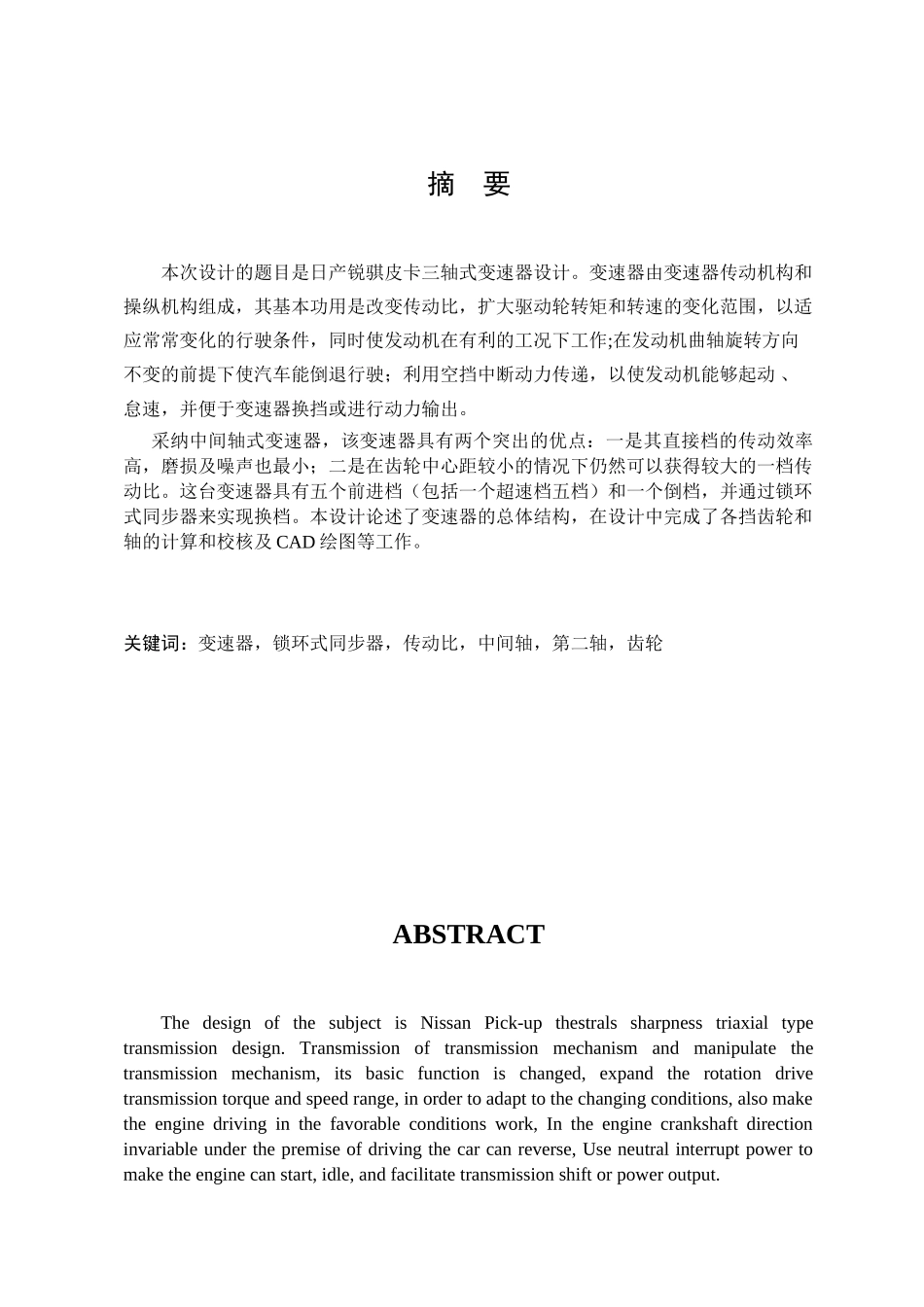

摘 要本次设计的题目是日产锐骐皮卡三轴式变速器设计。变速器由变速器传动机构和操纵机构组成，其基本功用是改变传动比，扩大驱动轮转矩和转速的变化范围，以适应常常变化的行驶条件，同时使发动机在有利的工况下工作;在发动机曲轴旋转方向不变的前提下使汽车能倒退行驶；利用空挡中断动力传递，以使发动机能够起动 、怠速，并便于变速器换挡或进行动力输出。采纳中间轴式变速器，该变速器具有两个突出的优点：一是其直接档的传动效率高，磨损及噪声也最小；二是在齿轮中心距较小的情况下仍然可以获得较大的一档传动比。这台变速器具有五个前进档（包括一个超速档五档）和一个倒档，并通过锁环式同步器来实现换档。本设计论述了变速器的总体结构，在设计中完成了各挡齿轮和轴的计算和校核及 CAD 绘图等工作。关键词：变速器，锁环式同步器，传动比，中间轴，第二轴，齿轮 ABSTRACTThe design of the subject is Nissan Pick-up thestrals sharpness triaxial type transmission design. Transmission of transmission mechanism and manipulate the transmission mechanism, its basic function is changed, expand the rotation drive transmission torque and speed range, in order to adapt to the changing conditions, also make the engine driving in the favorable conditions work, In the engine crankshaft direction invariable under the premise of driving the car can reverse, Use neutral interrupt power to make the engine can start, idle, and facilitate transmission shift or power output.Using the transmission of transmission oart has two outstanding advantages: one is the direct transmission efficiency, the wear and tear of noise and minimum, The center distance of small gear cases can still get larger gear transmission. The transmission has five forward (including a overdrive five files) and one reverse, and through the lock ring type synchronizer to realize the shift. This design is discussed in the overall structure, design of the gear and finish the checking and calculating and a...
