比亚迪f3r手动变速器设计本科学位论文VIP专享

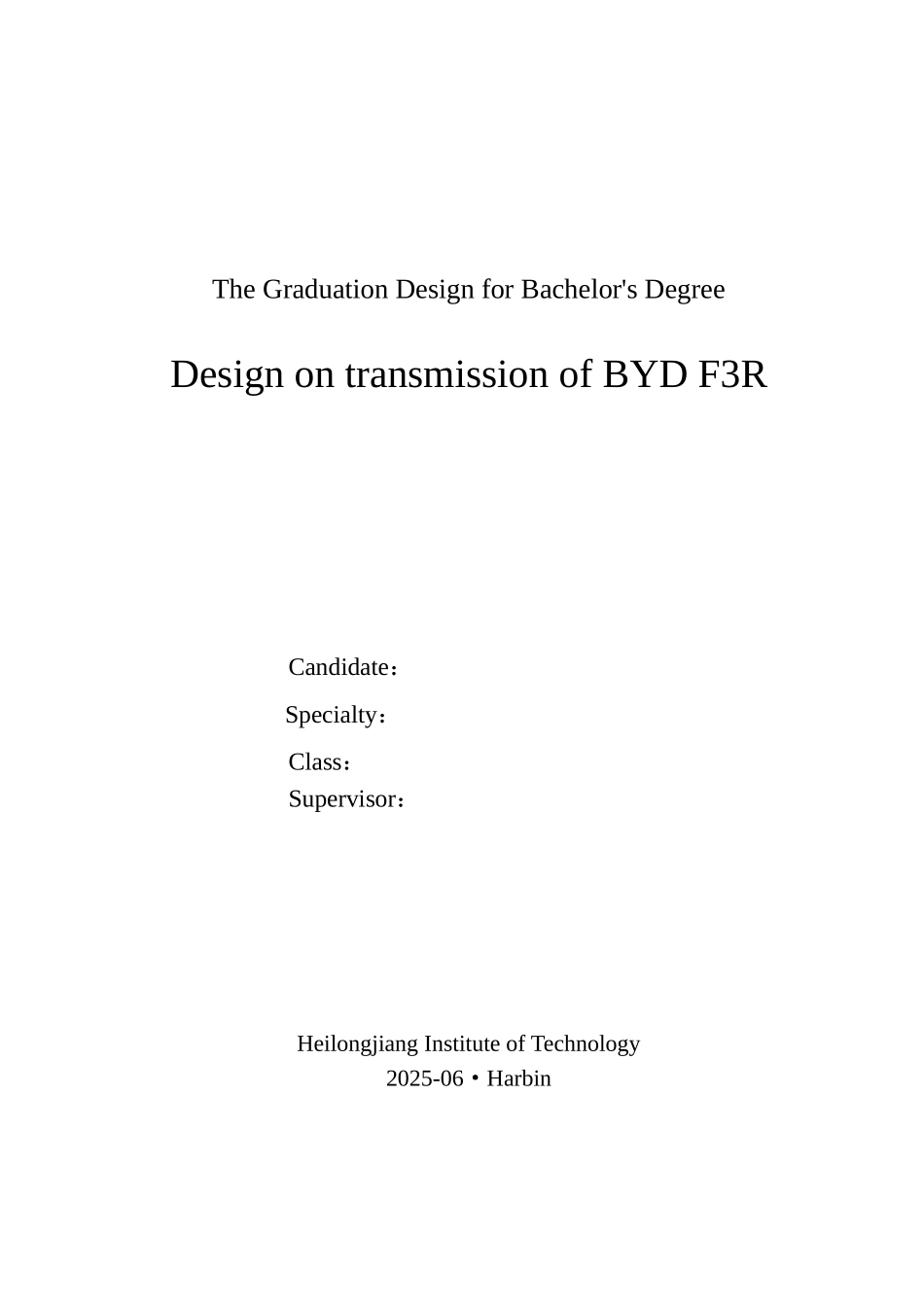

本科学生毕业设计比亚迪 F3R 车型变速器设计 系部名称： 汽车工程系 专业班级： 学生姓名： 指导老师： 职 称： 黑 龙 江 工 程 学 院二○一一年六月The Graduation Design for Bachelor's DegreeDesign on transmission of BYD F3R Candidate： Specialty： Class： Supervisor： Heilongjiang Institute of Technology2025-06·Harbin摘 要本文设计讨论了三轴式五挡手动变速器。首先，对于变速器的工作原理做了阐述从传动机构到倒档布置方案都一一做了详细的说明，完成了换挡机构形式和轴承的选择等，特别值得一提的是在倒档的选择和布置上。因为变速箱在低档工作时作用有较大的力，所以一般变速箱的低档都布置靠近轴的后支承处。紧接着对变速器的各挡齿轮和轴做了详细的设计计算，包括了档数、传动比、中心距以及各档齿轮的齿数，并且进行了强度校核，紧接着对一些标准件进行了选型，其中包括同步器、操纵机构、固定件以及密封件等等。最后进行的是齿轮、轴以及轴承的校核，其中齿轮校核包括弯曲强度和接触应力轴校核包括强度和刚度的计算，轴承校核的则是其寿命计算，并讲述了变速器中各部件材料的选择。关键字：变速器；设计；齿轮；轴；校核ABSTRACTThis design of a three-axis five-speed manual transmission. First, the working principle of transmission are described in detail, from the transmission to reverse layout programs are all doing a detailed description, complete the form and bearing of shift the choice of institutions and so on, is particularly worth mentioning is the reverse of the on the selection and arrangement. Because the role of transmission in low-grade work, a greater force, it is generally low-grade gearbox are arranged near the support at the rear axle. Then each block of the transmission gears and shafts made a detailed design calculations, including the gears, transmission ratio, center distance and the number of teeth of the gear profile and strength check carried out, followed by a number of standard parts were selected type, including synchronization, control...
