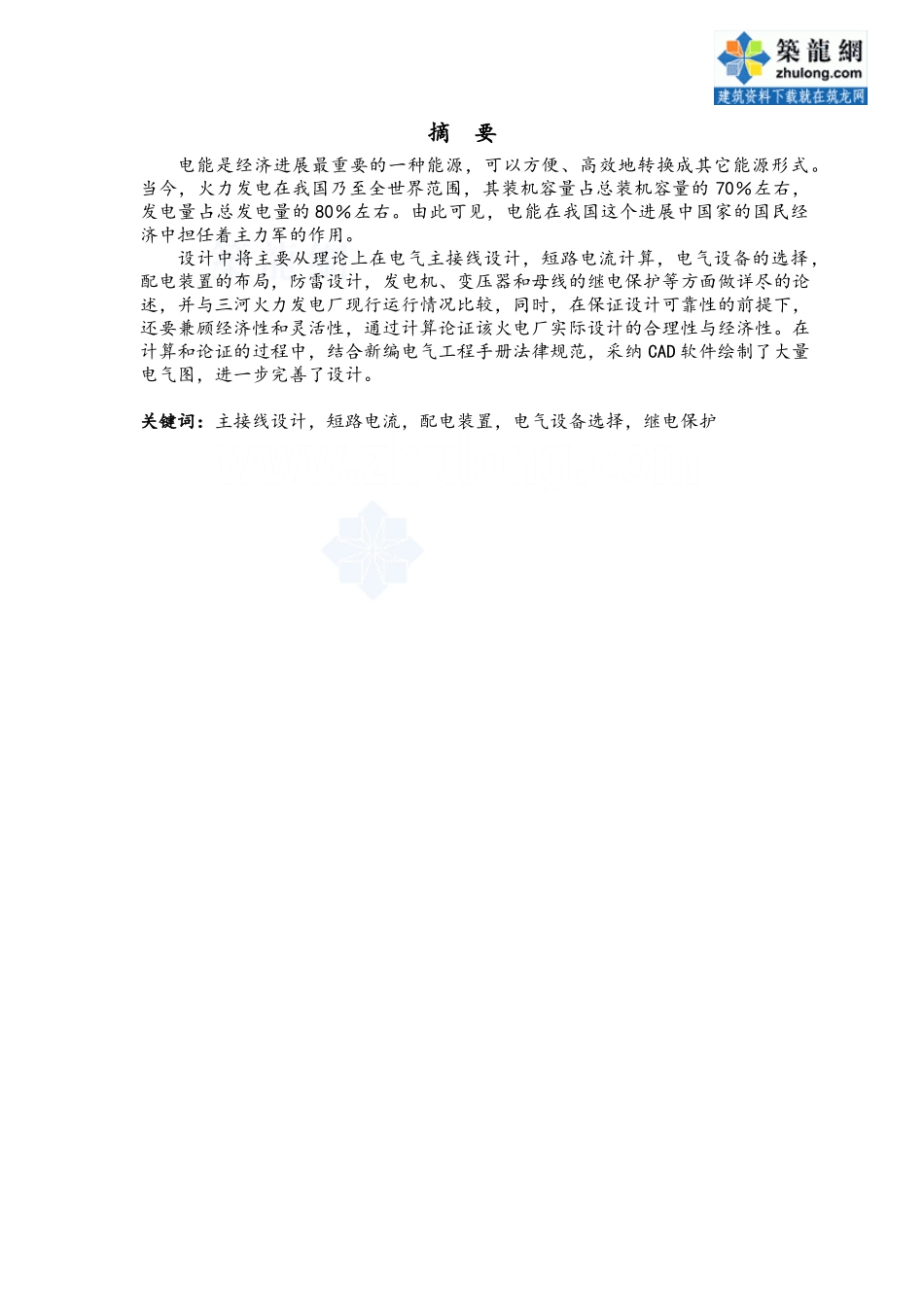

摘 要电能是经济进展最重要的一种能源，可以方便、高效地转换成其它能源形式。当今，火力发电在我国乃至全世界范围，其装机容量占总装机容量的 70％左右，发电量占总发电量的 80％左右。由此可见，电能在我国这个进展中国家的国民经济中担任着主力军的作用。设计中将主要从理论上在电气主接线设计，短路电流计算，电气设备的选择，配电装置的布局，防雷设计，发电机、变压器和母线的继电保护等方面做详尽的论述，并与三河火力发电厂现行运行情况比较，同时，在保证设计可靠性的前提下，还要兼顾经济性和灵活性，通过计算论证该火电厂实际设计的合理性与经济性。在计算和论证的过程中，结合新编电气工程手册法律规范，采纳 CAD 软件绘制了大量电气图，进一步完善了设计。关键词：主接线设计，短路电流，配电装置，电气设备选择，继电保护AbstractElectricity is the most important energy of economic development which can be conveniently and efficiently converted into other forms of energy. Today,not only in China but also in the world ,the thermoelectricity capacity accounts to about 70% and the power about 80%.So, electricity plays an important role in our country which is a developing country.In this design, I will mainly discuss main electric connection design, short circuit account, electric equipment choice, electric equipment layout, lightning strike defending design, electrical machine, transformer and generatrix protective relaying detailedly in theory and paring with the power plant of San he, while ensuring the reliability of the design, under the premise we should also take into account economic and flexibility demonstrated by calculating the effective thermal power plant design and reasonable economy.During my counting and demonstrating,in order to consummate my design, I will protract a great lot of electric engineering-pictures by Auto-CAD following the new criterion of electric engineering-enchiridion.Keywords ： main electric connection design ,short...
