5层招待所结构设计计算书VIP专享

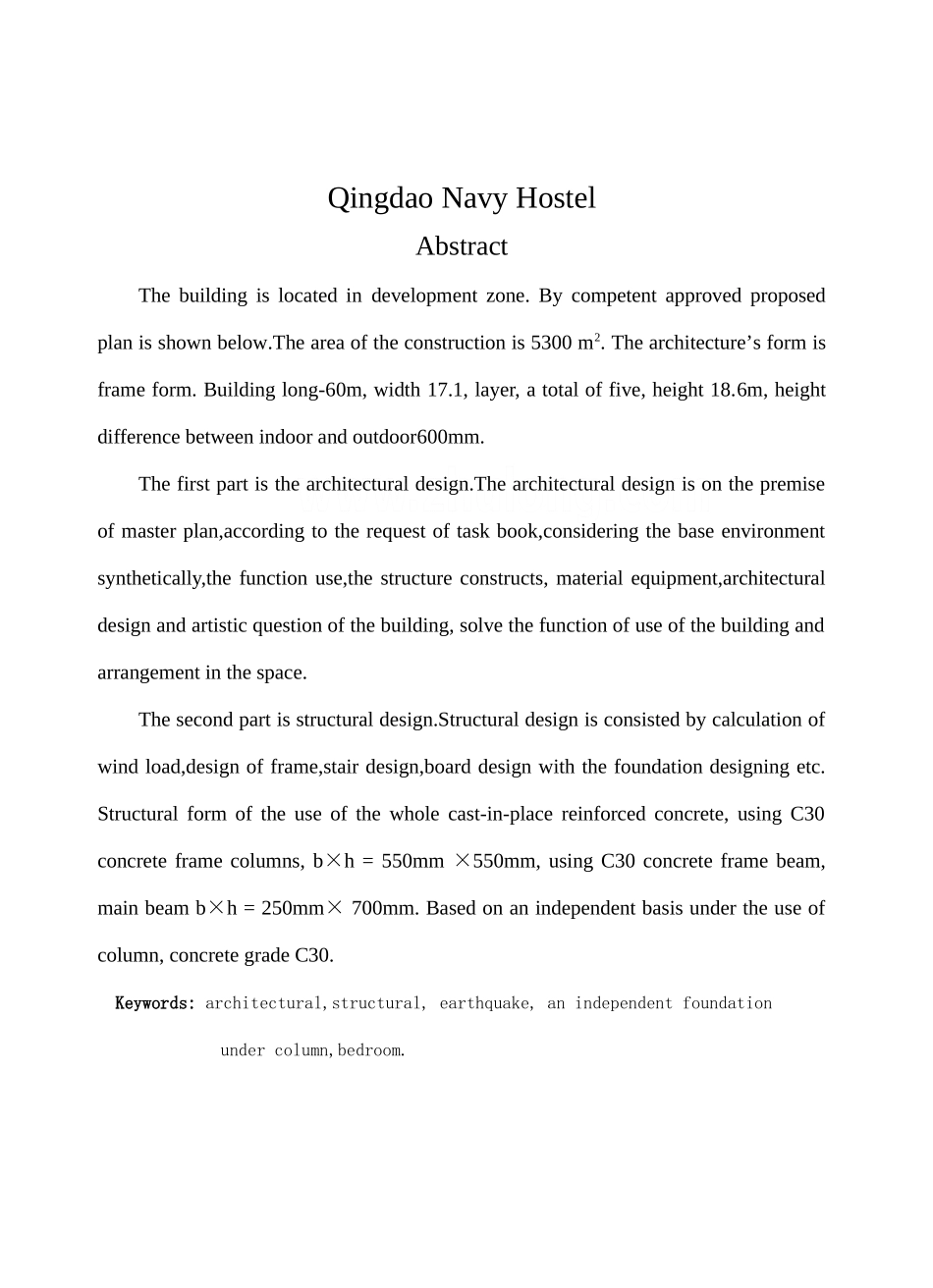

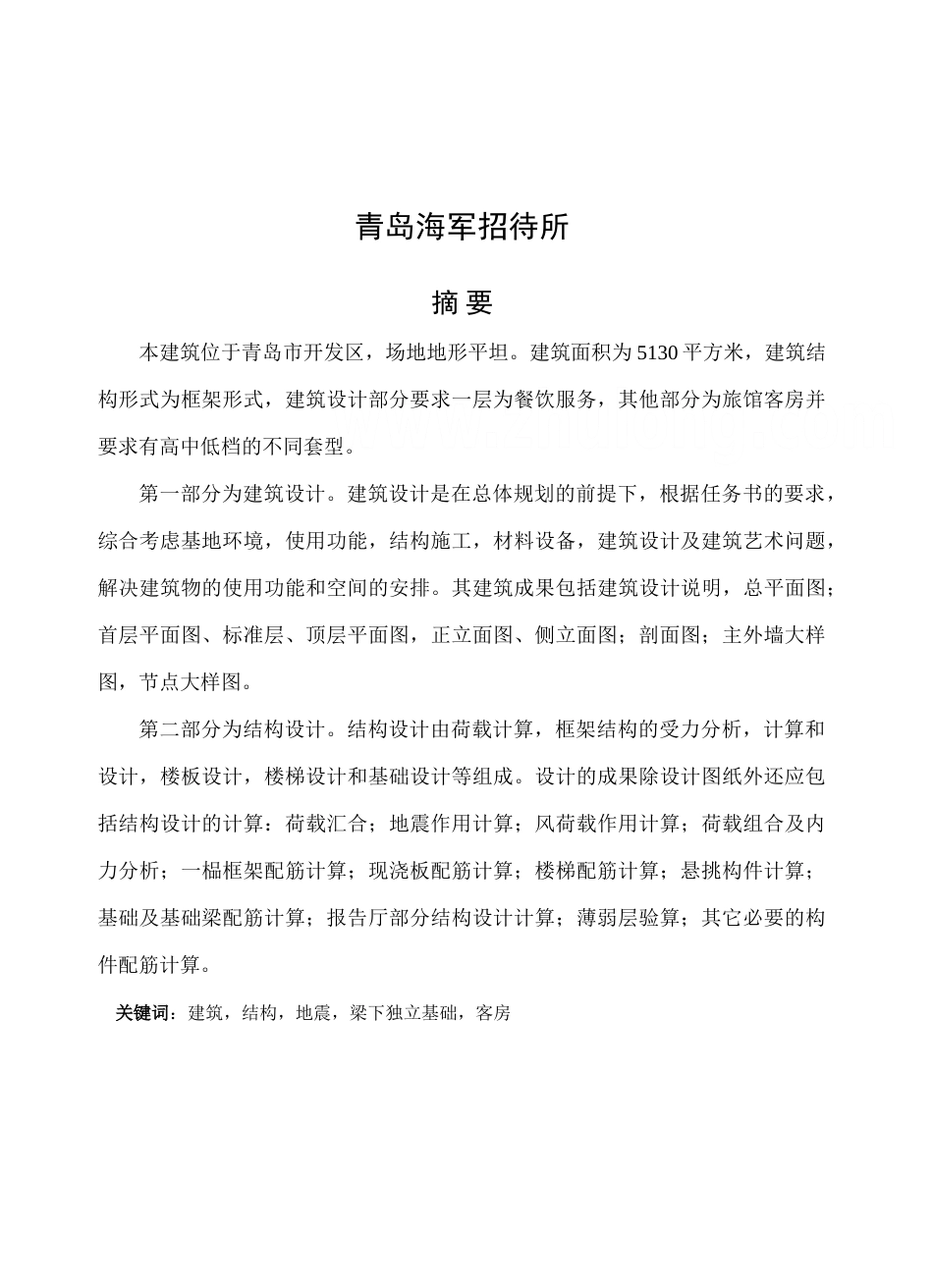

青岛海军招待所摘 要本建筑位于青岛市开发区，场地地形平坦。建筑面积为 5130 平方米，建筑结构形式为框架形式，建筑设计部分要求一层为餐饮服务，其他部分为旅馆客房并要求有高中低档的不同套型。第一部分为建筑设计。建筑设计是在总体规划的前提下，根据任务书的要求，综合考虑基地环境，使用功能，结构施工，材料设备，建筑设计及建筑艺术问题，解决建筑物的使用功能和空间的安排。其建筑成果包括建筑设计说明，总平面图；首层平面图、标准层、顶层平面图，正立面图、侧立面图；剖面图；主外墙大样图，节点大样图。第二部分为结构设计。结构设计由荷载计算，框架结构的受力分析，计算和设计，楼板设计，楼梯设计和基础设计等组成。设计的成果除设计图纸外还应包括结构设计的计算：荷载汇合；地震作用计算；风荷载作用计算；荷载组合及内力分析；一榀框架配筋计算；现浇板配筋计算；楼梯配筋计算；悬挑构件计算；基础及基础梁配筋计算；报告厅部分结构设计计算；薄弱层验算；其它必要的构件配筋计算。关键词：建筑，结构，地震，梁下独立基础，客房Qingdao Navy HostelAbstractThe building is located in development zone. By competent approved proposed plan is shown below.The area of the construction is 5300 m2. The architecture’s form is frame form. Building long-60m, width 17.1, layer, a total of five, height 18.6m, height difference between indoor and outdoor600mm.The first part is the architectural design.The architectural design is on the premise of master plan,according to the request of task book,considering the base environment synthetically,the function use,the structure constructs, material equipment,architectural design and artistic question of the building, solve the function of use of the building and arrangement in the space.The second part is structural design.Structural design is consisted by calculation of wind load,design of frame,stair design,board design with the foundation designing etc. Structural form of the use of the whole cast-in-place reinforced concrete, using C30 concrete frame c...
