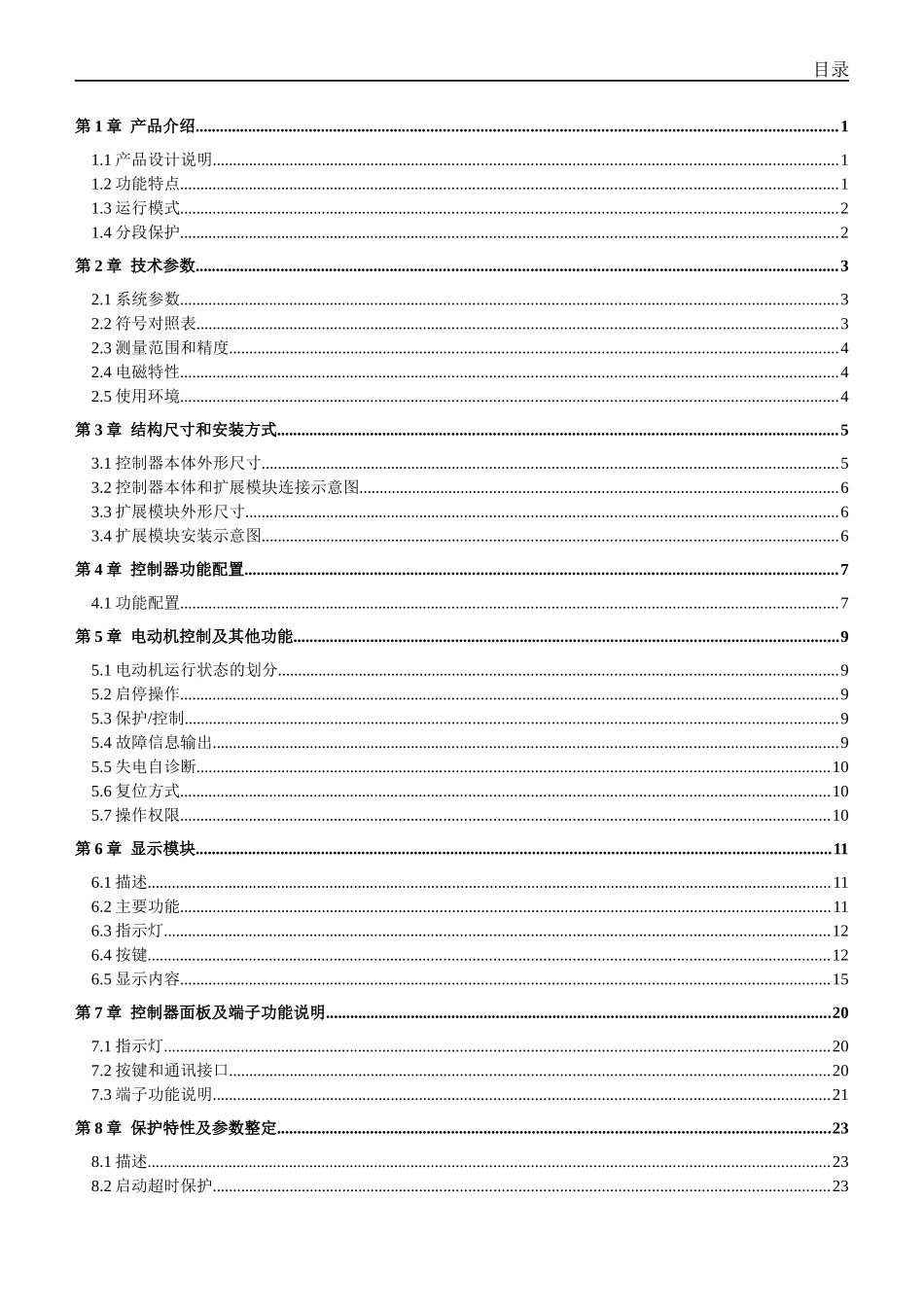

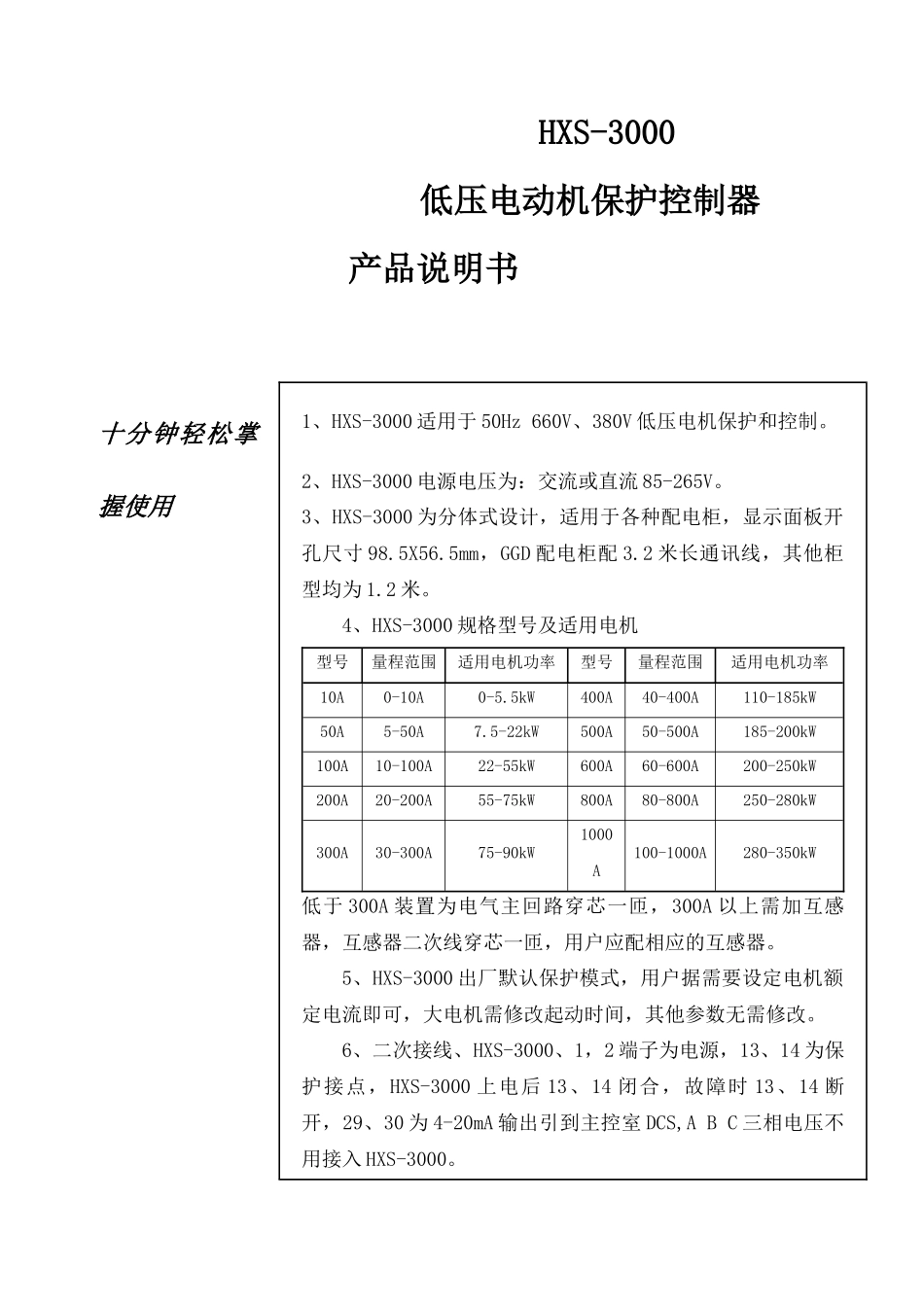

HXS-3000低压电动机保护控制器产品说明书十分钟轻松掌握使用1、HXS-3000适用于50Hz660V、380V低压电机保护和控制。2、HXS-3000电源电压为：交流或直流85-265V。3、HXS-3000为分体式设计，适用于各种配电柜，显示面板开孔尺寸98.5X56.5mm，GGD配电柜配3.2米长通讯线，其他柜型均为1.2米。4、HXS-3000规格型号及适用电机型号量程范围适用电机功率型号量程范围适用电机功率10A0-10A0-5.5kW400A40-400A110-185kW50A5-50A7.5-22kW500A50-500A185-200kW100A10-100A22-55kW600A60-600A200-250kW200A20-200A55-75kW800A80-800A250-280kW300A30-300A75-90kW1000A100-1000A280-350kW低于300A装置为电气主回路穿芯一匝，300A以上需加互感器，互感器二次线穿芯一匝，用户应配相应的互感器。5、HXS-3000出厂默认保护模式，用户据需要设定电机额定电流即可，大电机需修改起动时间，其他参数无需修改。6、二次接线、HXS-3000、1，2端子为电源，13、14为保护接点，HXS-3000上电后13、14闭合，故障时13、14断开，29、30为4-20mA输出引到主控室DCS,ABC三相电压不用接入HXS-3000。电动机控制器产品说明书简介1目录第1章产品介绍............................................................................................................................................................11.1产品设计说明........................................................................................................................................................11.2功能特点................................................................................................................................................................11.3运行模式................................................................................................................................................................21.4分段保护................................................................................................................................................................2第2章技术参数............................................................................................................................................................32.1系统参数................................................................................................................................................................32.2符号对照表............................................................................................................................................................32.3测量范围和精度....................................................................................................................................................42.4电磁特性................................................................................................................................................................42.5使用环境................................................................................................................................................................4第3章结构尺寸和安装方式........................................................................................................................................53.1控制器本体外形尺寸............................................................................................................................................53.2控制器本体和扩展模块连接示意图....................................................................................................................63.3扩展模块外形尺寸...........................................
