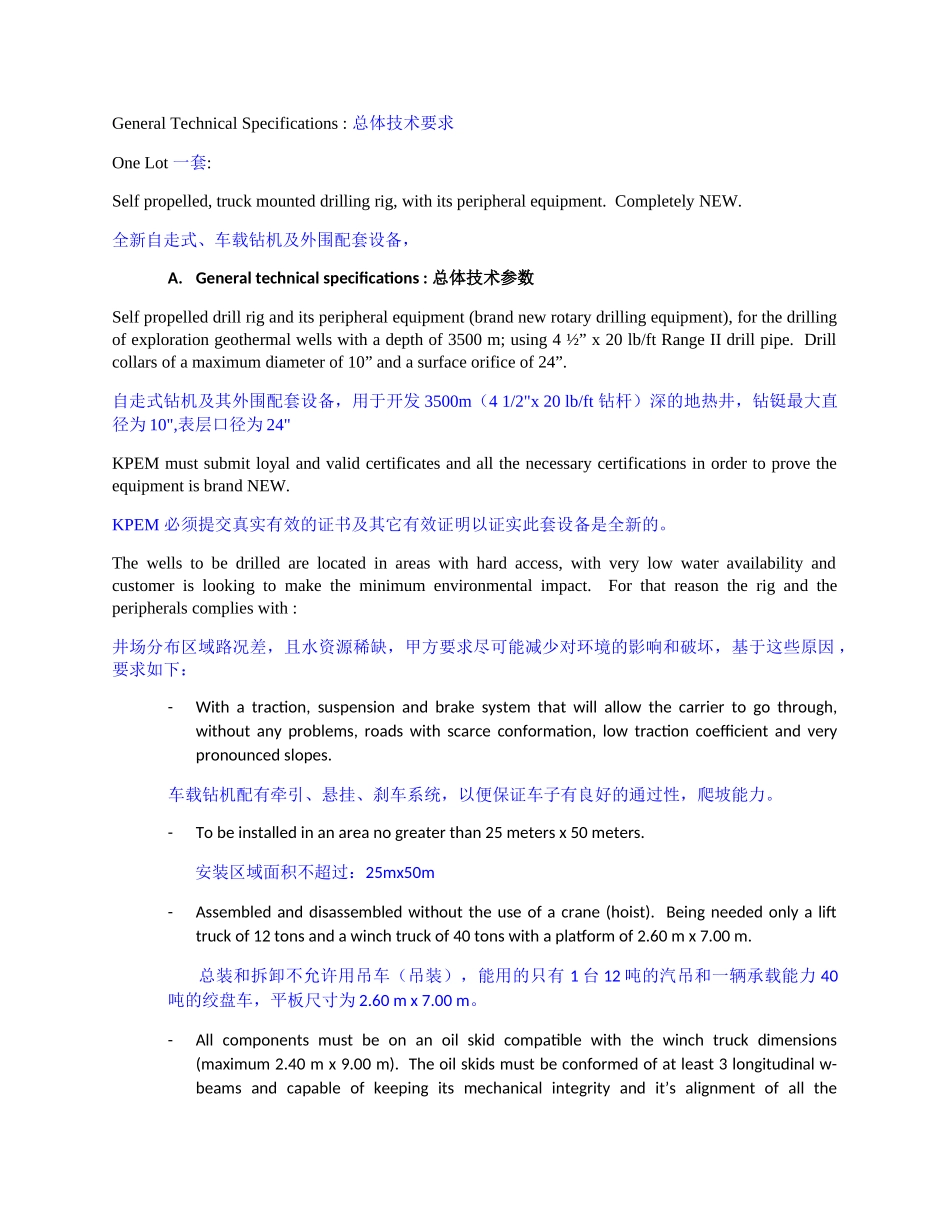

GeneralTechnicalSpecifications:总体技术要求OneLot一套:Selfpropelled,truckmounteddrillingrig,withitsperipheralequipment.CompletelyNEW.全新自走式、车载钻机及外围配套设备,A.Generaltechnicalspecifications:总体技术参数Selfpropelleddrillriganditsperipheralequipment(brandnewrotarydrillingequipment),forthedrillingofexplorationgeothermalwellswithadepthof3500m;using4½”x20lb/ftRangeIIdrillpipe.Drillcollarsofamaximumdiameterof10”andasurfaceorificeof24”.自走式钻机及其外围配套设备,用于开发3500m(41/2"x20lb/ft钻杆)深的地热井,钻铤最大直径为10",表层口径为24"KPEMmustsubmitloyalandvalidcertificatesandallthenecessarycertificationsinordertoprovetheequipmentisbrandNEW.KPEM必须提交真实有效的证书及其它有效证明以证实此套设备是全新的。Thewellstobedrilledarelocatedinareaswithhardaccess,withverylowwateravailabilityandcustomerislookingtomaketheminimumenvironmentalimpact.Forthatreasontherigandtheperipheralscomplieswith:井场分布区域路况差,且水资源稀缺,甲方要求尽可能减少对环境的影响和破坏,基于这些原因,要求如下:-Withatraction,suspensionandbrakesystemthatwillallowthecarriertogothrough,withoutanyproblems,roadswithscarceconformation,lowtractioncoefficientandverypronouncedslopes.车载钻机配有牵引、悬挂、刹车系统,以便保证车子有良好的通过性,爬坡能力。-Tobeinstalledinanareanogreaterthan25metersx50meters.安装区域面积不超过:25mx50m-Assembledanddisassembledwithouttheuseofacrane(hoist).Beingneededonlyalifttruckof12tonsandawinchtruckof40tonswithaplatformof2.60mx7.00m.总装和拆卸不允许用吊车(吊装),能用的只有1台12吨的汽吊和一辆承载能力40吨的绞盘车,平板尺寸为2.60mx7.00m。-Allcomponentsmustbeonanoilskidcompatiblewiththewinchtruckdimensions(maximum2.40mx9.00m).Theoilskidsmustbeconformedofatleast3longitudinalw-beamsandcapableofkeepingitsmechanicalintegrityandit’salignmentofallthecomponentsonit,duringtheloadandunloadingmaneuvers.Oilskidmustbeweightbalancedanditmustbestrong.所有部件必须是橇装,能够放在绞盘车上,撬的最大外围尺寸为2.4m*9m。撬至少由三根纵向W梁组成,并确保其各部分在装卸过程中,具备足够的强度和稳定性。橇整体重量分部平衡,且牢固。-Madesothatallthecomponentsaregroupedwiththeminimumload/unloadmaneuvers.Theloadsmustnotexceedthe20tonswhichisourweightlimitlawforallroads.Inotherwordsnocomponentmustexceedthe20tons.所有部件按最小装卸单元划分,均不能超过20吨,这也是甲方国家道路交通法规定的,换句话说,不允许有超过20吨的部件。-Guaranteedtoworkreliablyintropicalweatherwithahumidityof100%withcondensationandinatemperatureof15degreesCelsiusto50degreesCelsius.工作地区为热带雨林气候,湿度达到100%,温度在15-50度之间-Withalightningsystemthatallowscontinuousoperationduringnighttimewiththeminimumimpactontheenvironmentandwildlife.配备照明系统能够保证用于夜间作业,但是需要尽量减少对环境和周围野生动物的影响-Soundproofedsothatatfullload,themaximumlevelofnoisemustnotexceedthe70dBAona15mradioaroundeveryengine.设备带有消声器,在满载荷时每台柴油机最大噪音在15m范围内不得超过70分贝。-Madesothatalltheequipment:transmissions,motors,radiators,compressor,etc),thatrequireachangeoffluidsaspartoftheirmaintenance,aremountedonaDrippan,capableofcontaininganyspillthatmayoccurduringtheiroperationormaintenance.Allthedrainingportsoftheseequipmentmustbeofeasyaccessandmusthaveaballvalveandfastcouplingconnectionbeforetheplug.变速箱,电机,散热器,压缩机等,均配备油滴收集盘,能够收集在维护保养过程中外泄、外流、喷溅出来的油滴。其排污口要安装...
