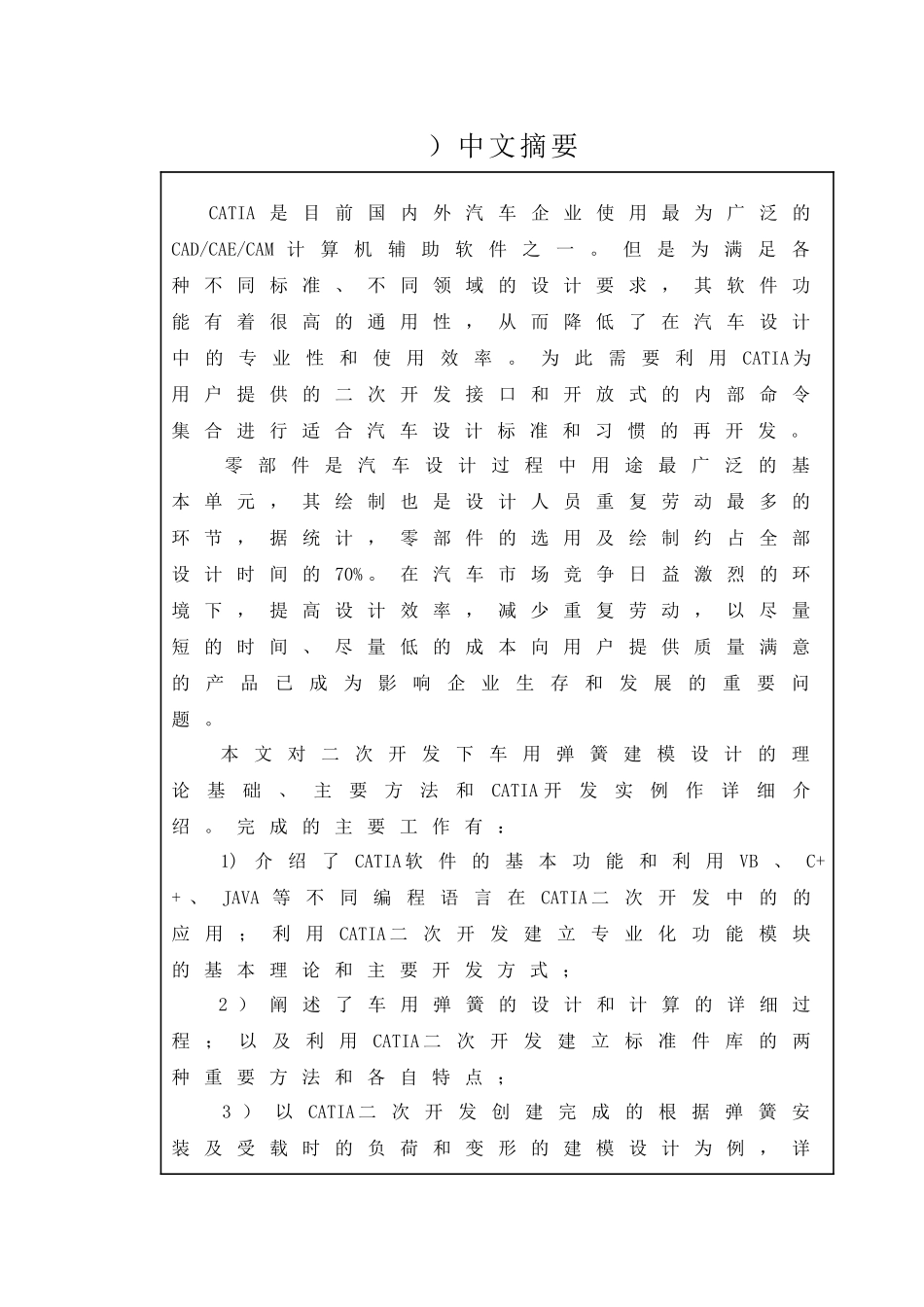

)中文摘要CATIA是目前国内外汽车企业使用最为广泛的CAD/CAE/CAM计算机辅助软件之一。但是为满足各种不同标准、不同领域的设计要求,其软件功能有着很高的通用性,从而降低了在汽车设计中的专业性和使用效率。为此需要利用CATIA为用户提供的二次开发接口和开放式的内部命令集合进行适合汽车设计标准和习惯的再开发。零部件是汽车设计过程中用途最广泛的基本单元,其绘制也是设计人员重复劳动最多的环节,据统计,零部件的选用及绘制约占全部设计时间的70%。在汽车市场竞争日益激烈的环境下,提高设计效率,减少重复劳动,以尽量短的时间、尽量低的成本向用户提供质量满意的产品已成为影响企业生存和发展的重要问题。本文对二次开发下车用弹簧建模设计的理论基础、主要方法和CATIA开发实例作详细介绍。完成的主要工作有:1)介绍了CATIA软件的基本功能和利用VB、C++、JAVA等不同编程语言在CATIA二次开发中的的应用;利用CATIA二次开发建立专业化功能模块的基本理论和主要开发方式;2)阐述了车用弹簧的设计和计算的详细过程;以及利用CATIA二次开发建立标准件库的两种重要方法和各自特点;3)以CATIA二次开发创建完成的根据弹簧安装及受载时的负荷和变形的建模设计为例,详细介绍了基于CATIA二次开发下的车用弹簧建模毕业设计说明书(论文)外文摘要TitleSecondarydevelopmentofthecarbasedonCATIAmodeldesignwithaspringAbstractCATIAisoneoftheusemostwidespreadCAD/CAE/CAMcomputer-aidedsoftwareinthepresentdomesticandforeign.Butinordertosatisfiesdifferentkindofstandard、differentrequestofeachdomain,thefunctionthissoftwareneedsveryhighuniversity.Thusreducedthespecializationandtheuseefficiencyinthedesignofautomobile.Soitisnecessarytodosomeseconddevelopmentwiththeinterface,whichtheCATIAcarriesonfortheuser’sseconddevelopment,andtheopenstyleinternalcommandsettosuitsautomobiledesignstandardandthecustom.Thepartistheusemostwidespreadbasicunitintheautomobiledesignprocess;itsdrawingalsoismostrepeatedlaborlinkofdesigner’sdesignwork.Accordingtothestatistics,theselectsthepartanddrawingtakethe70%timeofcompletelydesigns.Undertheintenseenvironmentoftheautomarketcompetition,enhancestheratedcapacitydaybyday,reducestherepetitionwork,andprovidesqualitysatisfactionproducttotheuserbyasfaraspossibleshorttime,andasfaraspossiblelowcostbecomestotheimportantquestionofinfluenceenterprisesurvivalandthedevelopment.1)introducedthebasicfunctionofCATIAsoftwarebasicfunctionandthedifferentprogramminglanguageusesintheCATIAseconddevelopmentapplication,suchasVB,C++,JAVAandsoon;TheelementarytheoryandmaindevelopmentwayinusingtheseconddevelopmentofCATIAestablishmentsspecializationfunctionmodule;2)Describesthedesignofautomotivespringsanddetailedprocessofcalculation;andtheuseofCATIAsecondarydevelopmentofastandardpartslibraryoftwoimportantmethodsandtheircharacteristics;3)CATIAsecondarydevelopmenttocreateacompleteinstallationandunderspringloadbyloadanddeformationofthemodelingdesign,forexample,describedindetailundertheseconddevelopmentbasedonCATIAspringmodelcardesignmethodsandspecificsteps.KeywordsCATIAseconddevelopmentSpringModeling目次1绪论………………………………………………………………………11.1CAD的二次开发……………………………………………………………………………11.2国内外标准件库现状…………………………………………………………………31.3………………………………………………课题的选题依据和主要研究任务52CATIA………二次开发……………………………………………………52.1CATIA…………二次开发的几种方式…………………………………………62.2AutomationAPI……………二次开发…………………………………………83………………软件介绍…...
