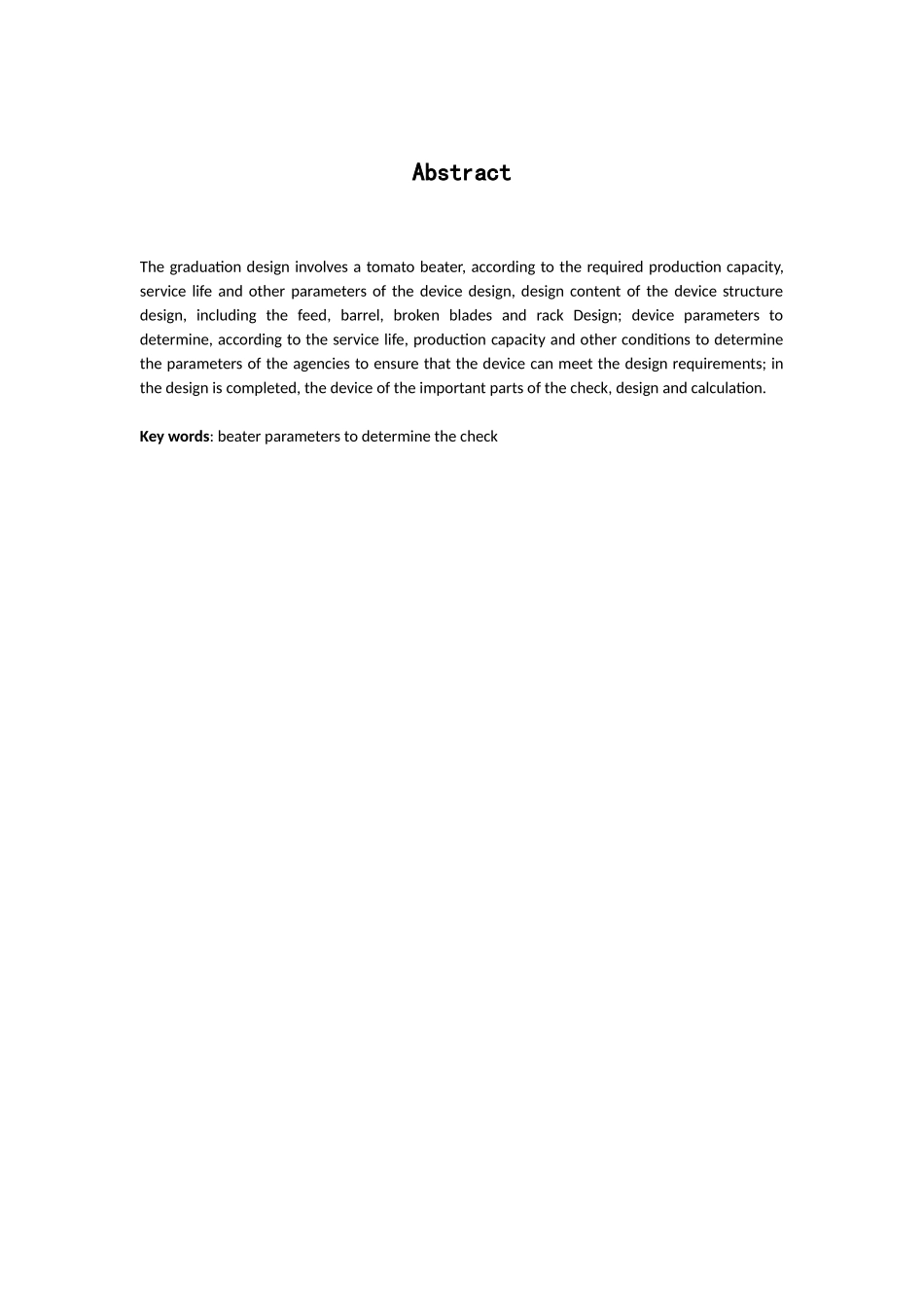

摘要本次毕业设计涉及一种番茄打浆机,根据所要求的生产能力、使用寿命等参数对本装置进行设计,设计内容有装置的结构设计,包括进料口、料桶、破碎桨叶以及机架的设计;装置参数的确定,根据使用寿命,生产能力等条件,确定各机构的参数,保证装置能够满足设计需求;在设计完成之后,对本装置的重要零部件进行校核、设计及计算。关键字:打浆机参数确定校核AbstractThegraduationdesigninvolvesatomatobeater,accordingtotherequiredproductioncapacity,servicelifeandotherparametersofthedevicedesign,designcontentofthedevicestructuredesign,includingthefeed,barrel,brokenbladesandrackDesign;deviceparameterstodetermine,accordingtotheservicelife,productioncapacityandotherconditionstodeterminetheparametersoftheagenciestoensurethatthedevicecanmeetthedesignrequirements;inthedesigniscompleted,thedeviceoftheimportantpartsofthecheck,designandcalculation.Keywords:beaterparameterstodeterminethecheck目录摘要..................................................................................................................................................1第一章绪论..............................................................................................................................31.1研究目的及意义.................................................................................................................31.2国内外研究现状.................................................................................................................31.3设计任务............................................................................................................................4第二章打浆机的设计方案分析...............................................................................................52.1设计参数............................................................................................................................52.2设计要求............................................................................................................................52.3打浆机的结构分析.............................................................................................................5第三章打浆机各部分的设计...................................................................................................73.1滚筒的设计........................................................................................................................73.1.1滚筒的结构和材料..................................................................................................73.1.2滚筒长度.................................................................................................................73.1.3番茄打浆时间..........................................................................................................83.1.4棍棒与筛筒之间的间隙..........................................................................................83.1.5滚筒功率计算.........................................................................................................8第四章相关零部件的设计计算.............................................................................................104.1带传动系统的设计...........................................................................................................104.1.1电机的选择............................................................................................................104.1.2带传动类...
