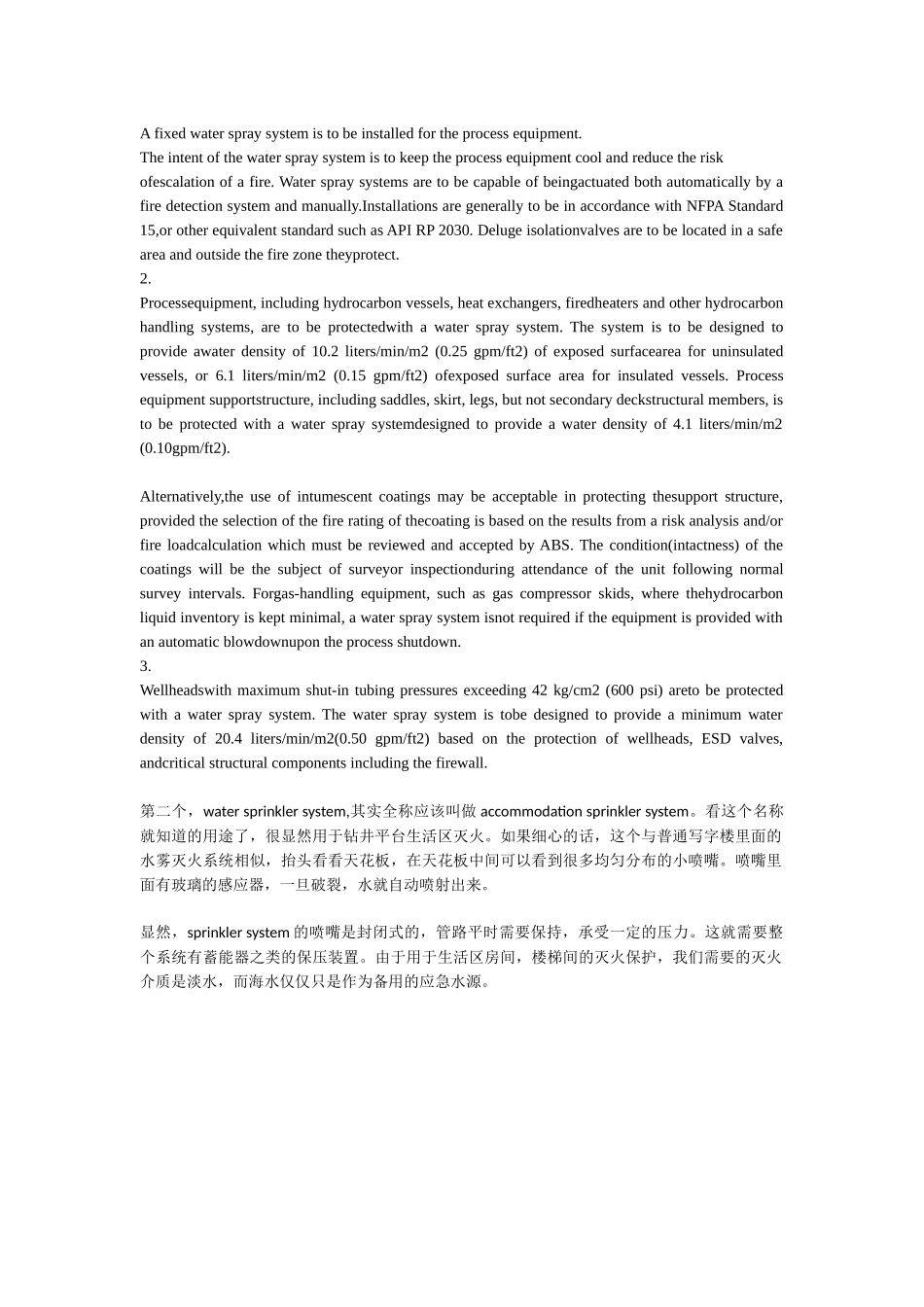

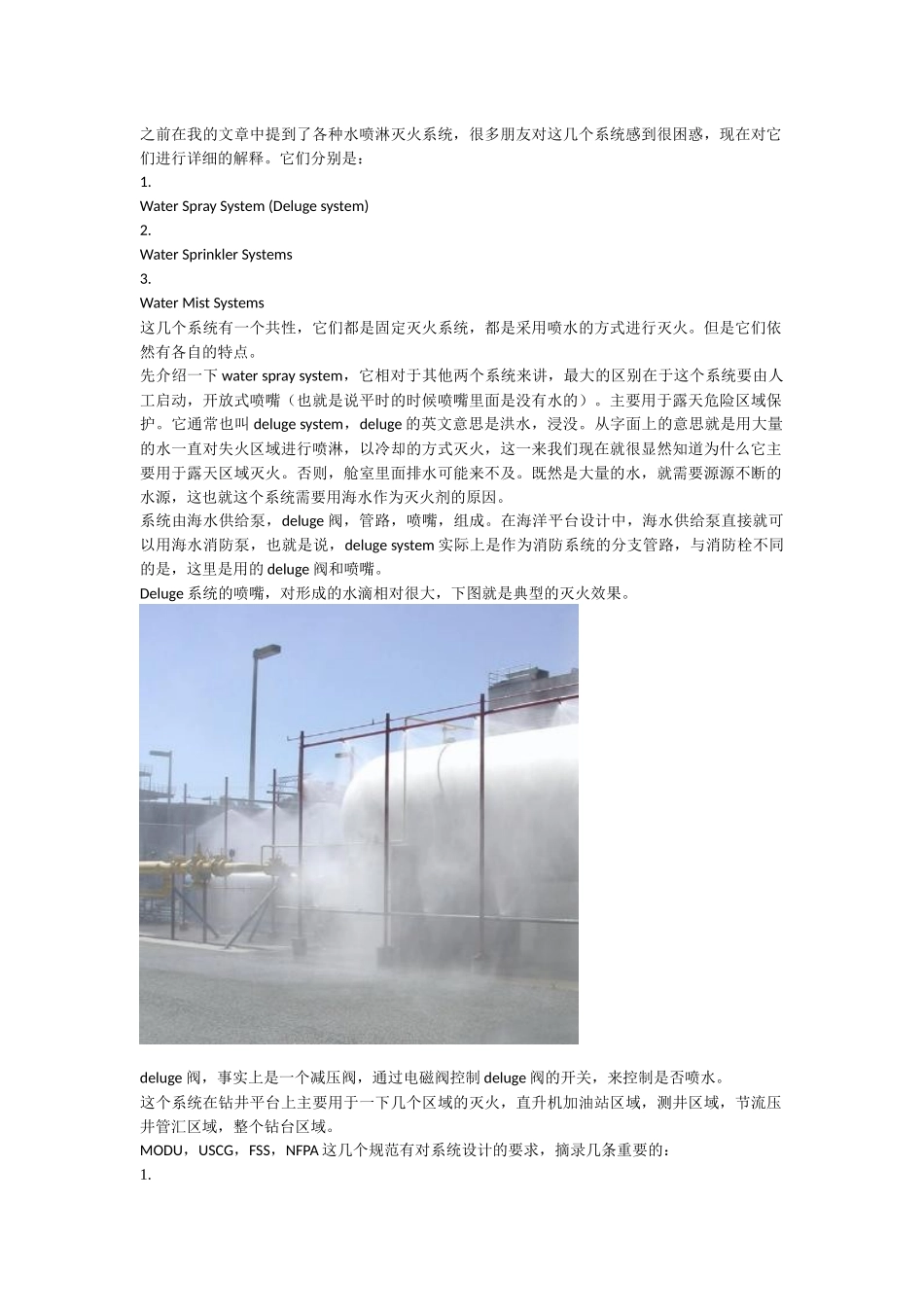

之前在我的文章中提到了各种水喷淋灭火系统,很多朋友对这几个系统感到很困惑,现在对它们进行详细的解释。它们分别是:1.WaterSpraySystem(Delugesystem)2.WaterSprinklerSystems3.WaterMistSystems这几个系统有一个共性,它们都是固定灭火系统,都是采用喷水的方式进行灭火。但是它们依然有各自的特点。先介绍一下waterspraysystem,它相对于其他两个系统来讲,最大的区别在于这个系统要由人工启动,开放式喷嘴(也就是说平时的时候喷嘴里面是没有水的)。主要用于露天危险区域保护。它通常也叫delugesystem,deluge的英文意思是洪水,浸没。从字面上的意思就是用大量的水一直对失火区域进行喷淋,以冷却的方式灭火,这一来我们现在就很显然知道为什么它主要用于露天区域灭火。否则,舱室里面排水可能来不及。既然是大量的水,就需要源源不断的水源,这也就这个系统需要用海水作为灭火剂的原因。系统由海水供给泵,deluge阀,管路,喷嘴,组成。在海洋平台设计中,海水供给泵直接就可以用海水消防泵,也就是说,delugesystem实际上是作为消防系统的分支管路,与消防栓不同的是,这里是用的deluge阀和喷嘴。Deluge系统的喷嘴,对形成的水滴相对很大,下图就是典型的灭火效果。deluge阀,事实上是一个减压阀,通过电磁阀控制deluge阀的开关,来控制是否喷水。这个系统在钻井平台上主要用于一下几个区域的灭火,直升机加油站区域,测井区域,节流压井管汇区域,整个钻台区域。MODU,USCG,FSS,NFPA这几个规范有对系统设计的要求,摘录几条重要的:1.Afixedwaterspraysystemistobeinstalledfortheprocessequipment.Theintentofthewaterspraysystemistokeeptheprocessequipmentcoolandreducetheriskofescalationofafire.Waterspraysystemsaretobecapableofbeingactuatedbothautomaticallybyafiredetectionsystemandmanually.InstallationsaregenerallytobeinaccordancewithNFPAStandard15,orotherequivalentstandardsuchasAPIRP2030.Delugeisolationvalvesaretobelocatedinasafeareaandoutsidethefirezonetheyprotect.2.Processequipment,includinghydrocarbonvessels,heatexchangers,firedheatersandotherhydrocarbonhandlingsystems,aretobeprotectedwithawaterspraysystem.Thesystemistobedesignedtoprovideawaterdensityof10.2liters/min/m2(0.25gpm/ft2)ofexposedsurfaceareaforuninsulatedvessels,or6.1liters/min/m2(0.15gpm/ft2)ofexposedsurfaceareaforinsulatedvessels.Processequipmentsupportstructure,includingsaddles,skirt,legs,butnotsecondarydeckstructuralmembers,istobeprotectedwithawaterspraysystemdesignedtoprovideawaterdensityof4.1liters/min/m2(0.10gpm/ft2).Alternatively,theuseofintumescentcoatingsmaybeacceptableinprotectingthesupportstructure,providedtheselectionofthefireratingofthecoatingisbasedontheresultsfromariskanalysisand/orfireloadcalculationwhichmustbereviewedandacceptedbyABS.Thecondition(intactness)ofthecoatingswillbethesubjectofsurveyorinspectionduringattendanceoftheunitfollowingnormalsurveyintervals.Forgas-handlingequipment,suchasgascompressorskids,wherethehydrocarbonliquidinventoryiskeptminimal,awaterspraysystemisnotrequirediftheequipmentisprovidedwithanautomaticblowdownupontheprocessshutdown.3.Wellheadswithmaximumshut-intubingpressuresexceeding42kg/cm2(600psi)aretobeprotectedwithawaterspraysystem.Thewaterspraysystemistobedesignedtoprovideaminimumwaterdensityof20.4liters/min/m2(0.50gpm/ft2)basedontheprotectionofwellheads,ESDvalves,andcriticalstructuralcomponentsincludingthefirewall.第二个,watersprinklersystem,其实全称应该叫做accommodationsprinklersystem。看这个名称就知道的用途了,很显然用于钻井平台生活区灭火。如果细心的话,这个与普通写字楼里面的水雾灭火系统相似,抬头看看天花板,在天花板中间可以看到很多均匀分布的小喷嘴。喷嘴里面有玻...
