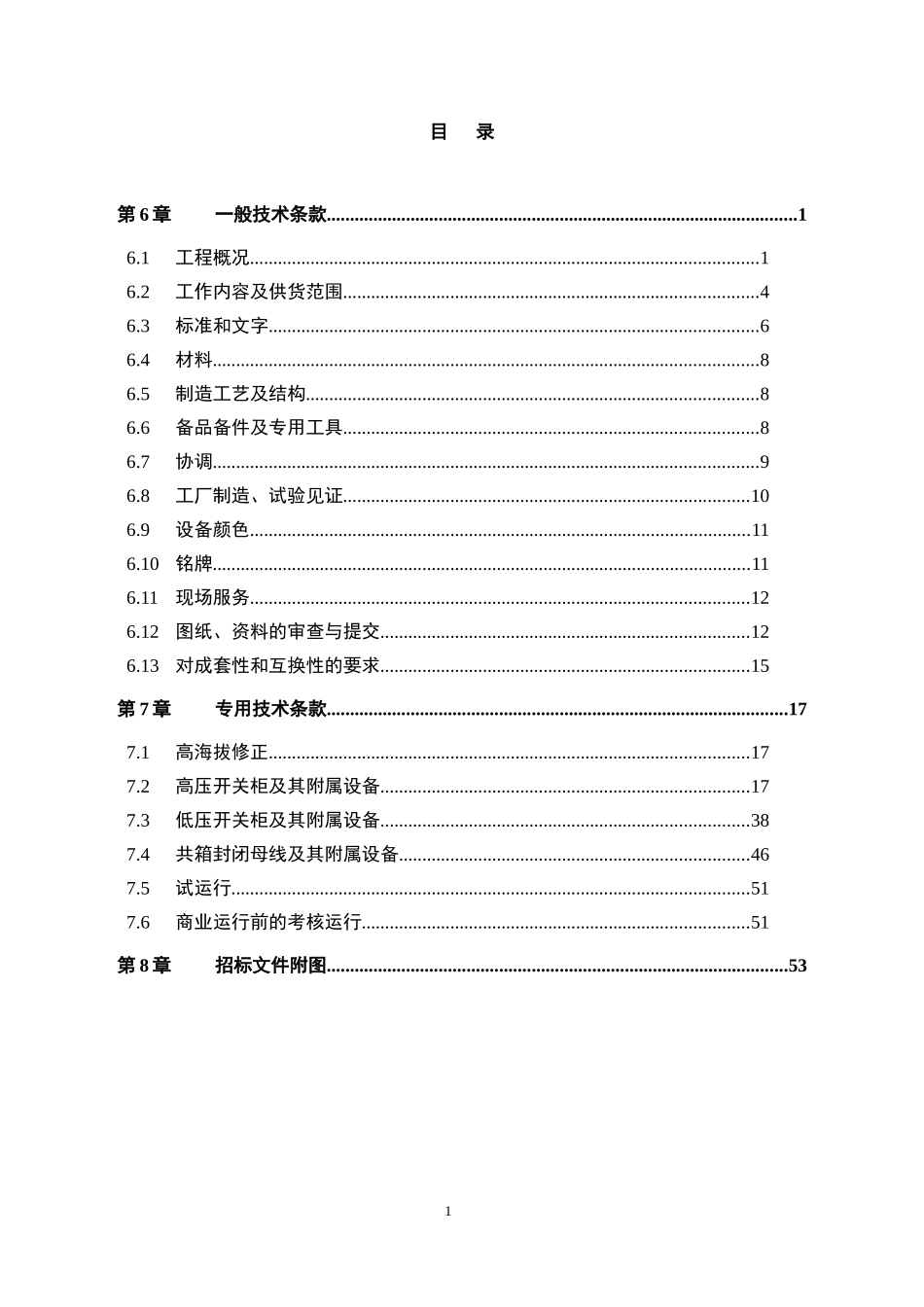

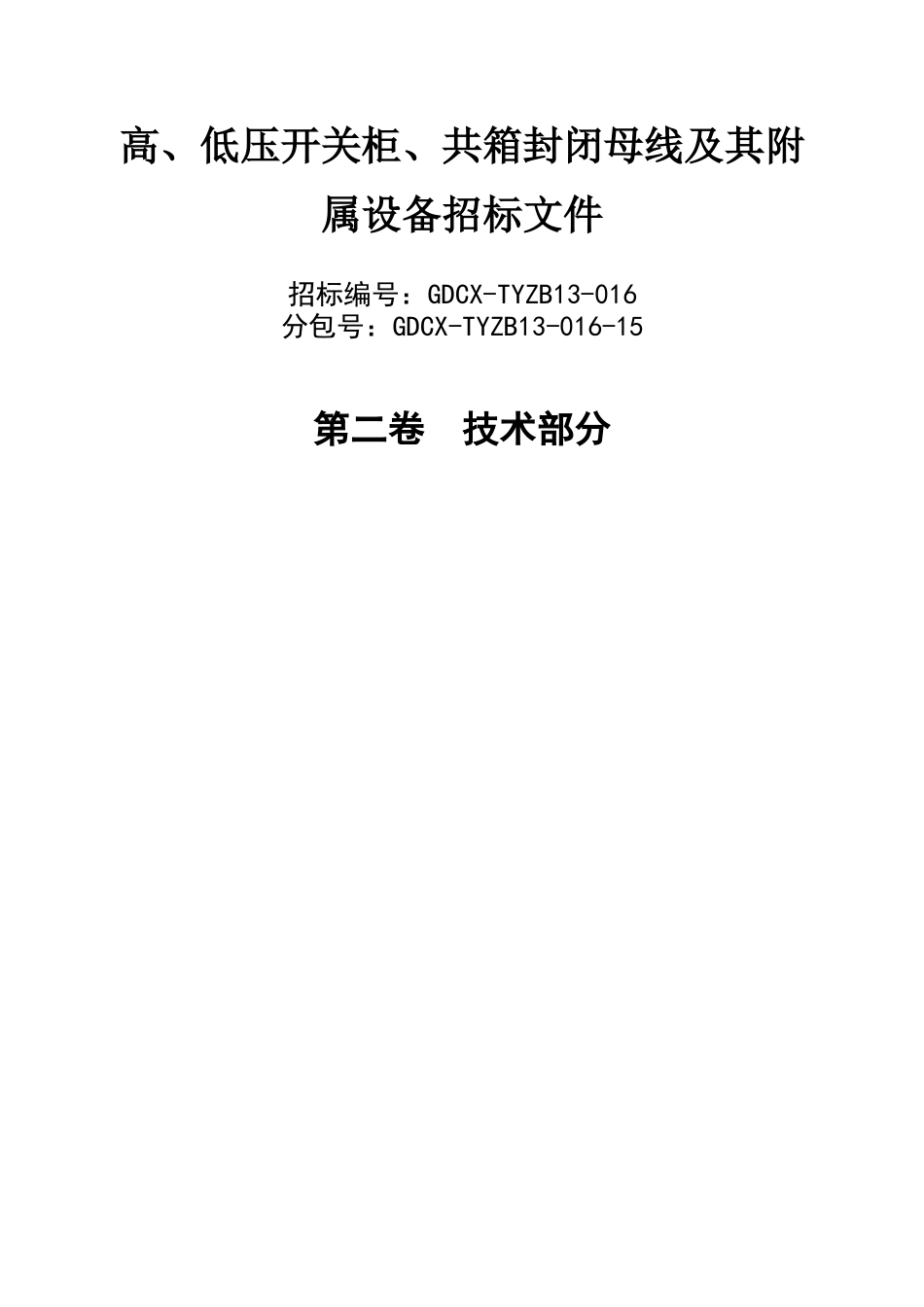

高、低压开关柜、共箱封闭母线及其附属设备招标文件招标编号：GDCX-TYZB13-016分包号：GDCX-TYZB13-016-15第二卷技术部分目录第6章一般技术条款.....................................................................................................16.1工程概况.............................................................................................................16.2工作内容及供货范围.........................................................................................46.3标准和文字.........................................................................................................66.4材料.....................................................................................................................86.5制造工艺及结构.................................................................................................86.6备品备件及专用工具.........................................................................................86.7协调.....................................................................................................................96.8工厂制造、试验见证.......................................................................................106.9设备颜色...........................................................................................................116.10铭牌...................................................................................................................116.11现场服务...........................................................................................................126.12图纸、资料的审查与提交...............................................................................126.13对成套性和互换性的要求...............................................................................15第7章专用技术条款...................................................................................................177.1高海拔修正.......................................................................................................177.2高压开关柜及其附属设备...............................................................................177.3低压开关柜及其附属设备...............................................................................387.4共箱封闭母线及其附属设备...........................................................................467.5试运行...............................................................................................................517.6商业运行前的考核运行...................................................................................51第8章招标文件附图...................................................................................................531第6章一般技术条款6.1.1电气设备布置电气设备布置见招标文件附图4——尾水副厂房3056.50m电气设备及共箱封闭母线布置图。6.1.3.112kV高压开关柜12kV高压开关柜布置于尾水副厂房发电机电压配电装置室内3056.50m高程，与每台水轮发电机组一一对应布置。发电机主引出电缆经电缆沟和电缆桥架引至高压开关柜，励磁变压器经电力电缆与高压开关柜相连。6.1.3.20.4kV低压开关柜及0.4kV密集型母线0.4kV厂用主盘布置于尾水副厂房低压配电盘室内3056.50m高程；0.4kV机旁动力盘布置于主厂房主机层各机组段3053.00m高程；其余0.4kV低压开关柜布置于厂房内及坝区配电室内各厂用设备附近。0.4kV厂用主盘与厂用变压器低压侧以密集型母线相连，其余厂用分盘均以电缆与厂用主盘相连。6.1.3.310.5kV共箱封闭母线10.5kV共箱封闭母线分别布置与尾水副...
