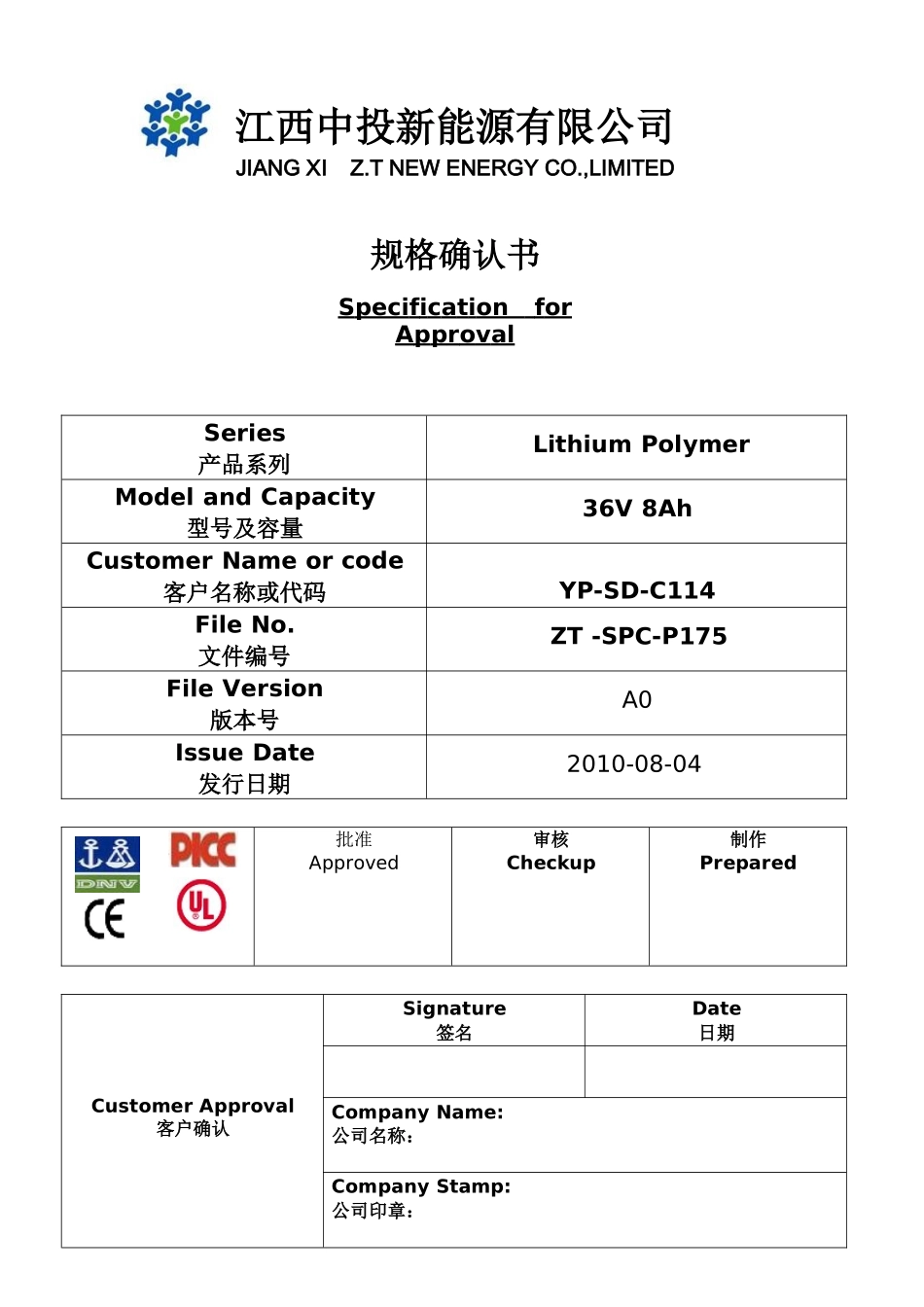

江西中投新能源有限公司JIANGXIZ.TNEWENERGYCO.,LIMITED规格确认书SpecificationforApprovalSeries产品系列LithiumPolymerModelandCapacity型号及容量36V8AhCustomerNameorcode客户名称或代码YP-SD-C114FileNo.文件编号ZT-SPC-P175FileVersion版本号A0IssueDate发行日期2010-08-04批准Approved审核Checkup制作PreparedCustomerApproval客户确认Signature签名Date日期CompanyName:公司名称:CompanyStamp:公司印章:AEMDMENTRECORDS(规格变更记录)版本号VersionNumber变更内容描述Emendatorycontentdescription更改页Emendatorypage发行日期IssuedDate制作Prepared审核Checkup批准Approved制造商保留在没有预先通知的情况下改变和修正设计及规格说明书的权力1of10Manufacturerreservetherighttoalteroramendthedesign,modelandspecificationwithoutpriornoticeContents目录1.适用范围Scope………………………………………………………………………………………32.体系System………………………………………………………………………………………33.常规技术参数GeneralSpecifications……………………………………………………………………34.产品性能测试Productperformancetest…………………………………………………………………45.产品贮存及运输ProductStorageandTransportation…………………………………………………66.电池操作指引BatteryHandlingGuideline………………………………………………………………67注意事项Remark……………………………………………………………………………………8附录Appendix…………………………………………………………………………………9制造商保留在没有预先通知的情况下改变和修正设计及规格说明书的权力2of10Manufacturerreservetherighttoalteroramendthedesign,modelandspecificationwithoutpriornotice1.适用范围Scope本产品规格书适用于江西中投新能源有限公司向客户提供的可充电锂聚合物电池产品36V8Ah。ThisspecificationisappliedtorechargeableLithiumPolymerCell36V8AhproducedbyJiangxiZ.TNewEnergyCO.,LTD.2.体系System可充电聚合物锂离子电池RechargeableLithiumIonPolymerBattery3.常规技术参数GeneralSpecificationsNO.项目Item规格参数Specification1型号Model36V8Ah(2P10S)2额定容量RatedCapacity(@5A)最小值:Min.:8Ah(@2Achargeand5Adischarge)特征值:Typical:8.5Ah(@2Achargeand5Adischarge)3内阻internalImpedance≤200mohm4标称电压NominalVoltage36V5充电截止电压ChargingVoltage42±0.05V6充电方法ChargingMethod恒流恒压充电CC&CV标准充电制度StandardChargingProcess在25°C5°C下,以2A恒流充电至42V,然后恒压充电到充电电流减小到0.02C,即充满电。2A(CC)chargeto42V,when42V(CV)isreached,chargeratewillreduceto0.02C(A)forfullcharge7放电方法DischargingMethod恒流放电constantcurrentdischarge8标准放电制度StandardDischargemethod在20°C5°C下以5A恒流放电至30.0V。Cellsshouldbedischargedataconstantcurrentof5Ato30.0voltsat20°C±5°C9标准放电时间Standarddischargetime≥120min10最大持续放电电流Max.ContinuousDischargeCurrent8A11放电截止电压DischargeCut-OffVoltage30.0V制造商保留在没有预先通知的情况下改变和修正设计及规格说明书的权力3of10Manufacturerreservetherighttoalteroramendthedesign,modelandspecificationwithoutpriornotice12电池外壳资料Thecrustdata客供外壳,最大外形尺寸为435mm×81mm×130mm具体见附图Thecurstissuppliedbytheclient,themaximumdimensionsis435mm×81mm×130mm,refertotheattacheddrawing13电池重量(最大值)BatteryWeight(MAX)3.5Kg14电池循环寿命(标准充放电)batteryCycleLife(standardcharge&discharge)≥500次(注:剩余容量≥60%remark:theresidualcapacityismorethan60%ofthefirstcycledischargecapacity)15操作温度OperatingTemperature放电Discharge-20°Cto55°C充电Charge0°Cto45°C贮存Storage10°Cto30°C16贮存温度...
