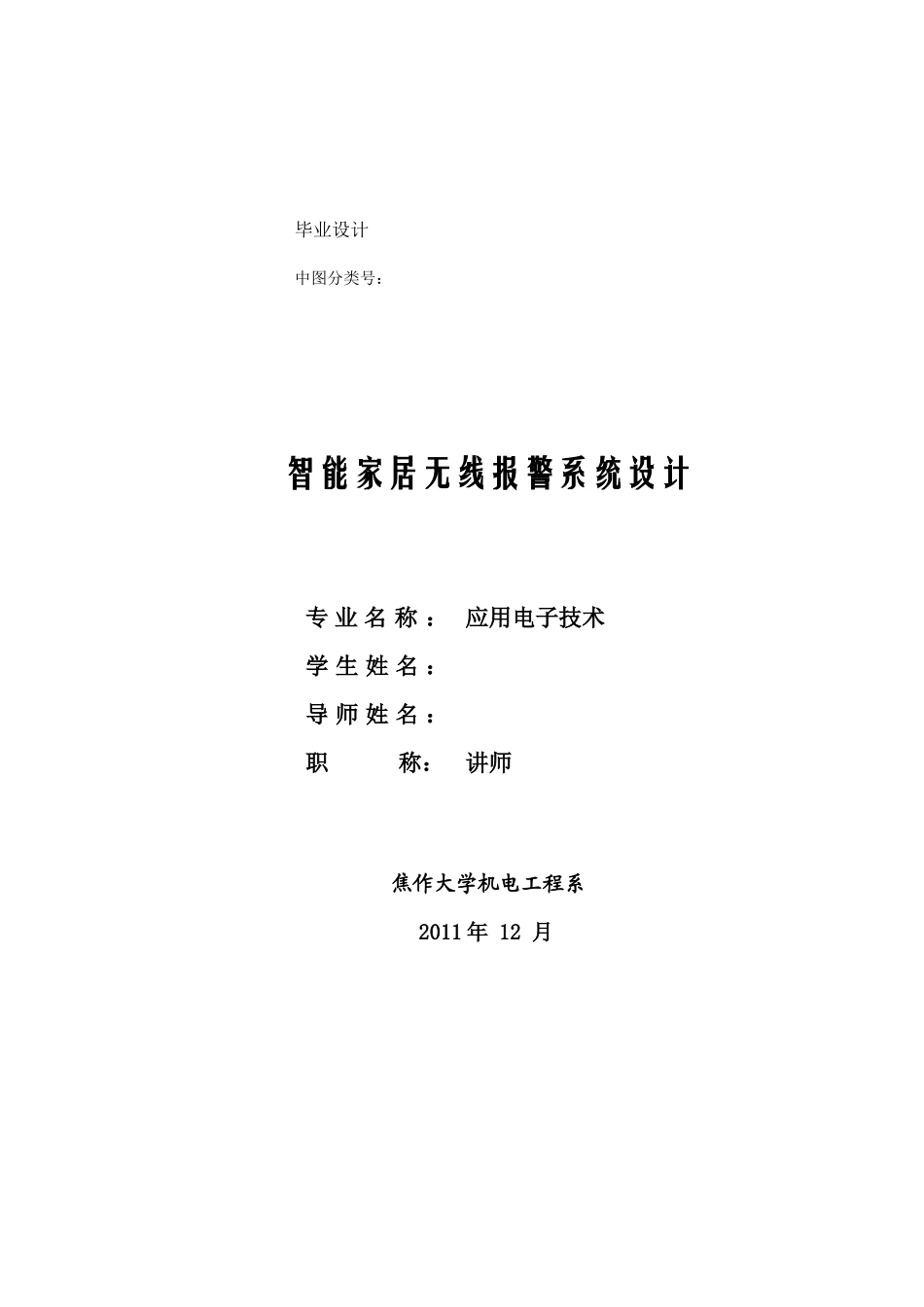

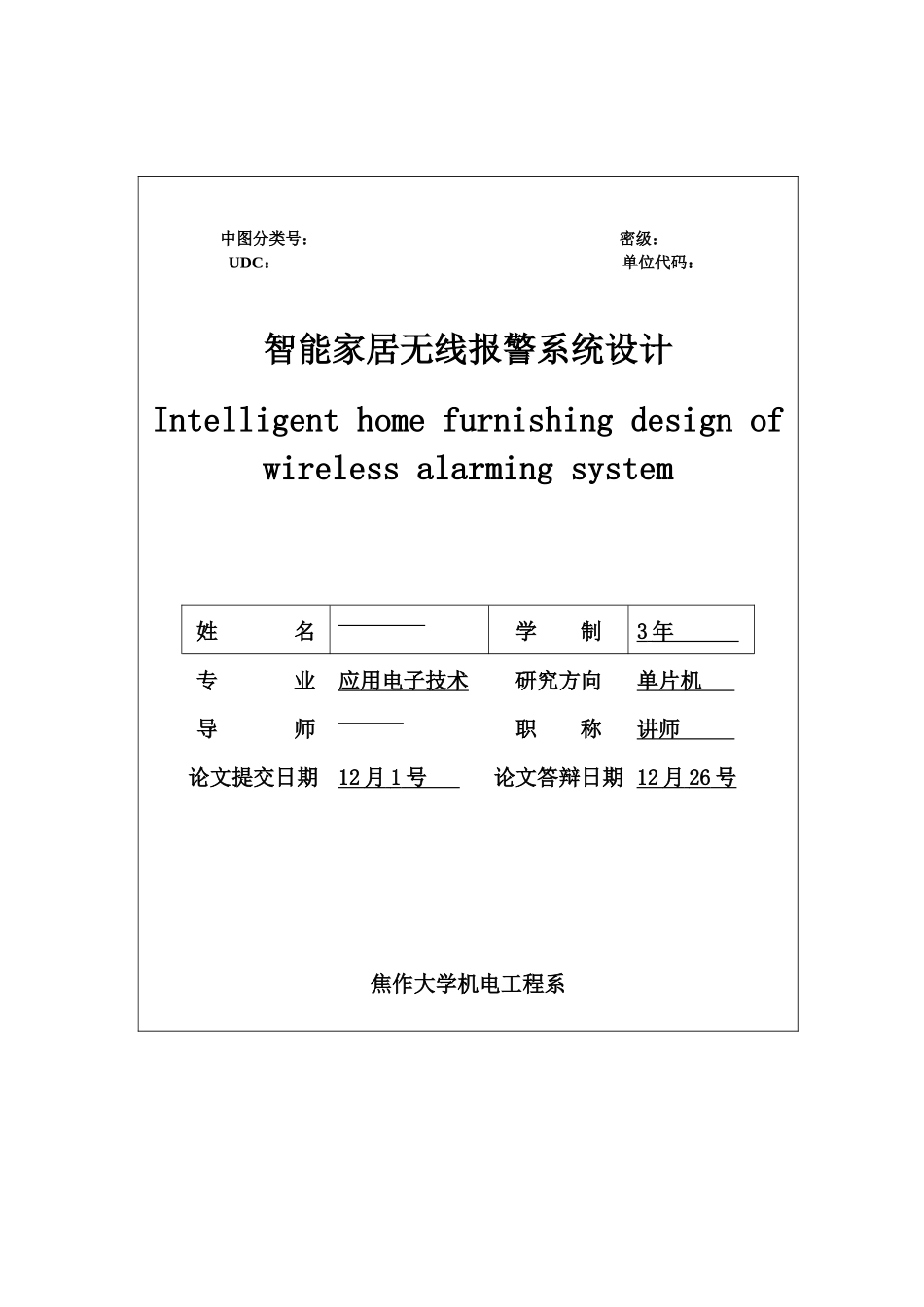

毕业设计中图分类号：智能家居无线报警系统设计专业名称：应用电子技术学生姓名：导师姓名：职称：讲师焦作大学机电工程系2011年12月中图分类号：密级：UDC：单位代码：智能家居无线报警系统设计Intelligenthomefurnishingdesignofwirelessalarmingsystem姓名学制3年专业应用电子技术研究方向单片机导师职称讲师论文提交日期12月1号论文答辩日期12月26号焦作大学机电工程系摘要随着信息技术的飞速发展以及人们生活水平的大幅度提高，人们对住宅的需求已从追求简单的生存空间向着追求质量、功能、服务等多重需求过渡。同时，随着人们的保护意识不断增强，防盗措施的紧迫性也逐渐被提上了日程，防盗报警系统应运而生。本文设计了住宅智能化中的红外防盗报警系统。本系统以单片机89C51为核心，配以各种功能模块，来满足人们日常生活中的安全需求，本系统采用了热释电红外传感器，它的制作简单、成本低，安装比较方便，抗干扰力强、灵敏度高，而且安装较隐蔽，不易被发觉。该系统主要包括红外探测电路、LCD控制电路、声光报警电路及单片机控制电路等。自动检测功能由红外探测电路实现，当有盗贼穿过此装置时，红外传感器立即将检测到的信号经过信号处理后传送给主机电路，由主机来判断信号并驱动电路报警。报警功能由扬声器、蜂鸣器等发声装置实现，同时通过RS-485通信报警给小区警卫。本设计通过红外传感器探测人体红外线信号，从而达到报警的功能，满足了人们日常生活对防盗报警功能的需要。关键词：防盗报警，红外探测，RS-485通信，声光AbstractWiththerapiddevelopmentofcommunicationtechniqueandgreatimprovementofpeople’slivingstandard,theneedhasbeenchangedfromonlythelivingspacetomultiformneedsofquality,function,serviceandsoon.Atthesametime,astheincreasingofprotectingawareness,securitymeasureshavegraduallybeenputontheagenda.Anti-theftalarmsystemcameintobeing.Akindofintelligentinfraredanti-theftalarmsystemisdesignedforresidentialarea.Inordertomeetthesecurityneedsofdailylife,thissystemwithvariousfunctionmodulescoreswithmicrocontroller89C51.ThissystemusedPyroelectricinfraredsensor，italsohassomeadvantagessuchaseasymaking,lowcost,convenientinstallation,stronganti-interferenceability,highsensitivity,andamorehiddeninstallationanddifficulttofound.Thissystemincludesinfrareddetectingcircuit,LCDcontrolcircuit,soundandlightalarmcircuitandMCUcontrolcircuit.Automaticdetectioncanbecompletedbyinfrareddetectingcircuit.Whentheftisdetected,thesignalproducedbyinfraredsensorwillbetransmittedtothesignalprocessingmodule,andthenthiscircuitsendsthesignalreceivedtothemaincircuitwhichwilljudgeitanddrivethealarmmodule.Alarmfunctionisrealizedbyaudibledevicessuchasspeaker,buzzer,etc.,anditcanbetransmittedtosub-districtguardhousethroughRS-485communicationsalerting.Thissystemdetectstheinfraredsignalofhumanbodybyinfraredsensor,soithasthealarmingfunction.Thissystemmeetstheneedofanti-theftandalarminpeople’sdailylive.KEYWORDS：anti-theftandalarm,infrareddetecting,RS-485communication,soundandlightalarm目录摘要.................................................................................................................................................IAbstract..........................................................................................................................................II目录.................................................................................................................................................I第1章绪论.....................................................................................................................................11.1前言...............................
