阳朔丽水酒店施工组织设计VIP免费

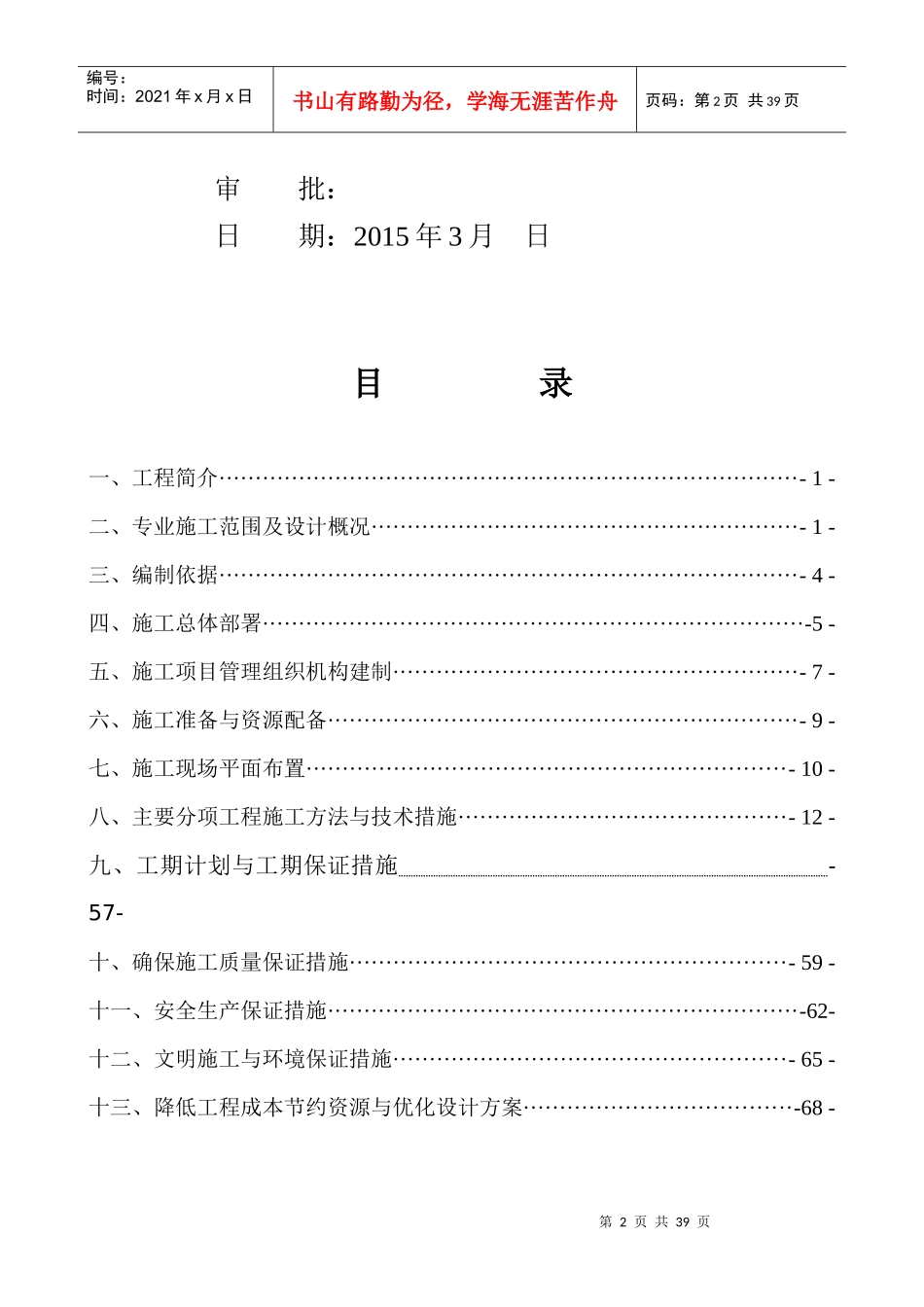

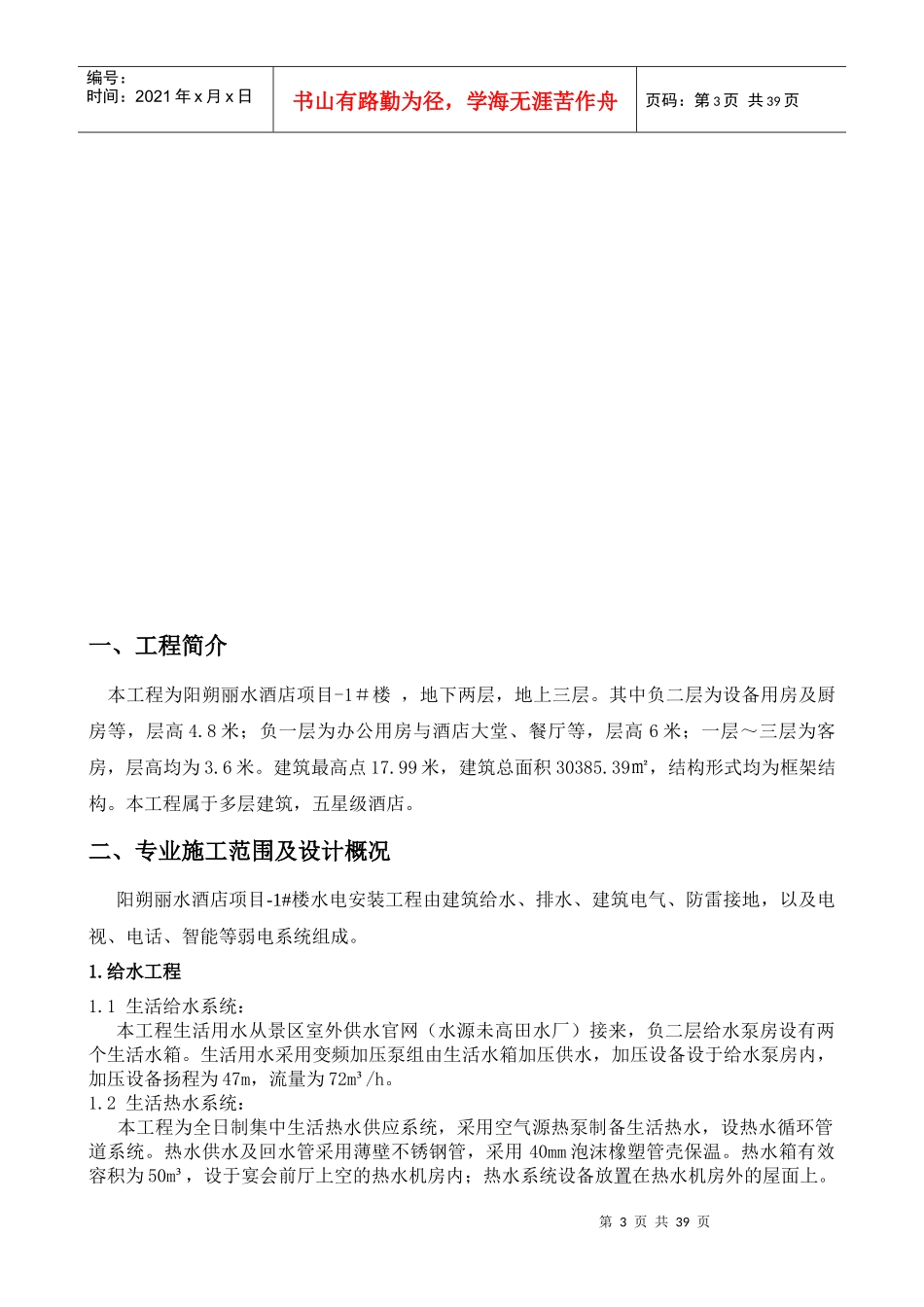

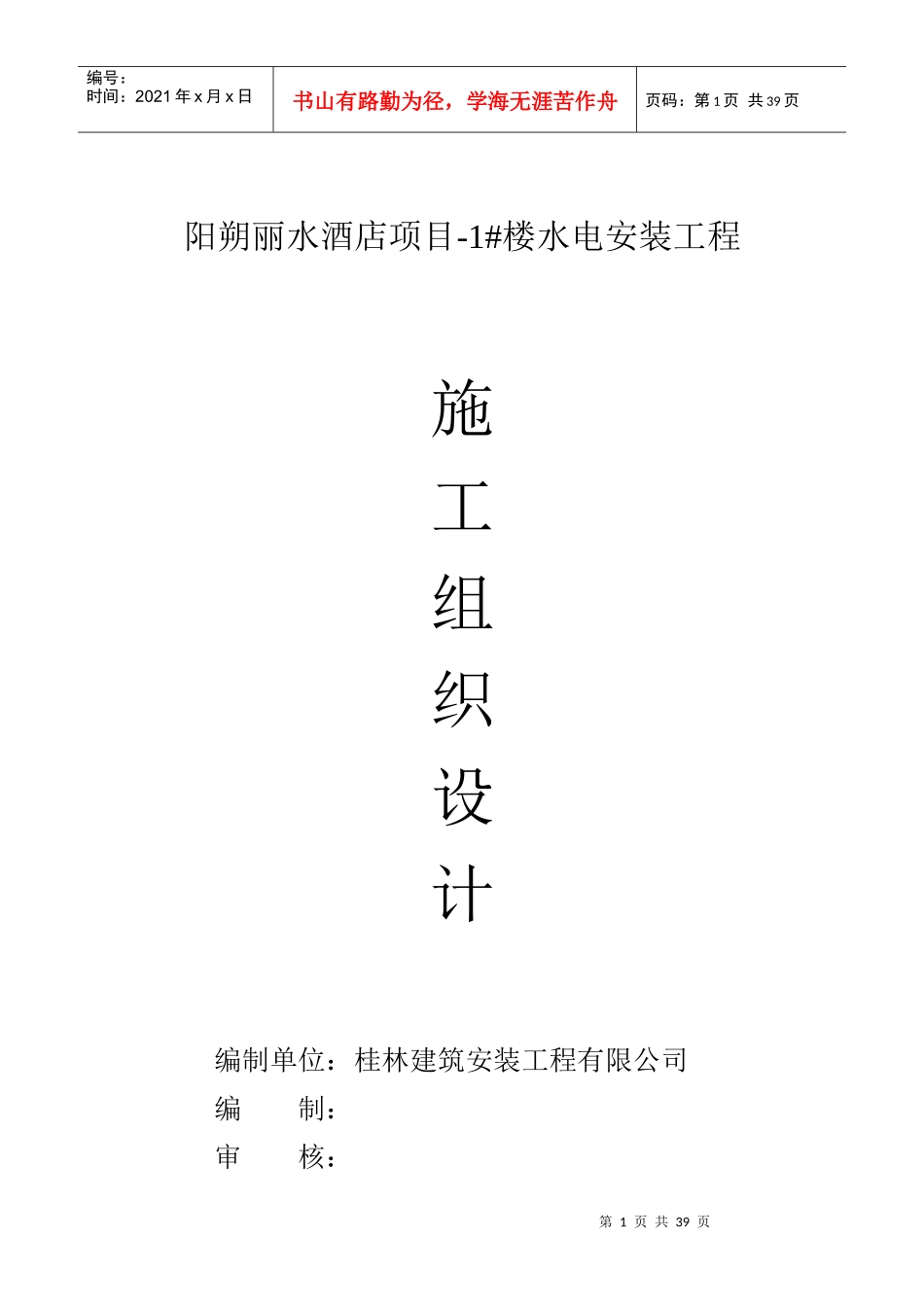

第1页共39页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第1页共39页阳朔丽水酒店项目-1#楼水电安装工程施工组织设计编制单位：桂林建筑安装工程有限公司编制：审核：第2页共39页第1页共39页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第2页共39页审批：日期：2015年3月日目录一、工程简介················································································-1-二、专业施工范围及设计概况···························································-1-三、编制依据················································································-4-四、施工总体部署···········································································-5-五、施工项目管理组织机构建制························································-7-六、施工准备与资源配备·································································-9-七、施工现场平面布置··································································-10-八、主要分项工程施工方法与技术措施·············································-12-九、工期计划与工期保证措施-57-十、确保施工质量保证措施····························································-59-十一、安全生产保证措施·································································-62-十二、文明施工与环境保证措施······················································-65-十三、降低工程成本节约资源与优化设计方案·····································-68-第3页共39页第2页共39页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第3页共39页一、工程简介本工程为阳朔丽水酒店项目-1＃楼，地下两层，地上三层。其中负二层为设备用房及厨房等，层高4.8米；负一层为办公用房与酒店大堂、餐厅等，层高6米；一层～三层为客房，层高均为3.6米。建筑最高点17.99米，建筑总面积30385.39㎡，结构形式均为框架结构。本工程属于多层建筑，五星级酒店。二、专业施工范围及设计概况阳朔丽水酒店项目-1#楼水电安装工程由建筑给水、排水、建筑电气、防雷接地，以及电视、电话、智能等弱电系统组成。1.给水工程1.1生活给水系统：本工程生活用水从景区室外供水官网（水源未高田水厂）接来，负二层给水泵房设有两个生活水箱。生活用水采用变频加压泵组由生活水箱加压供水，加压设备设于给水泵房内，加压设备扬程为47m，流量为72m³/h。1.2生活热水系统：本工程为全日制集中生活热水供应系统，采用空气源热泵制备生活热水，设热水循环管道系统。热水供水及回水管采用薄壁不锈钢管，采用40mm泡沫橡塑管壳保温。热水箱有效容积为50m³，设于宴会前厅上空的热水机房内；热水系统设备放置在热水机房外的屋面上。第4页共39页第3页共39页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第4页共39页2．排水工程2.1排水系统采用雨、污分流制。污水排水采用单立管制，设伸顶通气管。厨房含油污水先汇至不锈钢隔油池处理，再经潜污泵提升至室...
