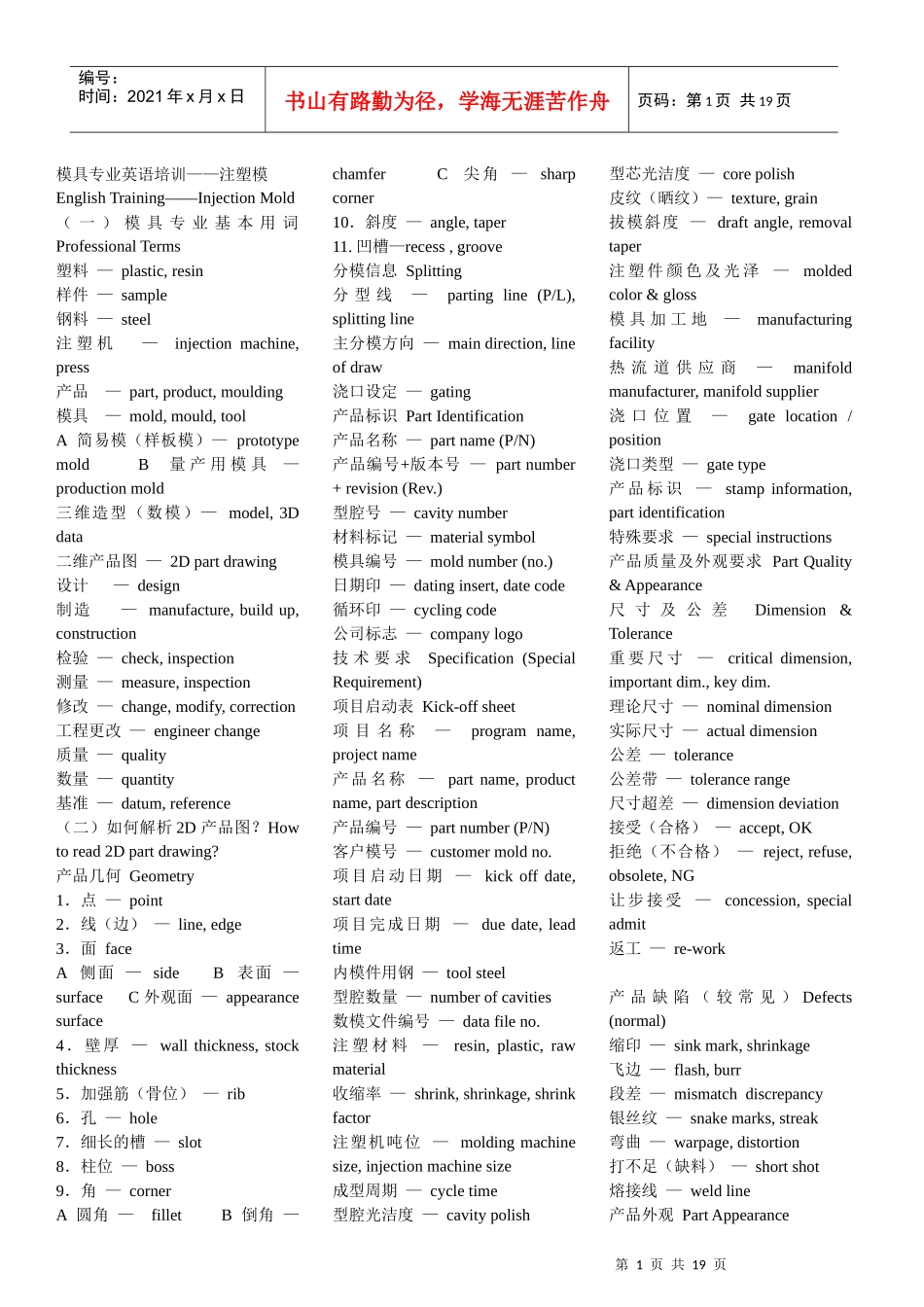

第1页共19页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第1页共19页模具专业英语培训——注塑模EnglishTraining——InjectionMold（一）模具专业基本用词ProfessionalTerms塑料—plastic,resin样件—sample钢料—steel注塑机—injectionmachine,press产品—part,product,moulding模具—mold,mould,toolA简易模（样板模）—prototypemoldB量产用模具—productionmold三维造型（数模）—model,3Ddata二维产品图—2Dpartdrawing设计—design制造—manufacture,buildup,construction检验—check,inspection测量—measure,inspection修改—change,modify,correction工程更改—engineerchange质量—quality数量—quantity基准—datum,reference（二）如何解析2D产品图？Howtoread2Dpartdrawing?产品几何Geometry1．点—point2．线（边）—line,edge3．面faceA侧面—sideB表面—surfaceC外观面—appearancesurface4．壁厚—wallthickness,stockthickness5．加强筋（骨位）—rib6．孔—hole7．细长的槽—slot8．柱位—boss9．角—cornerA圆角—filletB倒角—chamferC尖角—sharpcorner10．斜度—angle,taper11.凹槽—recess,groove分模信息Splitting分型线—partingline(P/L),splittingline主分模方向—maindirection,lineofdraw浇口设定—gating产品标识PartIdentification产品名称—partname(P/N)产品编号+版本号—partnumber+revision(Rev.)型腔号—cavitynumber材料标记—materialsymbol模具编号—moldnumber(no.)日期印—datinginsert,datecode循环印—cyclingcode公司标志—companylogo技术要求Specification(SpecialRequirement)项目启动表Kick-offsheet项目名称—programname,projectname产品名称—partname,productname,partdescription产品编号—partnumber(P/N)客户模号—customermoldno.项目启动日期—kickoffdate,startdate项目完成日期—duedate,leadtime内模件用钢—toolsteel型腔数量—numberofcavities数模文件编号—datafileno.注塑材料—resin,plastic,rawmaterial收缩率—shrink,shrinkage,shrinkfactor注塑机吨位—moldingmachinesize,injectionmachinesize成型周期—cycletime型腔光洁度—cavitypolish型芯光洁度—corepolish皮纹（晒纹）—texture,grain拔模斜度—draftangle,removaltaper注塑件颜色及光泽—moldedcolor&gloss模具加工地—manufacturingfacility热流道供应商—manifoldmanufacturer,manifoldsupplier浇口位置—gatelocation/position浇口类型—gatetype产品标识—stampinformation,partidentification特殊要求—specialinstructions产品质量及外观要求PartQuality&Appearance尺寸及公差Dimension&Tolerance重要尺寸—criticaldimension,importantdim.,keydim.理论尺寸—nominaldimension实际尺寸—actualdimension公差—tolerance公差带—tolerancerange尺寸超差—dimensiondeviation接受（合格）—accept,OK拒绝（不合格）—reject,refuse,obsolete,NG让步接受—concession,specialadmit返工—re-work产品缺陷（较常见）Defects(normal)缩印—sinkmark,shrinkage飞边—flash,burr段差—mismatchdiscrepancy银丝纹—snakemarks,streak弯曲—warpage,distortion打不足（缺料）—shortshot熔接线—weldline产品外观PartAppearance第2页共19页第1页共19页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第2页共19页产品颜色—partcolor产品光泽—gloss皮纹粒度—grain常用词汇、词组及短语NormalWord,ShortSentence单边—perside双边—bothsides加入，添加—add,incorporate去除，取消—remove,cancel满足…的要求，符合，与…要求一致—accordingto,conformto,satisfy,meet要求，需要—require,need,demand确认—beapproved,agreedby…允许—permit,allow在…范围之内—within不可以，不允许，禁止—freefrom,prevent,avoid…，除非有另指—…unlessotherwisespecified…或少于—…orless自动化运作—automaticoperation未注尺寸（详细形状）见三维造型Nondimensionedcontour(detailedshape)see3Dmodel.分型线上的...
