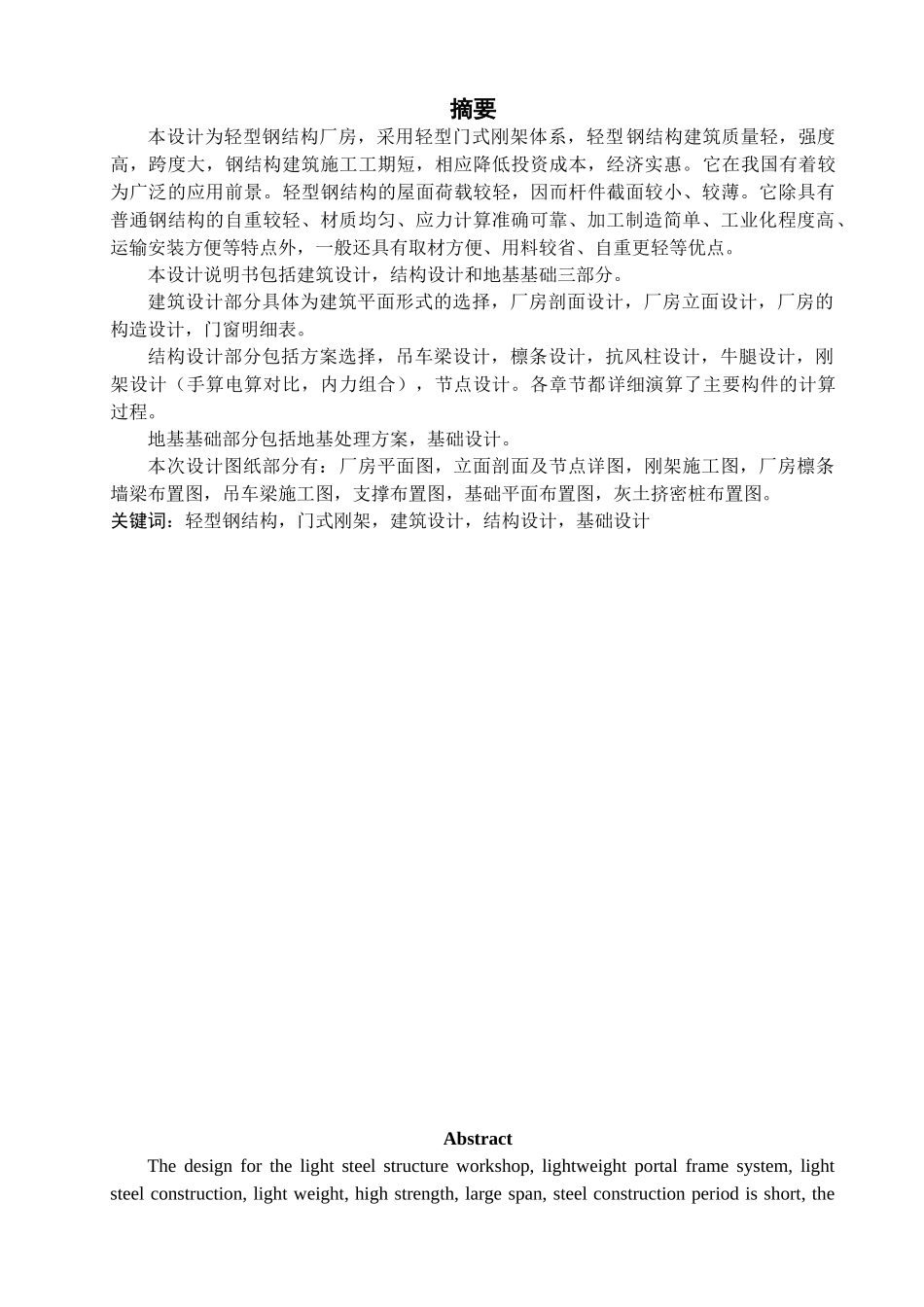

摘要本设计为轻型钢结构厂房，采用轻型门式刚架体系，轻型钢结构建筑质量轻，强度高，跨度大，钢结构建筑施工工期短，相应降低投资成本，经济实惠。它在我国有着较为广泛的应用前景。轻型钢结构的屋面荷载较轻，因而杆件截面较小、较薄。它除具有普通钢结构的自重较轻、材质均匀、应力计算准确可靠、加工制造简单、工业化程度高、运输安装方便等特点外，一般还具有取材方便、用料较省、自重更轻等优点。本设计说明书包括建筑设计，结构设计和地基基础三部分。建筑设计部分具体为建筑平面形式的选择，厂房剖面设计，厂房立面设计，厂房的构造设计，门窗明细表。结构设计部分包括方案选择，吊车梁设计，檩条设计，抗风柱设计，牛腿设计，刚架设计（手算电算对比，内力组合），节点设计。各章节都详细演算了主要构件的计算过程。地基基础部分包括地基处理方案，基础设计。本次设计图纸部分有：厂房平面图，立面剖面及节点详图，刚架施工图，厂房檩条墙梁布置图，吊车梁施工图，支撑布置图，基础平面布置图，灰土挤密桩布置图。关键词：轻型钢结构，门式刚架，建筑设计，结构设计，基础设计AbstractThedesignforthelightsteelstructureworkshop,lightweightportalframesystem,lightsteelconstruction,lightweight,highstrength,largespan,steelconstructionperiodisshort,thecorrespondinglowerinvestmentcosts,economicbenefits.Ithasmoreofawiderangeofapplications.Lightsteelroofloadslighter,andthereforesmallerbarsection,thin.Itadditiontoordinarysteel,lighterweight,materialuniformity,accurateandreliablestresscalculation,processingandmanufacturingsimple,highdegreeofindustrialization,transportation,andconvenientinstallation,thegeneralalsohaseasilyobtained,theuseofmaterialsthantheprovince,theadvantagesoflighterweight.Thedesignspecificationincludesarchitecturaldesign,structuraldesignandfoundationofthreeparts.Architecturalformspartofthespecificchoicefortheconstructionplane,plantprofiledesign,facadedesignplant,plantstructuraldesign,windowsanddoorsschedule.Partofstructuraldesignincludingprogramselection,designofcranebeam,purlindesign,windcolumndesign,bracketdesign,framedesign(hand-countedComputercontrast,internalforcecombination),nodedesign.Thechaptersaredetailedcalculationsofthemaincomponentsofthecalculation.Foundationpartoftheprogram,includinggroundtreatment,foundationdesign.Partofthisdesigndrawingsare:plantlayout,elevationprofilesandnodedetails,theframeconstructionplans,plantlayoutpurlinwallbeam,cranebeamconstructiondrawings,layoutsupport,basicfloorplan,soilcompactionpilelayoutmap.KeyWords:Lightsteelstructure，Portalframe，ArchitecturalDesign，Structuraldesign，foundationdesign目录第1章设计任务书………………………………………………………………….…….11.1工程概况……………………………………………………………………………...11.2设计原始资料………………………………………………………………………...11.3建筑设计任务及要求…………………………………………………………………11.4设计进度………………………………………………………………………………2第2章建筑设计…….…………………………………………………………………….32.1厂房平面设计………………………………………………………….…………….32.2厂房剖面设计……………………………………….……………………………….42.3厂房立面设计………………………….…………………………………………….52.4厂房构造设计………….…………………………………………………………….52.5门窗细表………………………………………..……………………………………7第3章结构设计……………………………………...…………………………...………83.1材料选择……………………………………………………...
