镀锌钢绞线技术规范-国家电网公司VIP免费

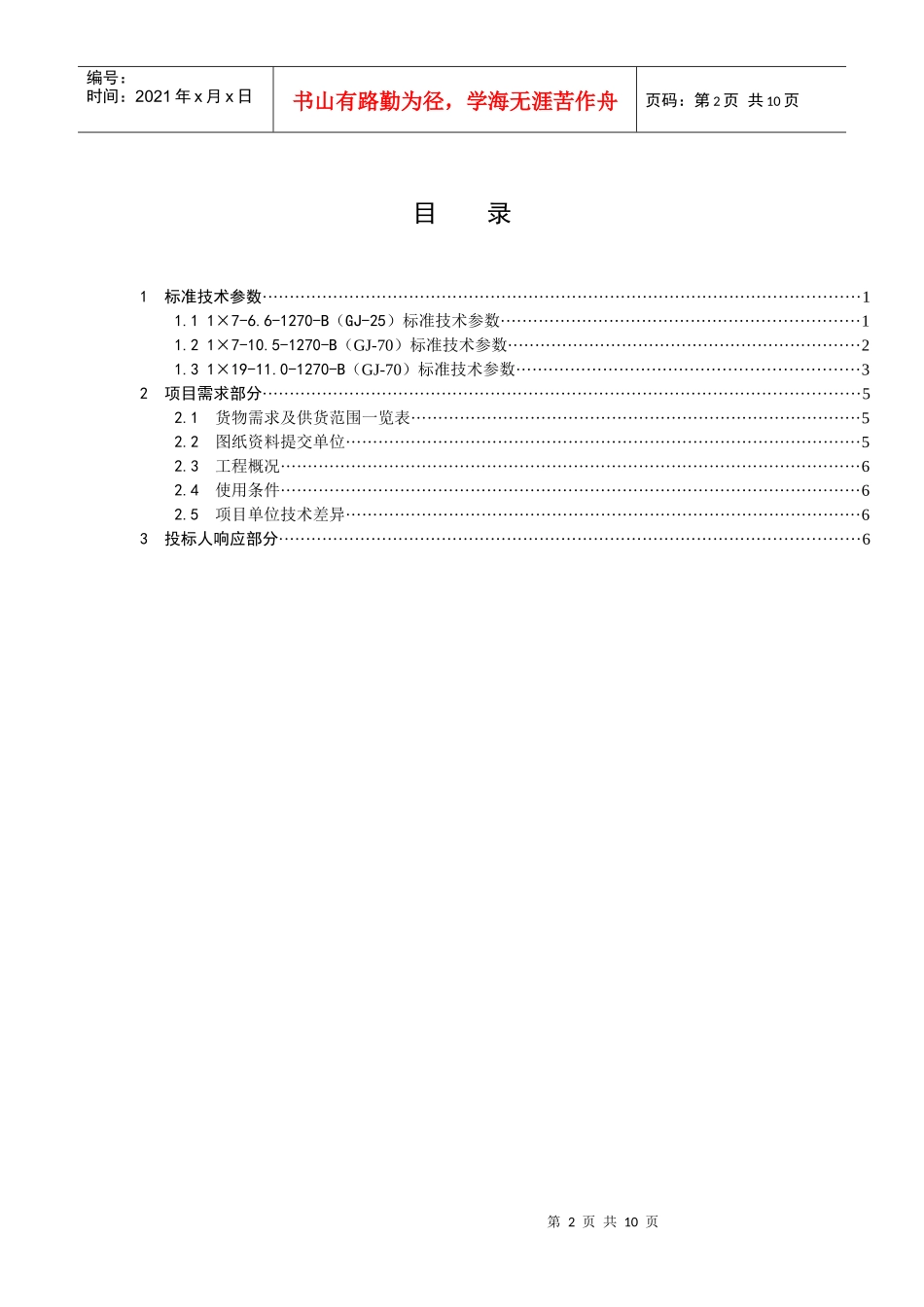

第1页共10页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第1页共10页国家电网公司物资采购标准镀锌钢绞线专用技术规范（编号：1402004-0000-02）国家电网公司二〇一〇年十月第2页共10页第1页共10页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第2页共10页目录1标准技术参数··············································································································11.11×7-6.6-1270-B（GJ-25）标准技术参数··································································11.21×7-10.5-1270-B（GJ-70）标准技术参数·································································21.31×19-11.0-1270-B（GJ-70）标准技术参数·······························································32项目需求部分··············································································································52.1货物需求及供货范围一览表···················································································52.2图纸资料提交单位·······························································································52.3工程概况···········································································································62.4使用条件···········································································································62.5项目单位技术差异·······························································································63投标人响应部分···········································································································6第3页共10页第2页共10页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第3页共10页说明：本技术规范为镀锌钢绞线专用技术规范，通用标准使用原《66kV/110kV导地线通用技术规范》采购标准（编号：1402000-0000-00）。1标准技术参数投标人应仔细阅读表7货物需求及供货范围一览表，并认真逐项填写所招标规格的镀锌钢绞线技术参数响应表中“投标人保证值”，不能以“响应”两字代替，不允许改动招标人要求值。如有偏差，请填写技术偏差表。1.11×7-6.6-1270-B（GJ-25）标准技术参数表1镀锌钢绞线技术参数响应表项目单位招标人要求值投标人保证值制造厂（商）（投标人填写）原产地（投标人填写）产品型号规格1×7-6.6-1270-B外观及表面质量绞线表面不应有肉眼可见的缺陷，如明显的压痕、划痕等，并不得有与良好商品不相称的任何缺陷（投标人填写）结构股数/直径根/mm7/2.20（投标人填写）计算截面积mm226.61（投标人填写）外径...
