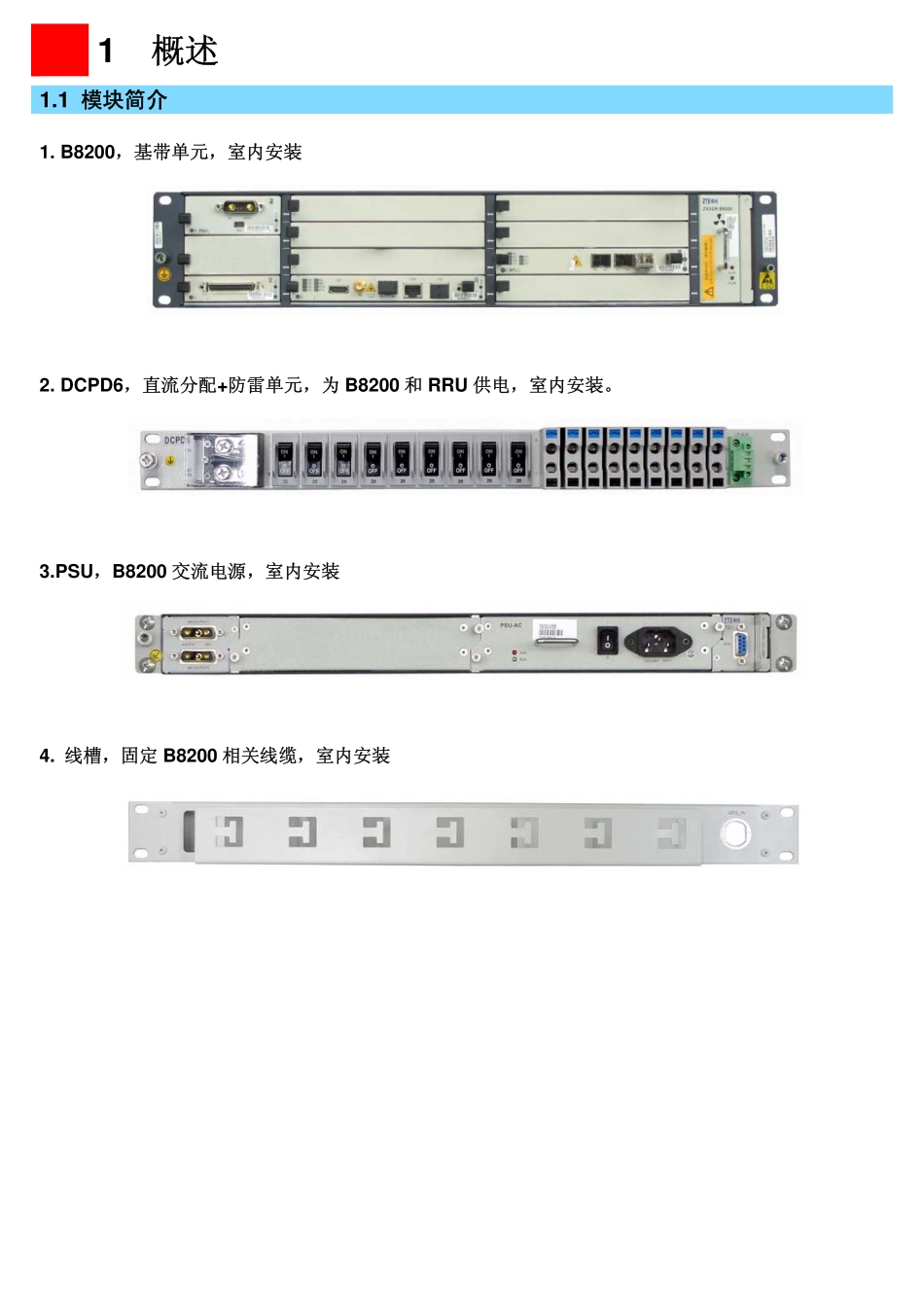

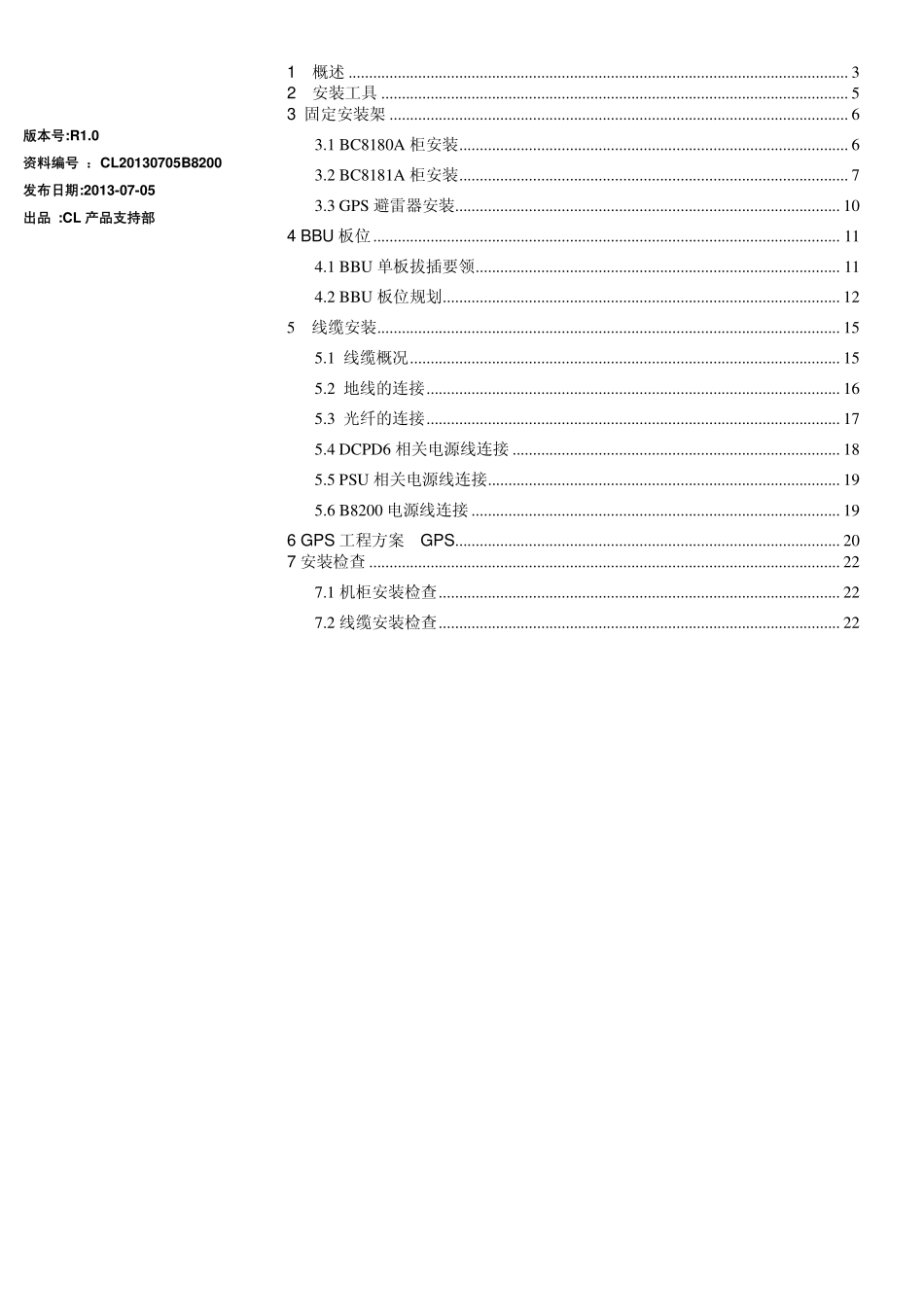

中国电信LTE项目B8200快速安装指南_R1.0_CH1概述..........................................................................................................................32安装工具..................................................................................................................53固定安装架................................................................................................................63.1BC8180A柜安装...............................................................................................63.2BC8181A柜安装...............................................................................................73.3GPS避雷器安装..............................................................................................104BBU板位..................................................................................................................114.1BBU单板拔插要领.........................................................................................114.2BBU板位规划.................................................................................................125线缆安装.................................................................................................................155.1线缆概况.........................................................................................................155.2地线的连接.....................................................................................................165.3光纤的连接.....................................................................................................175.4DCPD6相关电源线连接................................................................................185.5PSU相关电源线连接......................................................................................195.6B8200电源线连接..........................................................................................196GPS工程方案GPS..............................................................................................207安装检查...................................................................................................................227.1机柜安装检查..................................................................................................227.2线缆安装检查..................................................................................................22版本号:R1.0资料编号：CL20130705B8200发布日期:2013-07-05出品:CL产品支持部1概述1.1模块简介1.B8200，基带单元，室内安装2.DCPD6，直流分配+防雷单元，为B8200和RRU供电，室内安装。3.PSU，B8200交流电源，室内安装4.线槽，固定B8200相关线缆，室内安装1.2安装架简介1.BC8180A机柜（HUB柜），室内挂墙安装2.BC8181A机柜（简易安装架），室内挂墙/小龙门架安装3.19英寸龙门架5．BBU集中安装柜4.L型安装架2安装工具冲击钻地阻仪吸尘器万用表同轴电缆剥线器电源插板螺丝刀内六角扳手液压钳扳手介刀羊角锤钳子钢卷尺水平尺压线钳安全帽防护手套钢锯梯子3固定安装架3.1BC8180A柜安装1．根据工程设计图纸在墙上确定机柜的具体安装位置，用打孔模板在墙上标记出孔位。2．用电动冲击钻在标记的位置钻孔，安装膨胀螺栓3．将绝缘垫圈两片分开。4．将绝缘垫圈安装在机柜地角的螺丝孔上。注意绝缘垫圈两片厚度不同，安装方向必须一致。5．将4个地角分别用2颗螺丝固定在机柜背面。6.用膨胀螺栓将机柜固定在墙上。7．将相关模块固定在机柜对应位置。注：HUB柜若需竖直安装，应顺时针旋转90°安装，确保门向左开。必要时可以将HUB柜门拆除。1DCPD或PSU或空2...
