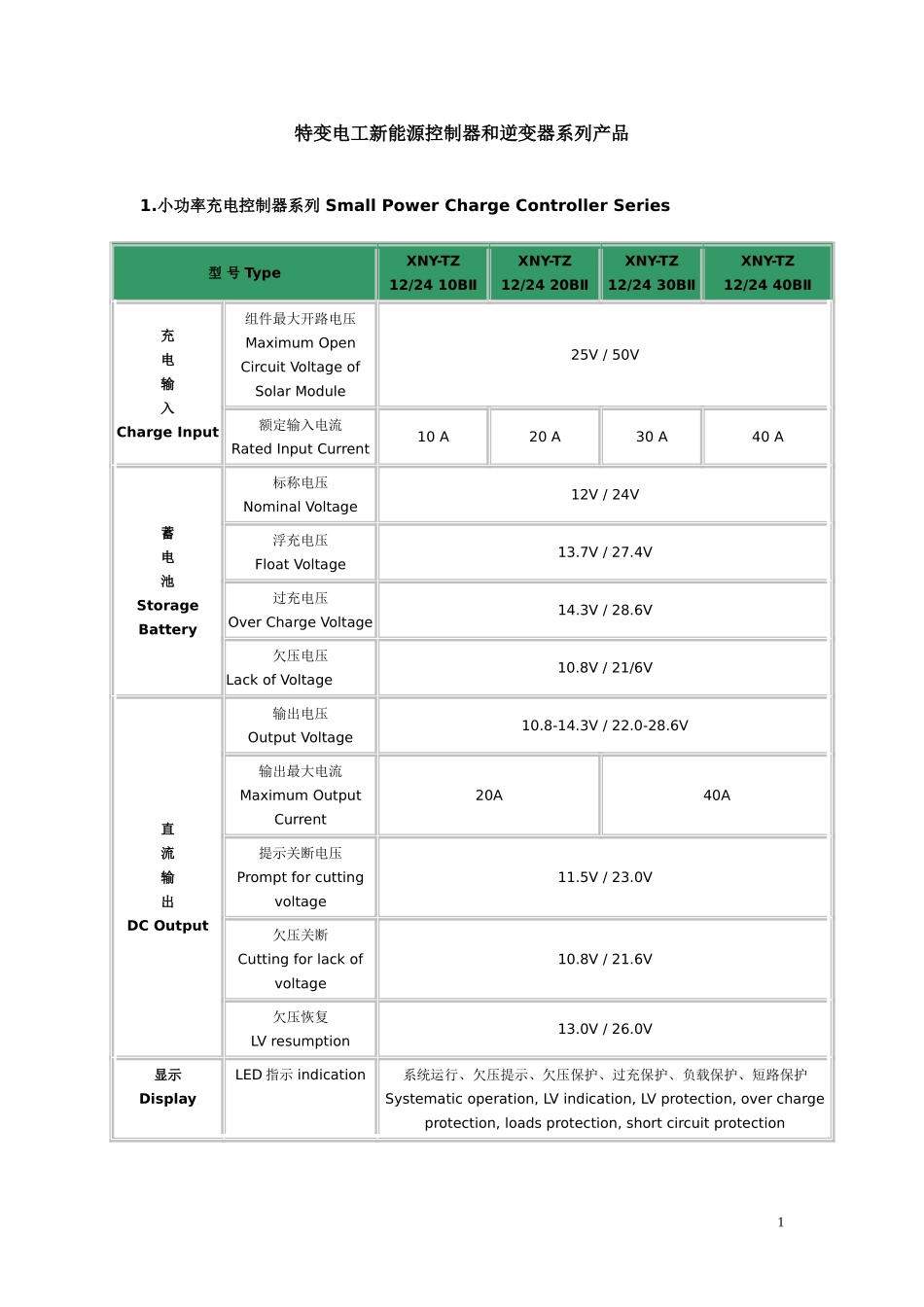

特变电工新能源控制器和逆变器系列产品1.小功率充电控制器系列SmallPowerChargeControllerSeries型号TypeXNY-TZ12/2410BⅡXNY-TZ12/2420BⅡXNY-TZ12/2430BⅡXNY-TZ12/2440BⅡ充电输入ChargeInput组件最大开路电压MaximumOpenCircuitVoltageofSolarModule25V/50V额定输入电流RatedInputCurrent10A20A30A40A蓄电池StorageBattery标称电压NominalVoltage12V/24V浮充电压FloatVoltage13.7V/27.4V过充电压OverChargeVoltage14.3V/28.6V欠压电压LackofVoltage10.8V/21/6V直流输出DCOutput输出电压OutputVoltage10.8-14.3V/22.0-28.6V输出最大电流MaximumOutputCurrent20A40A提示关断电压Promptforcuttingvoltage11.5V/23.0V欠压关断Cuttingforlackofvoltage10.8V/21.6V欠压恢复LVresumption13.0V/26.0V显示DisplayLED指示indication系统运行、欠压提示、欠压保护、过充保护、负载保护、短路保护Systematicoperation,LVindication,LVprotection,overchargeprotection,loadsprotection,shortcircuitprotection1液晶显示（可选）LCDdisplay(optional)充电电压、充电电流、蓄电池电压、蓄电池容量、输出电流Chargevoltage,chargecurrent,voltageofstoragebattery,capacityofstoragebattery,outputcurrent报警保护AlarmProtections输入反接保护Inputreverseconnectionprotection有Yes输出短路保护Outputshortcircuitprotection有Yes蓄电池欠压保护LVprotectionforstoragebattery有Yes蓄电池反接保护Reverseconnectionprotectionforstoragebattery有Yes其它项OtherItems防护等级Defendrank符合DINEN60529规定IP22或IP65标准IncompliancewithregulationsofDINEN60529andstandardsofIP22orIP65充电模式ChargemodePWM脉宽调制，恒流-恒压模式，蓄电池自动维护功能PWM,constantcurrent—constantvoltage,functionofautomaticprotectionforstoragebattery散热方式Radiatingmode自冷Automaticcooling工作模式Workingmode普通控制器、光控开+时控关、时控开+光控关Generalcontroller,lightingforon+timingforoff,timingforon+lightingforon自耗电Selfelectricityconsumption<10mA<15mA环境Environment使用环境温度Environmentaltemperature-10℃--45℃使用环境湿度Ambienthumidity0--90%，不结露nodew2海拔Altitude≤4500m体积Volume长*宽*高Length*Width*Height120*90*45180*110*55180*110*55180*110*552.小功率户用电源系列SmallPowerElectricalSourceSeriesforHomeUse型号TypeXNY-TNX12/24300LIII型XNY-TNX12/24500LIII型充电输入ChargeInput组件最大开路电压MaximumOpenCircuitVoltageofSolarModule25V/50V额定输入电流RatedInputCurrent25A/12.5A50A/25A蓄电池StorageBattery标称电压NominalVoltage12V/24V浮充电压FloatVoltage13.7V/27.4V过充电压OverChargeVoltage14.3V/28.6V欠压电压LackofVoltage10.8V/21/6V直流输出DCOutput输出电压OutputVoltage10.8-14.3V/22.0-28.6V输出最大电流MaximumOutputCurrent20A40A欠压关断Cuttingforlackofvoltage10.8V/21.6V欠压恢复LVresumption13.0V/26.0V交流输出电压OutputVoltageAC220V±10%3输出ACOutput输出波形OutputWaveShape修正正弦波ModifiedSineWave输出频率OutputFrequency50±1Hz额定输出功率RatedOutputPower300W600W转换效率ConversionEfficiency>94%显示DisplayLED显示充电指示、直流负载输出、欠压、过压等状态指示.ChargeIndication,DCLoadOutput,LackofVoltage,OverVoltageandotherstatusindication环境Environment温度Temperature-10℃—45℃湿度Humidity0—90%，不结露nodew海拔Altitude≤4500m外形Appearance参考重量ReferenceWeight30Kg（不带蓄电池）NotincludingStorageBattery参考尺寸ReferenceDimension430*320*1603.小功率逆变器系列SmallPowerInverterSeries型号TypeXNY-NS48V1KBIXNY-NS24V600BI直流输入DCInput额定输入电压Ratedinputvoltage48V24V额定输入电流Ratedinputcurrent19A23A输入直流电压允许范围AllowedinputDCvoltagescope42.7V—58V21.3V—29V4开机电压范围Voltagescopeofstartingupequipments47V—58V23.5V—29...
