格天光电3030LED规格书VIP专享VIP免费

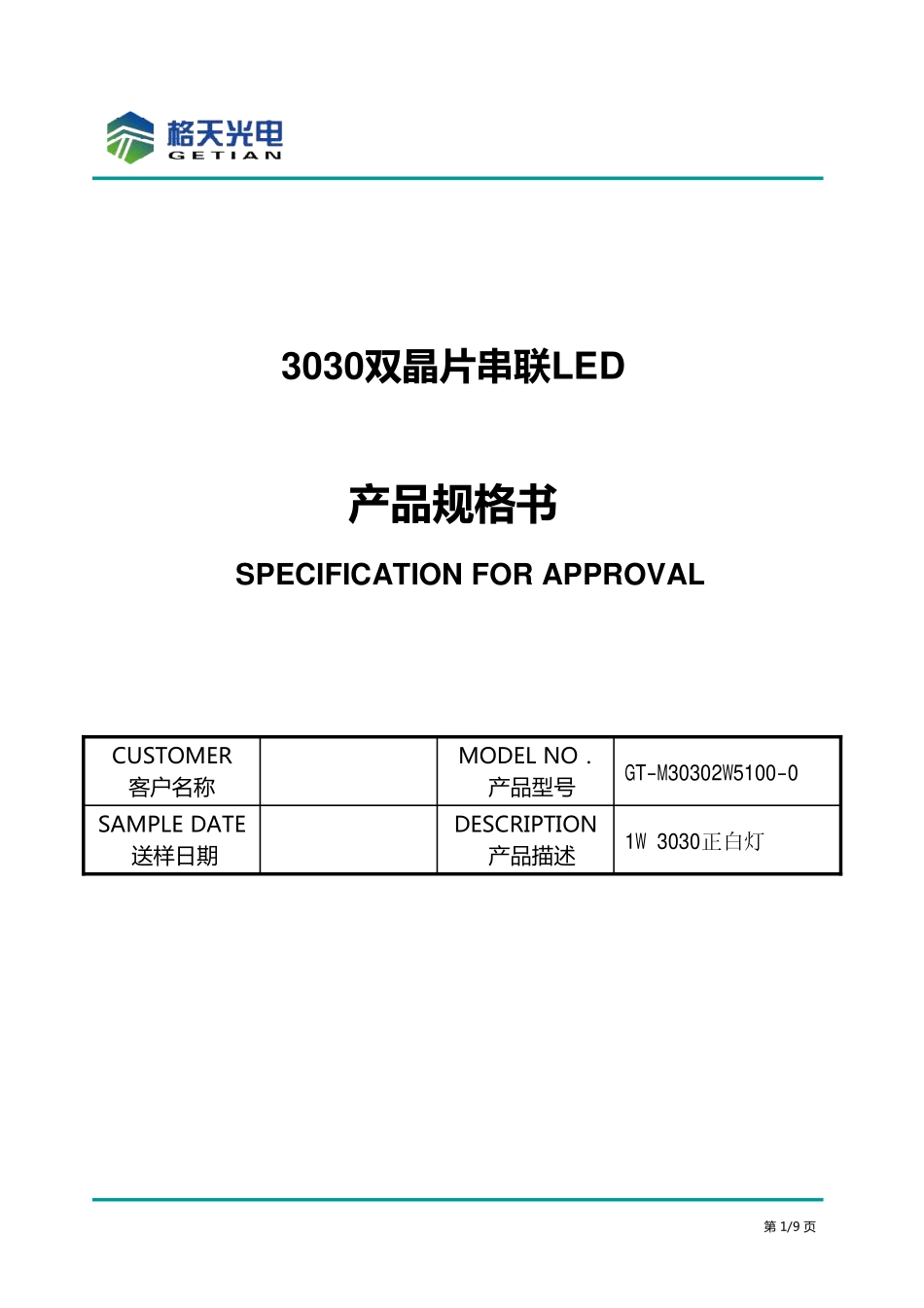

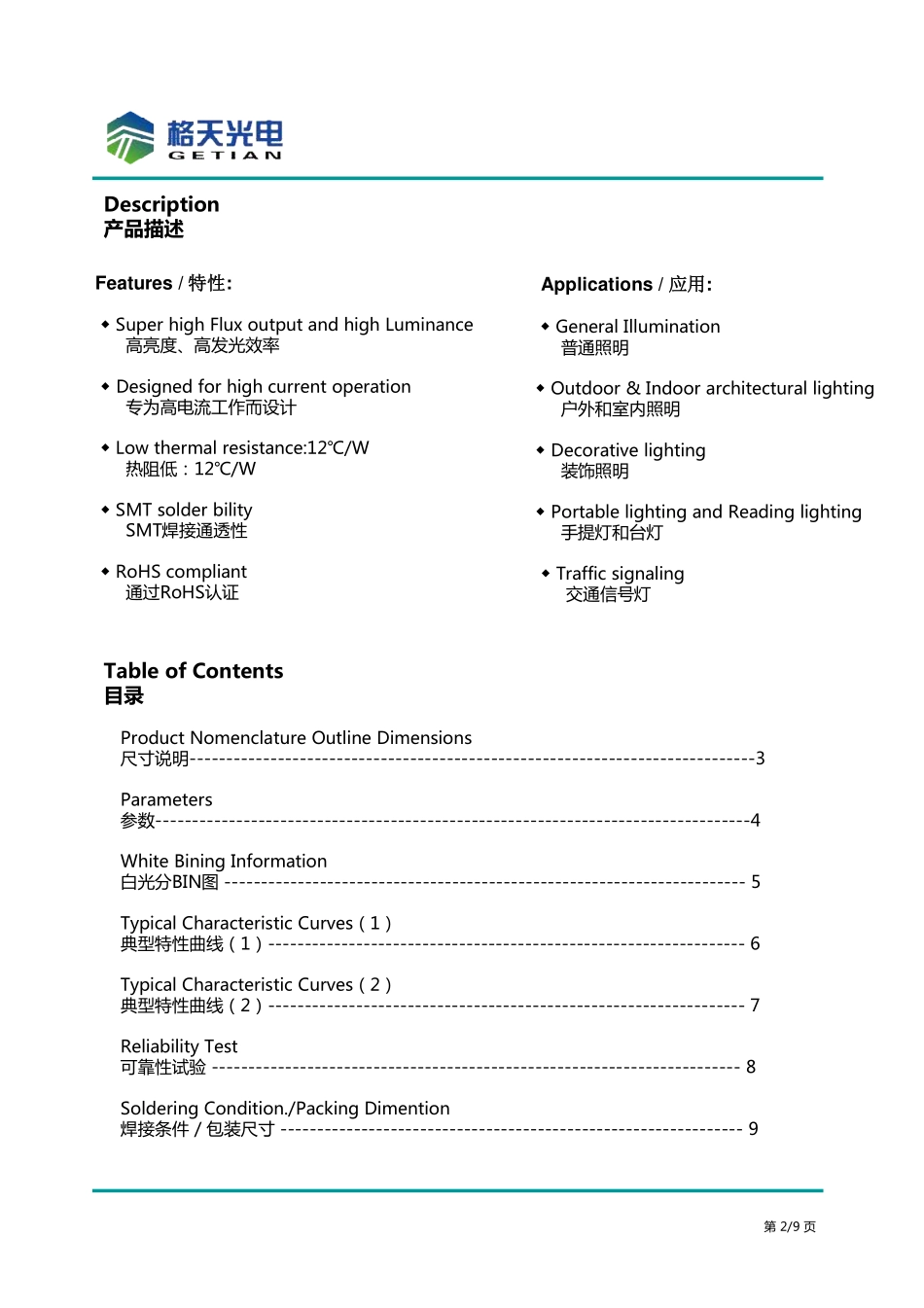

1W3030正白灯DESCRIPTION产品描述SAMPLEDATE送样日期GT-M30302W5100-0MODELNO．产品型号CUSTOMER客户名称3030双晶片串联LED产品规格书SPECIFICATIONFORAPPROVAL第1/9页Description产品描述Features/特性:◆SuperhighFluxoutputandhighLuminance高亮度、高发光效率◆Designedforhighcurrentoperation专为高电流工作而设计◆Lowthermalresistance:12℃/W热阻低：12℃/W◆SMTsolderbilitySMT焊接通透性◆RoHScompliant通过RoHS认证Applications/应用:◆GeneralIllumination普通照明◆Outdoor&Indoorarchitecturallighting户外和室内照明◆Decorativelighting装饰照明◆PortablelightingandReadinglighting手提灯和台灯◆Trafficsignaling交通信号灯TableofContents目录ProductNomenclatureOutlineDimensions尺寸说明-----------------------------------------------------------------------------3Parameters参数---------------------------------------------------------------------------------4WhiteBiningInformation白光分BIN图-----------------------------------------------------------------------5TypicalCharacteristicCurves（1）典型特性曲线（1）-----------------------------------------------------------------6TypicalCharacteristicCurves（2）典型特性曲线（2）-----------------------------------------------------------------7ReliabilityTest可靠性试验------------------------------------------------------------------------8SolderingCondition./PackingDimention焊接条件/包装尺寸---------------------------------------------------------------9第2/9页OutlineDimensions尺寸说明1、DomeType支架尺寸规格2、Circuitdiagram内部电路芯片排列方式INRERNALCIRCUITDIAGRAM(内部电路图)Anode(正极)Cathode(负极)Notes注释：1.Alldimensionsareinmillimeters.(tolerance:±0.2)所有的尺寸都以毫米为单位(公差：±0.2)；2.DimensionScale:1:1尺寸比例为：1：1。*Theappearanceandspecificationsoftheproductmaybechangedforimprovementwithoutnotice.产品外形和说明书如有更新，恕不另行通知！第3/9页℃/W~12~RθJ-BThermalResistance/热阻deg.~125~2θ1/2ViewAngle/发光角度W1.02~0.90PDPowerDissipation/耗散功率V6.8~6VFForwardVoltage/正向电压~~70~RaCRI/显色指数K6020~5310CCTCorrelatedColorTemperature相关色温lm110~100φvLuminousFlux/光通量Unit单位Max最大值Typ典型值Min最小值Symbol符号Parameter参数Parameters参数Electrical-OpticalCharacteristicsatIF=150mA，Ta=25℃光电特性IF=150mATa=25℃Notdesignedforreverseoperation禁止反向驱动VRReverseVoltage反向电压mA1000IFPDCPulseCurrent(@1KHz,10%dutycycle)直流脉冲电流(@1KHz,10%占空比)mV/℃-5~TemperatureCoefficientofvoltage电压温度系数~±2,000VHBM~ESDSensitivity/静电击穿电压℃0~+60TstgStorageTemperature/储存温度℃-40~+60ToprOperatingTemperature/工作温度℃115TjJunctionTemperature/结点温度mA150IFForwardCurrent/正向电流Unit/单位Value/数值Symbol/符号Parameter/参数AbsoluteMaximumRatings极限参数Notes注释：.ToleranceofLuminousFluxis±3%.光通量的公差为±3%。2.ToleranceofForwardVoltageis±0.1V.正向电压的公差为±0.1V。第4/9页WhiteBiningInformation白光分BIN图第5/9页TypicalCharacteristicCurves(1)典型特性曲线（1）1.TypicalLightDistributionCurve典型的光强分布曲线RelativeIntensity(%)相对强度（%）2.TypicalLight-EmittingAngleRadiationPattern典型发光角度辐射图TypicalPolarRadiationPatternforWhite3030白光3030灯珠典型发光角度辐射图AngularDisplacement(degrees)角位移(degrees)3.ForwardCurrentvs.RelativeLuminousFluxCurve正向电流与相对光通量曲线图NormalizedLuminousFlux标准光通量4.ForwardCurrentDeratingCurve,DeratingbasedonTimax=125℃正向电流降额曲线,以Timax=125℃为基准5.ElectricalCharacteristicsCurv...
