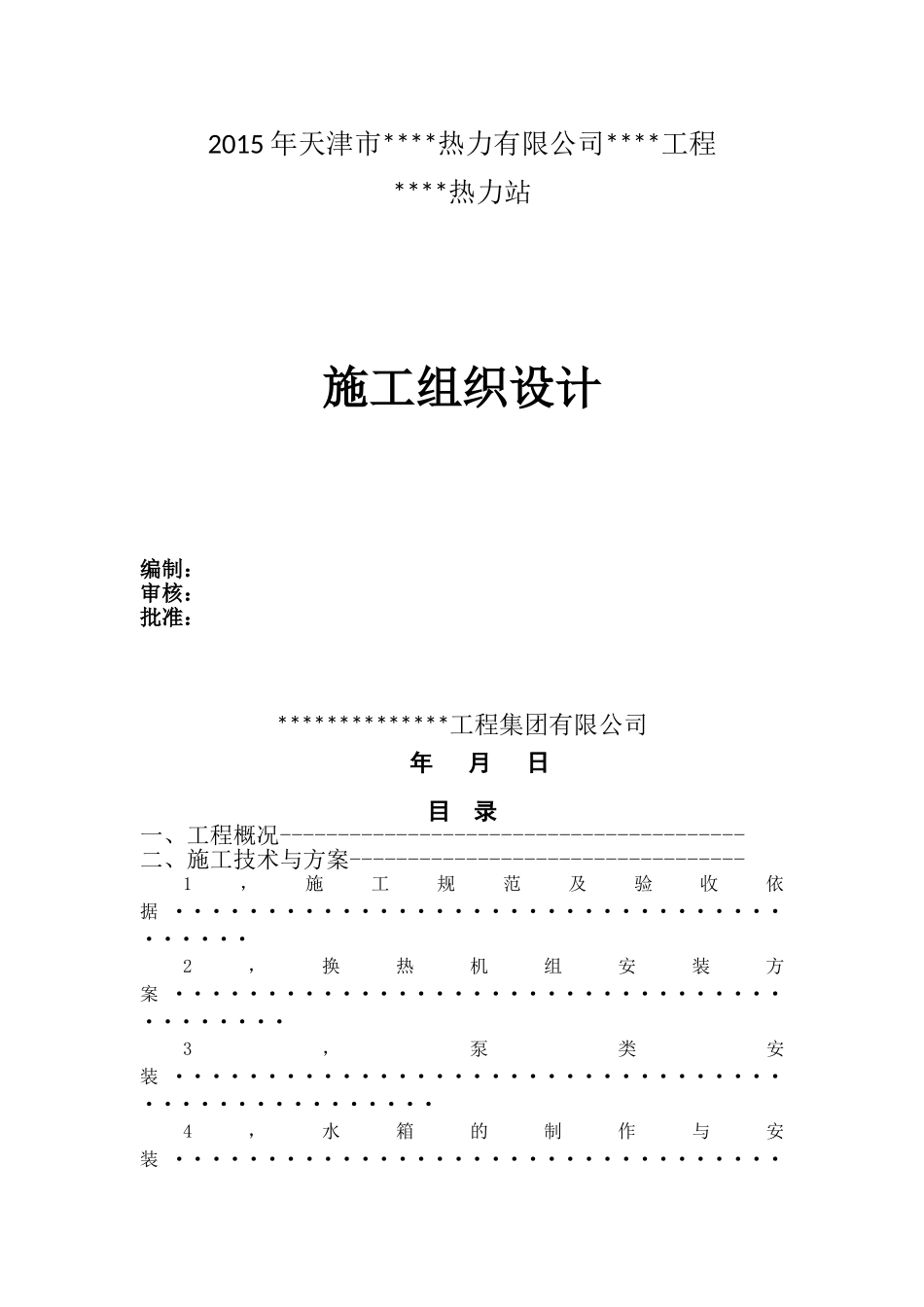

2015年天津市****热力有限公司****工程****热力站施工组织设计编制：审核：批准：**************工程集团有限公司年月日目录一、工程概况----------------------------------------二、施工技术与方案----------------------------------1，施工规范及验收依据·······································2，换热机组安装方案·········································3，泵类安装·················································4，水箱的制作与安装·········································5，管道及附件安装方案·······································6，阀门、压力仪表安装·······································7，配电柜安装···············································8，除锈防腐·················································9，试压·····················································10，保温····················································11，系统调试················································三、施工组织计划与措施------------------------------1，开工前需要做好的施工准备工作·····························2，项目管理人员配置及劳动力计划·····························3，拟投入的机械、设备及进场计划4，质量计划与保证措施·······································5，进度计划及保证措施·······································6，安全文明施工管理·········································2015年天津市****热力有限公司**供热工程****热力站施工组织设计一、工程概况本工程为2015年天津市****热力有限公司**供热工程****热力站，施工地点位于西青区中北镇，供热主体为澜湾广场和澜湾花园，分一期和二期工程两部分，工程内容包括设计安装全自动换热机组3套，一期2套换热机组，设计热负荷为Q6098kw，二期1套机组设计热负荷为Q480kw；管道安装包含螺旋焊接钢管ø325*7/50米，ø273*6/110米，ø219*6/10米，直缝焊接钢管DN150/140米，DN125/10米，DN100/100米，DN80~DN25/107米，管件安装包含阀门、弯头、变径等；设备系统其他安装包含循坏水泵2台，补水泵2台，除污器3台，2*2*1.5水箱1个等；以及设备相关电气、仪表系统的所有安装。二、施工技术与方案1，施工规范及验收依据《板式换热器》GB/T16409《城市热力网设计规范》CJJ34-2002《工艺设备及管道绝热工程设计规范》GB50264-1997《输送流体用无缝钢管》GB/T8163-1999《现场设备、工业管道焊接工程施工及验收规范》GB50236-98《工业金属管道工程施工及验收规范》GB50235-1997《工业设备及管道绝热工程机验收规范》GBJ126-1989《工业自动化仪表工程施工及验收规范》GB93-86《室内热力管道支吊架》94R402《压缩机、风机、泵安装工程施工及验收规范》GB50275-982，换热机组安装方案（1）、换热机组到货验收、设备基础验收：设备到货后的验收：对板换进行外观检查应做到如下标准：螺栓无松动、棱角无碰撞、板换进出口封闭严密、板换换热片排列整齐、胶垫无外露、板换型号与图纸要求符合、其他资料齐备(出厂合格证、技术参数等)，换热片前后尺寸一致，无异常变形等。设备吊运就位前的基础验收：根据图纸确定基础位置，测定标高，使用侧尺测定...
