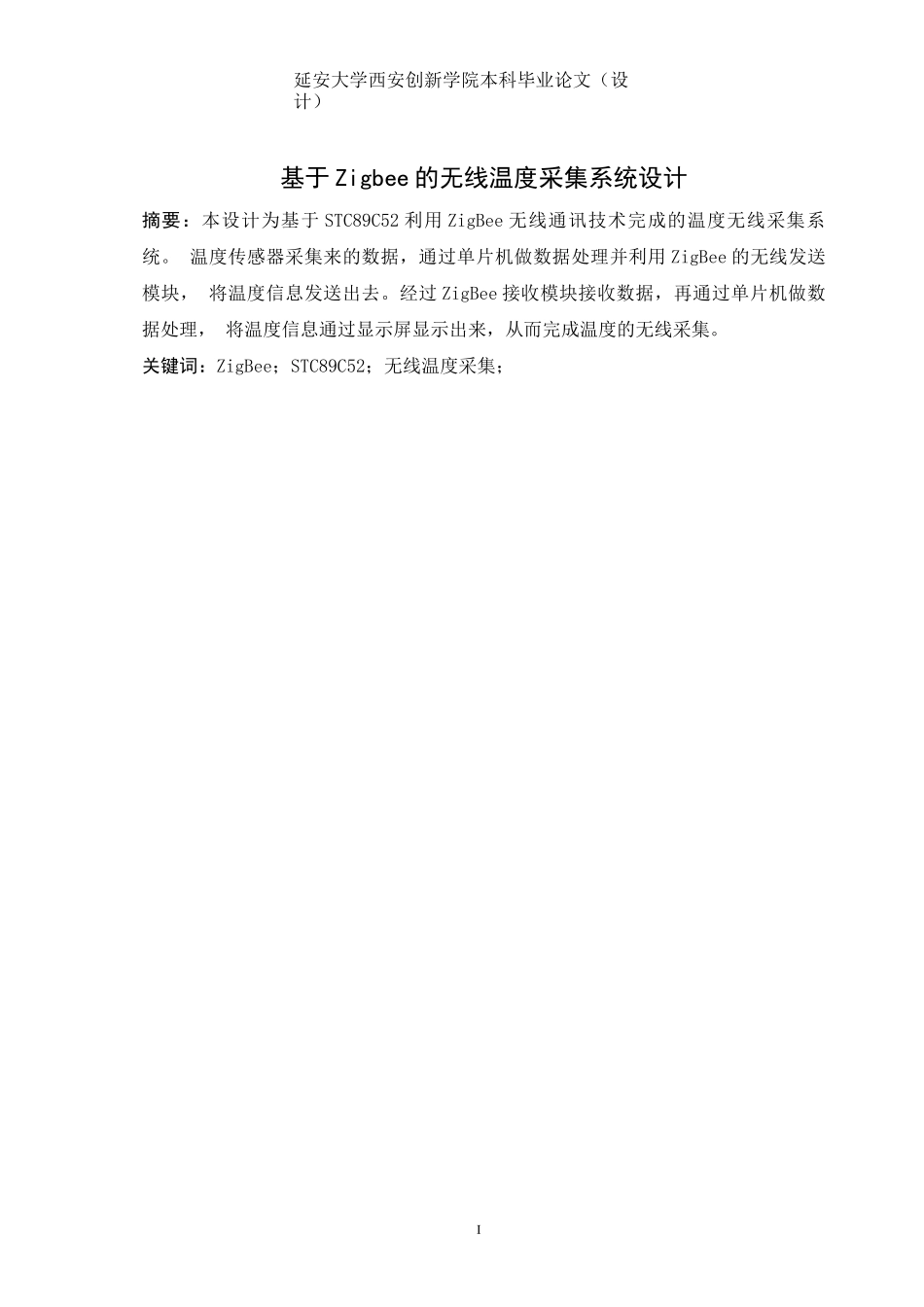

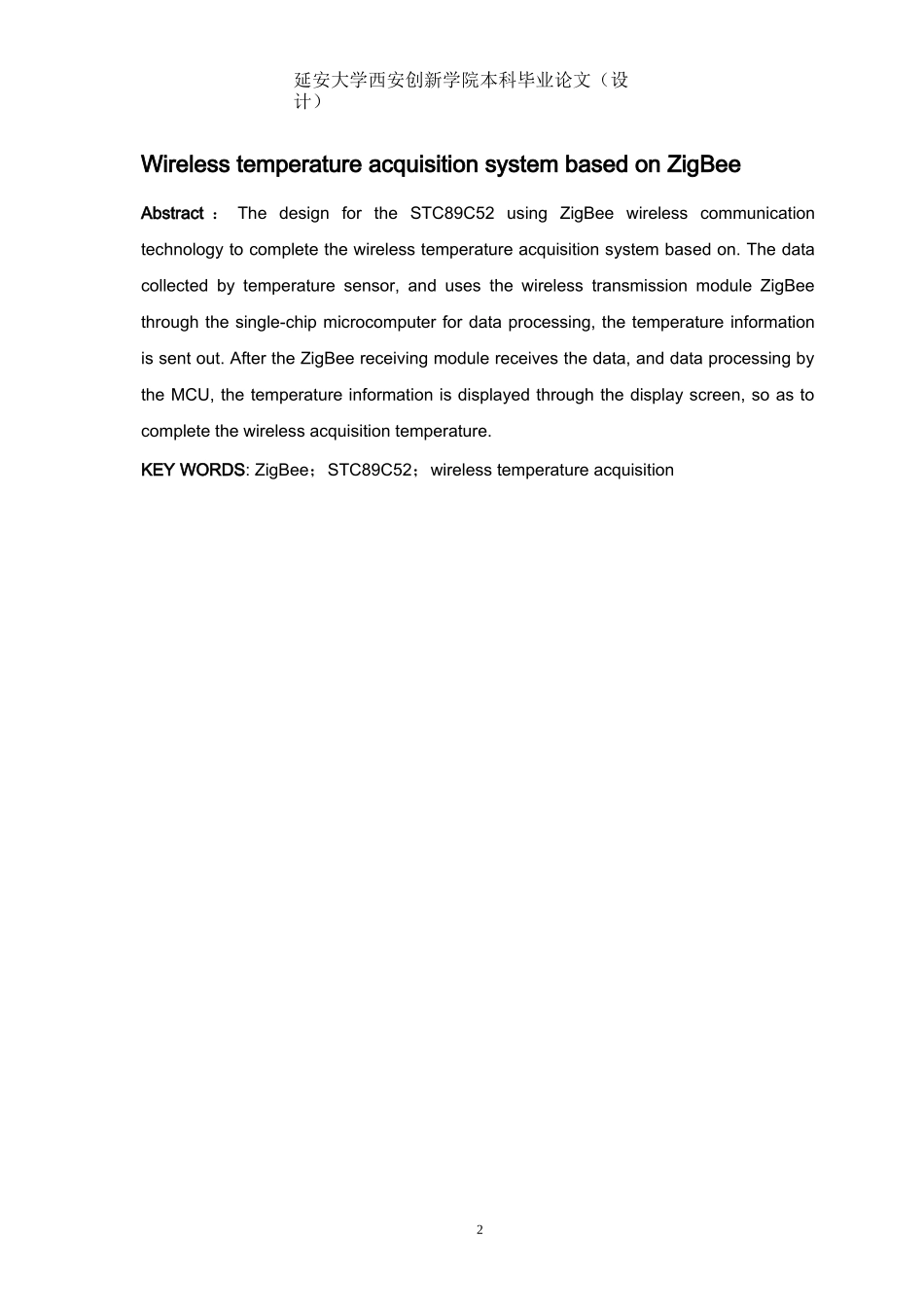

I延安大学西安创新学院本科毕业论文（设计）基于 Zigbee 的无线温度采集系统设计摘要：本设计为基于 STC89C52 利用 ZigBee 无线通讯技术完成的温度无线采集系统。 温度传感器采集来的数据，通过单片机做数据处理并利用 ZigBee 的无线发送模块， 将温度信息发送出去。经过 ZigBee 接收模块接收数据，再通过单片机做数据处理， 将温度信息通过显示屏显示出来，从而完成温度的无线采集。关键词：ZigBee；STC89C52；无线温度采集；延安大学西安创新学院本科毕业论文（设计）2Wireless temperature acquisition system based on ZigBeeAbstract ： The design for the STC89C52 using ZigBee wireless communication technology to complete the wireless temperature acquisition system based on. The data collected by temperature sensor, and uses the wireless transmission module ZigBee through the single-chip microcomputer for data processing, the temperature information is sent out. After the ZigBee receiving module receives the data, and data processing by the MCU, the temperature information is displayed through the display screen, so as to complete the wireless acquisition temperature.KEY WORDS: ZigBee；STC89C52；wireless temperature acquisitionI延安大学西安创新学院本科毕业论文（设计）目 录1 概述 .............................................................. 11.1 选题背景 ..................................................... 11.2 选题研究的目的和意义 ......................................... 12 方案选择 .......................................................... 12.1 传感器的选择 ................................................ 22.2 主控部分的选择 .............................................. 22.3 系统整体介绍 ................................................ 33 系统的硬件设计 .................................................... 33.1 传感器 DS18B20 温度传感器 ..................................... 33.2 ZigBee 协议 .................................................. 43.2.1 ZigBee 概述 ......
