自动扶梯的设计VIP免费

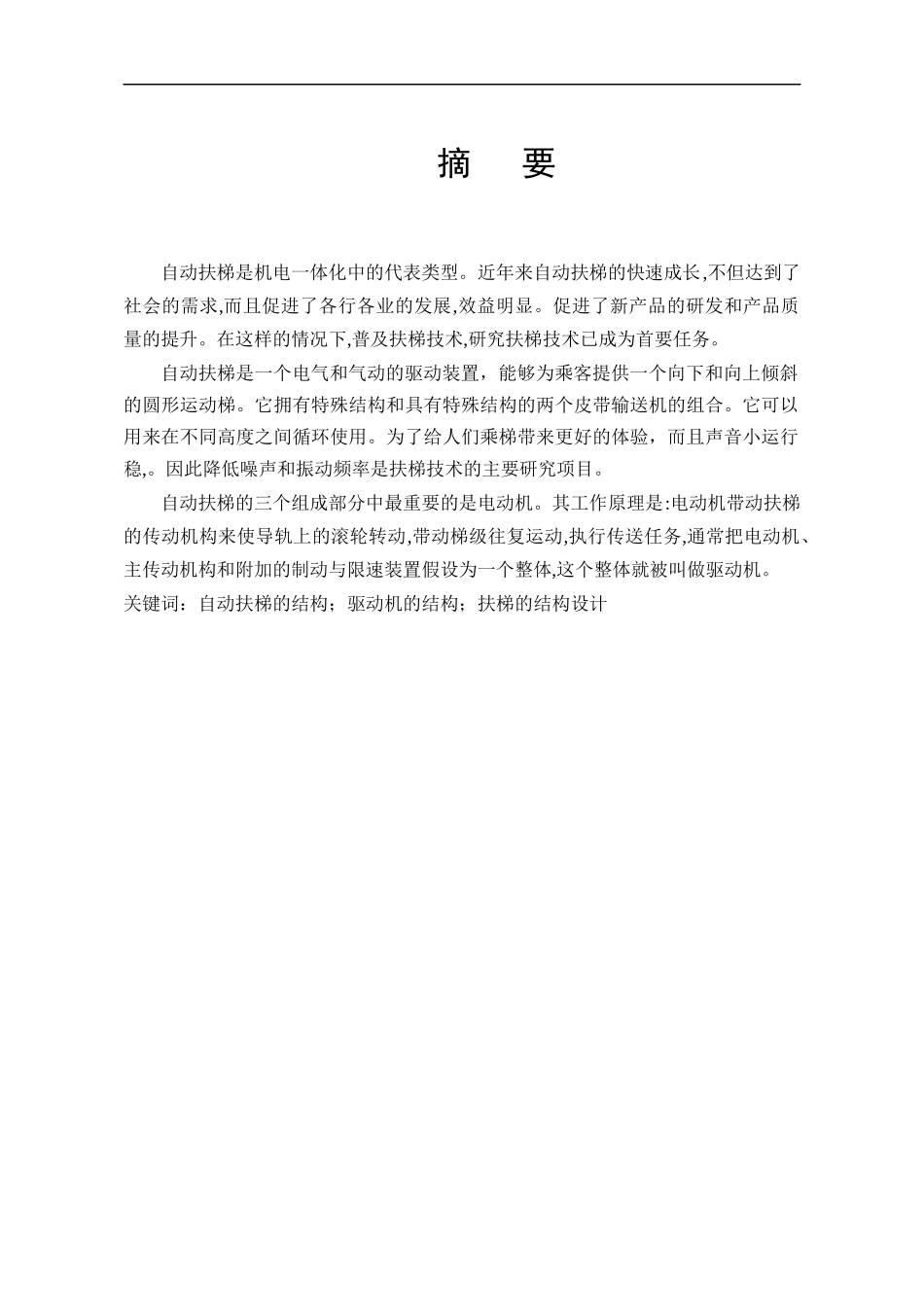

摘 要自动扶梯是机电一体化中的代表类型。近年来自动扶梯的快速成长,不但达到了社会的需求,而且促进了各行各业的发展,效益明显。促进了新产品的研发和产品质量的提升。在这样的情况下,普及扶梯技术,研究扶梯技术已成为首要任务。自动扶梯是一个电气和气动的驱动装置，能够为乘客提供一个向下和向上倾斜的圆形运动梯。它拥有特殊结构和具有特殊结构的两个皮带输送机的组合。它可以用来在不同高度之间循环使用。为了给人们乘梯带来更好的体验，而且声音小运行稳,。因此降低噪声和振动频率是扶梯技术的主要研究项目。自动扶梯的三个组成部分中最重要的是电动机。其工作原理是:电动机带动扶梯的传动机构来使导轨上的滚轮转动,带动梯级往复运动,执行传送任务,通常把电动机、主传动机构和附加的制动与限速装置假设为一个整体,这个整体就被叫做驱动机。关键词：自动扶梯的结构；驱动机的结构；扶梯的结构设计AbstractEscalator is a representative type in mechatronics. In recent years, the rapid growth of escalators has not only met the needs of the society, but also promoted the development of all walks of life with obvious benefits. The continuous formation of "escalator fever" will further promote the research and development of new products and the improvement of product quality. Under such circumstances, popularizing escalator technology and researching escalator technology have become the primary task.Escalator is an electric and pneumatic driving device, which can provide a circular movement ladder that inclines downward and upward for passengers. It has a special structure and a combination of two belt conveyors with a special structure. It can be used for recycling between different heights.In order to make passengers comfortable and not produce noise pollution around, the main requirements for escalators are smooth operation and low noise. Therefore, reducing noise and vibration frequency is the main research project of escalator technology.Escalator consists of power sour...
